Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

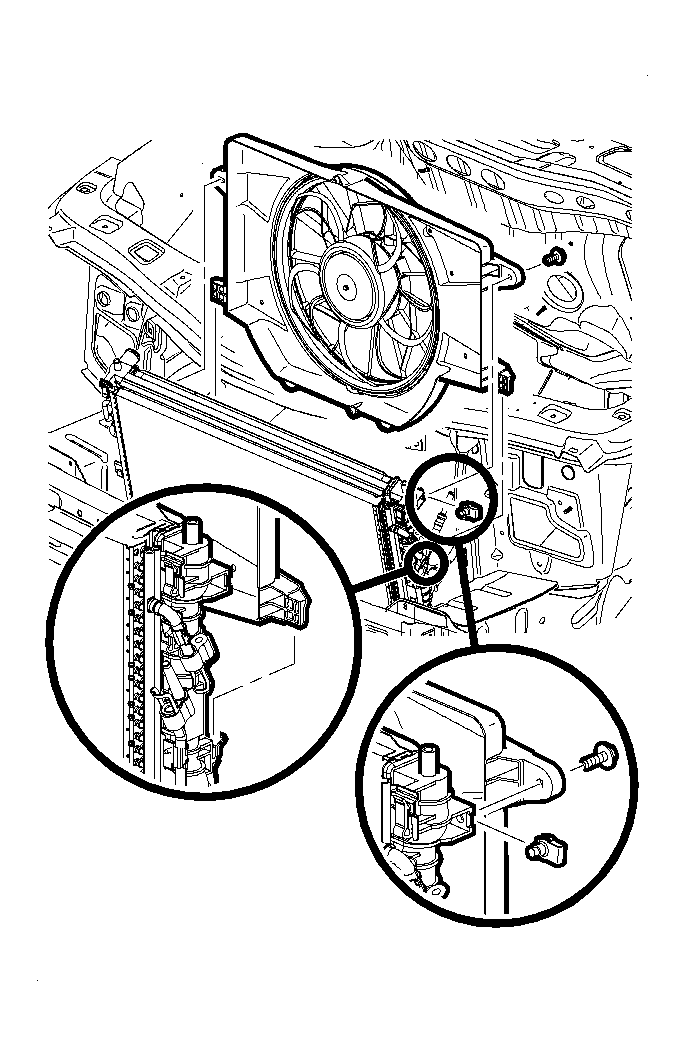

Fig 1: Installing Fan Assembly

Courtesy of GENERAL MOTORS CORP.

Install the fan assembly by guiding the lower tabs of the fan assembly into the corresponding radiator hooks.

Fig 2: Fan Assembly To Radiator Bolt

Courtesy of GENERAL MOTORS CORP.

Install the fan assembly to radiator bolts.
Install the lower radiator pins into the cradle brackets.

Fig 3: View Of CRFM Mounting Brackets To The Radiator Support

Courtesy of GENERAL MOTORS CORP.

Install the upper CRFM bracket assemblies.

Fig 4: Radiator Outlet (L61) Hose Clamp

Courtesy of GENERAL MOTORS CORP.

Install the radiator outlet hose.
Position the clamp at 5 o'clock.

Fig 5: Radiator Inlet Hose

Courtesy of GENERAL MOTORS CORP.

Install the radiator inlet hose.
Position the clamp at 6 o'clock.

Fig 6: View Of CRFM Closeout/Splash Panel To Condenser

Courtesy of GENERAL MOTORS CORP.

Install the condenser splash shield.

Fig 7: Battery Box Air Duct

Courtesy of GENERAL MOTORS CORP.

Install the battery box inlet air duct.

Fig 8: Clipping Transmission Cooler Lines To Fan Assembly

Courtesy of GENERAL MOTORS CORP.

Clip the transmission cooler lines to the fan assembly.

Fig 9: Clipping Engine Wire Harness To Fan Assembly

Courtesy of GENERAL MOTORS CORP.

Clip the engine wire harness to fan assembly.

Fig 10: Cooling Fan & Shroud (L61)

Courtesy of GENERAL MOTORS CORP.

Connect the fan motor to engine harness.
Install the front fascia. Refer to Front Fascia installation procedure in Body Front End.
Fill the cooling system. Refer to Draining and Filling Cooling System .
