Power Distribution Schematics

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

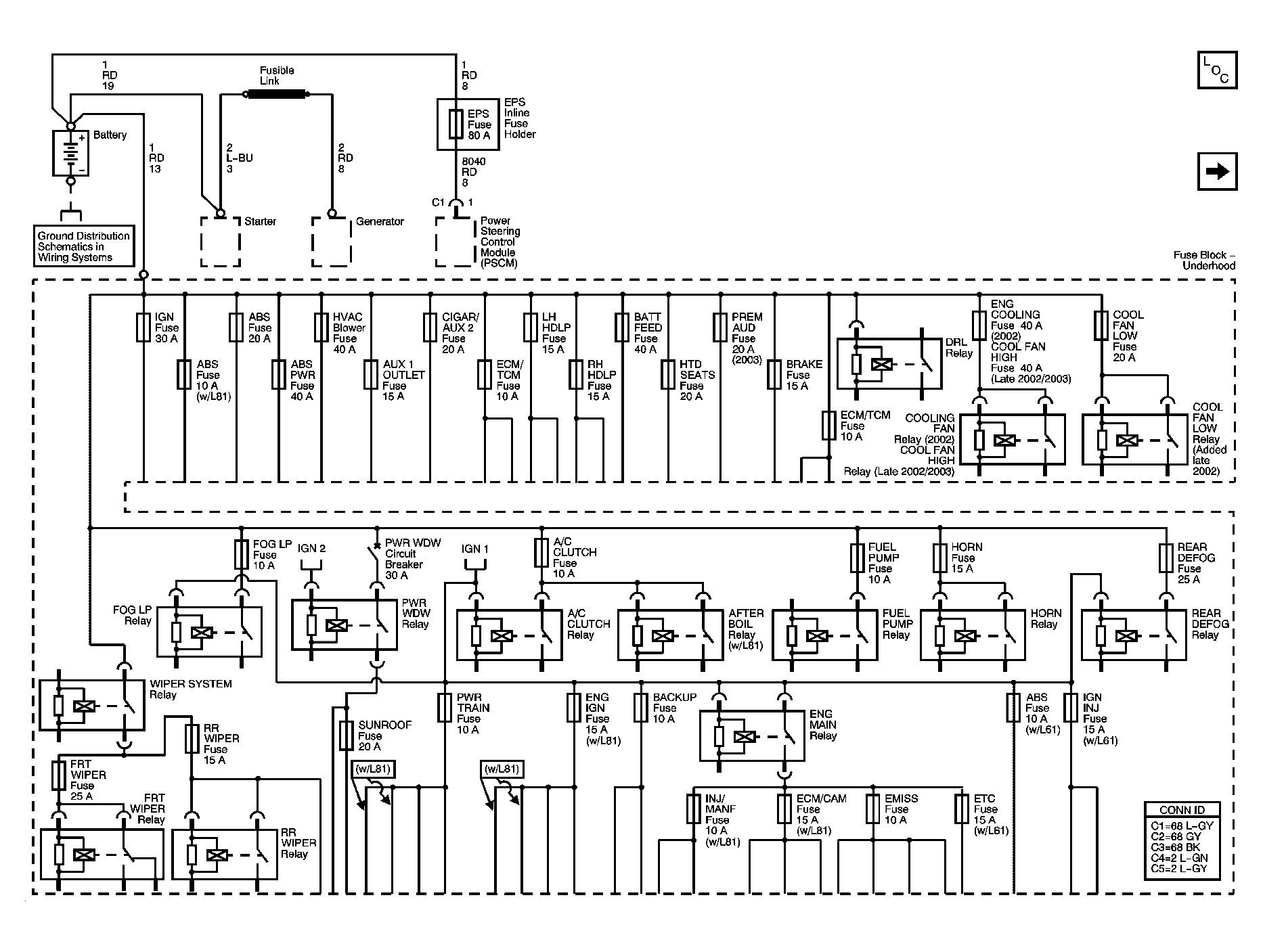

Fig 1: Battery Power to the Fuse Block, Starter, and Generator

Courtesy of GENERAL MOTORS CORP.

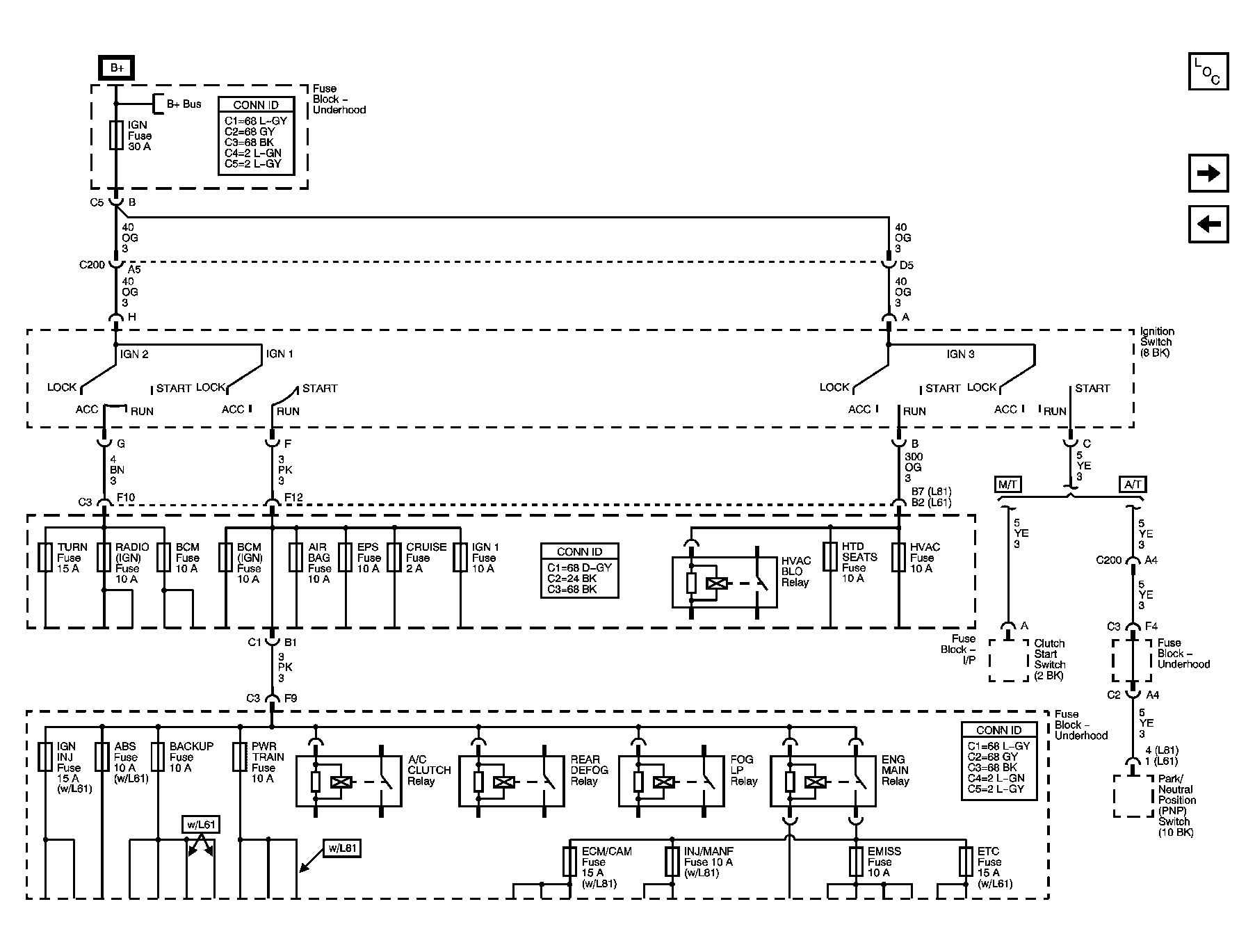

Fig 2: Ignition Switch

Courtesy of GENERAL MOTORS CORP.

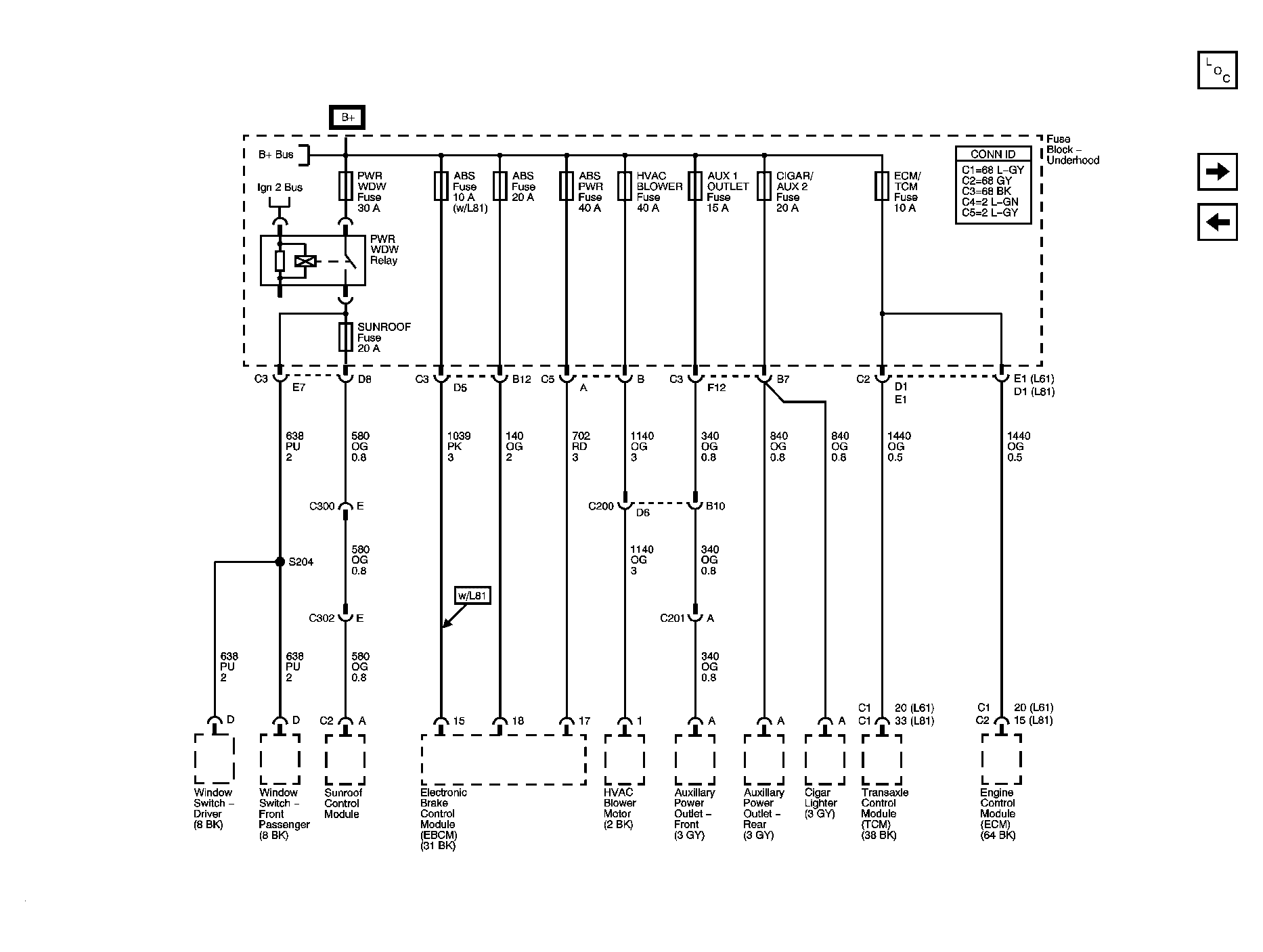

Fig 3: PWR WDW, SUNROOF, ABS, ABS PWR, HVAC BLOWER, AUX1 OUTLET, CIGAR/AUX2, ECM/TCM Fuses & PWR WDW Relay

Courtesy of GENERAL MOTORS CORP.

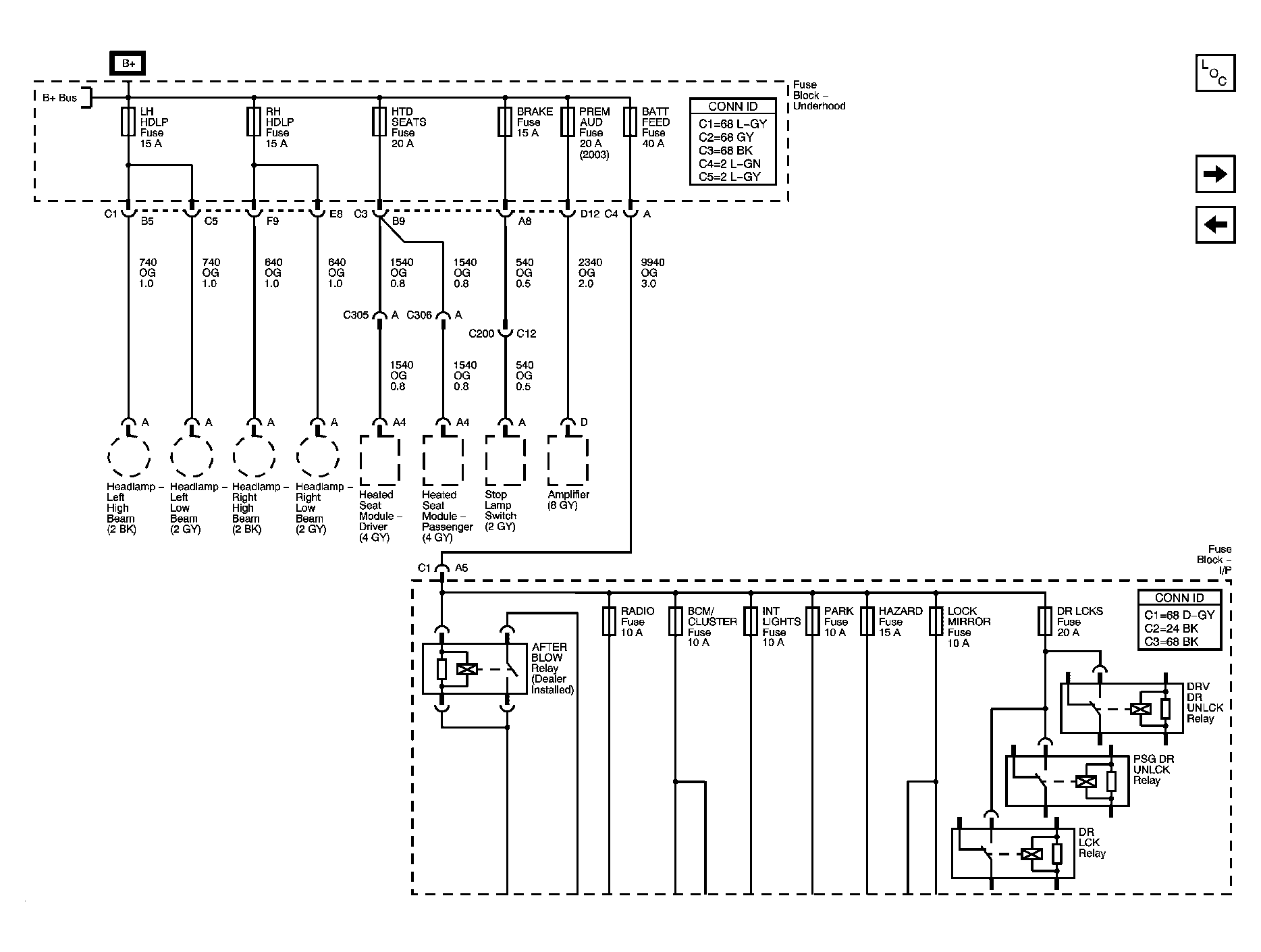

Fig 4: LH HDLP, RH HDLP, HTD SEATS, BRAKE, PREM AUD & BATT FEED Fuses

Courtesy of GENERAL MOTORS CORP.

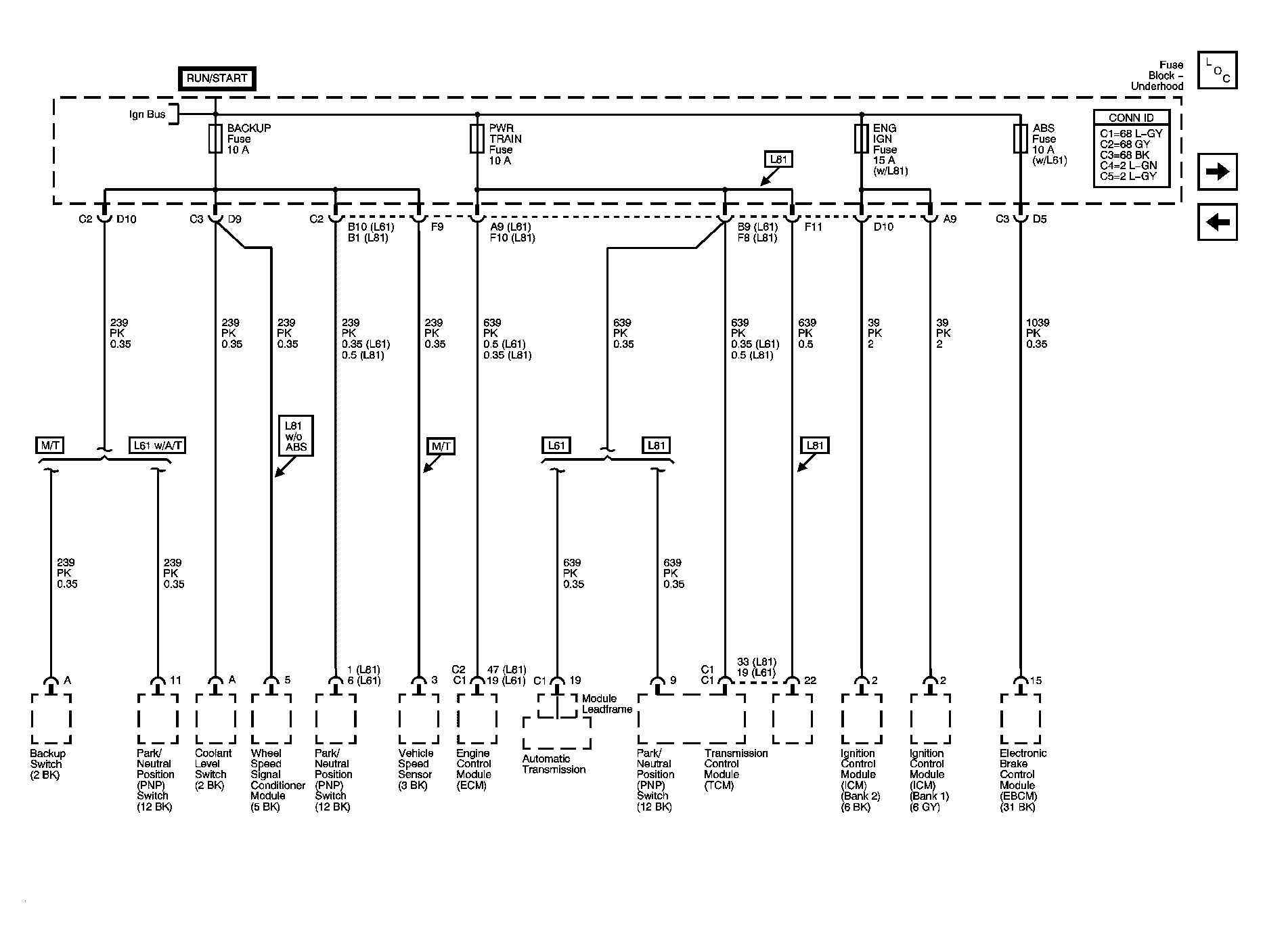

Fig 5: BACKUP, PWR TRAIN, ENG IGN & ABS Fuses

Courtesy of GENERAL MOTORS CORP.

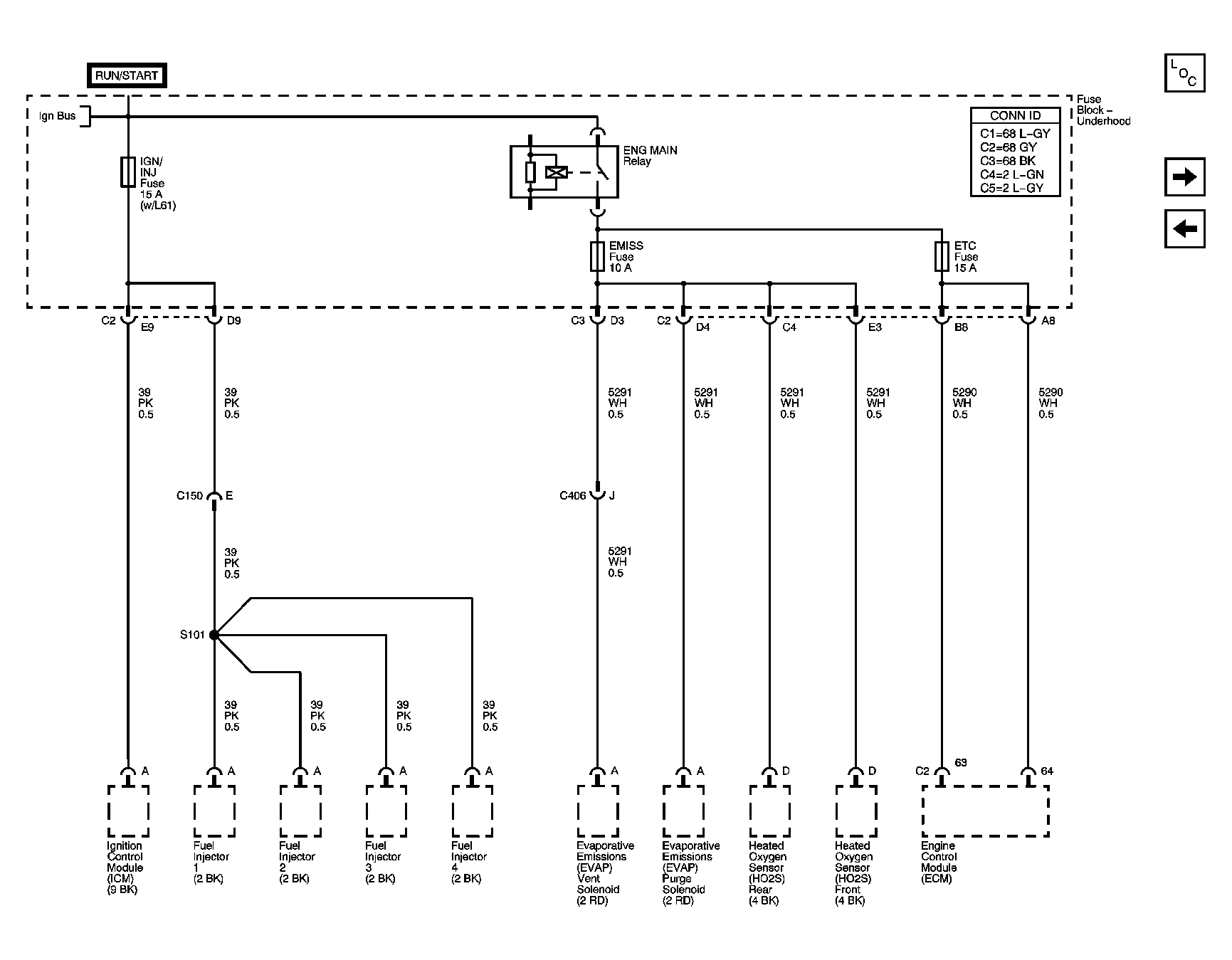

Fig 6: IGN INJ, EMISS & ETC Fuses - L61

Courtesy of GENERAL MOTORS CORP.

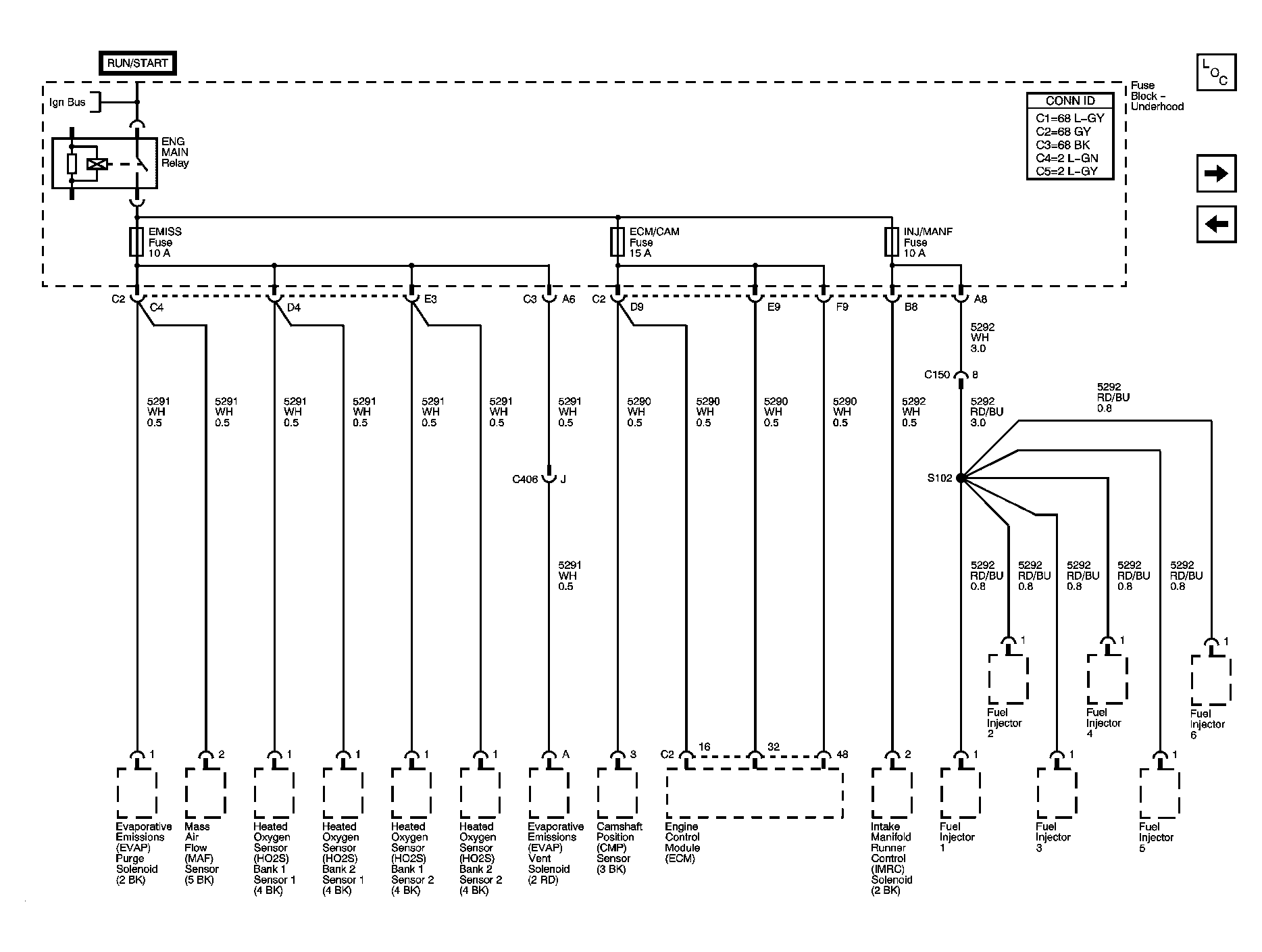

Fig 7: ENG MAIN Relay, EMISS, ECM/CAM & INJ/MANF Fuses - L81

Courtesy of GENERAL MOTORS CORP.

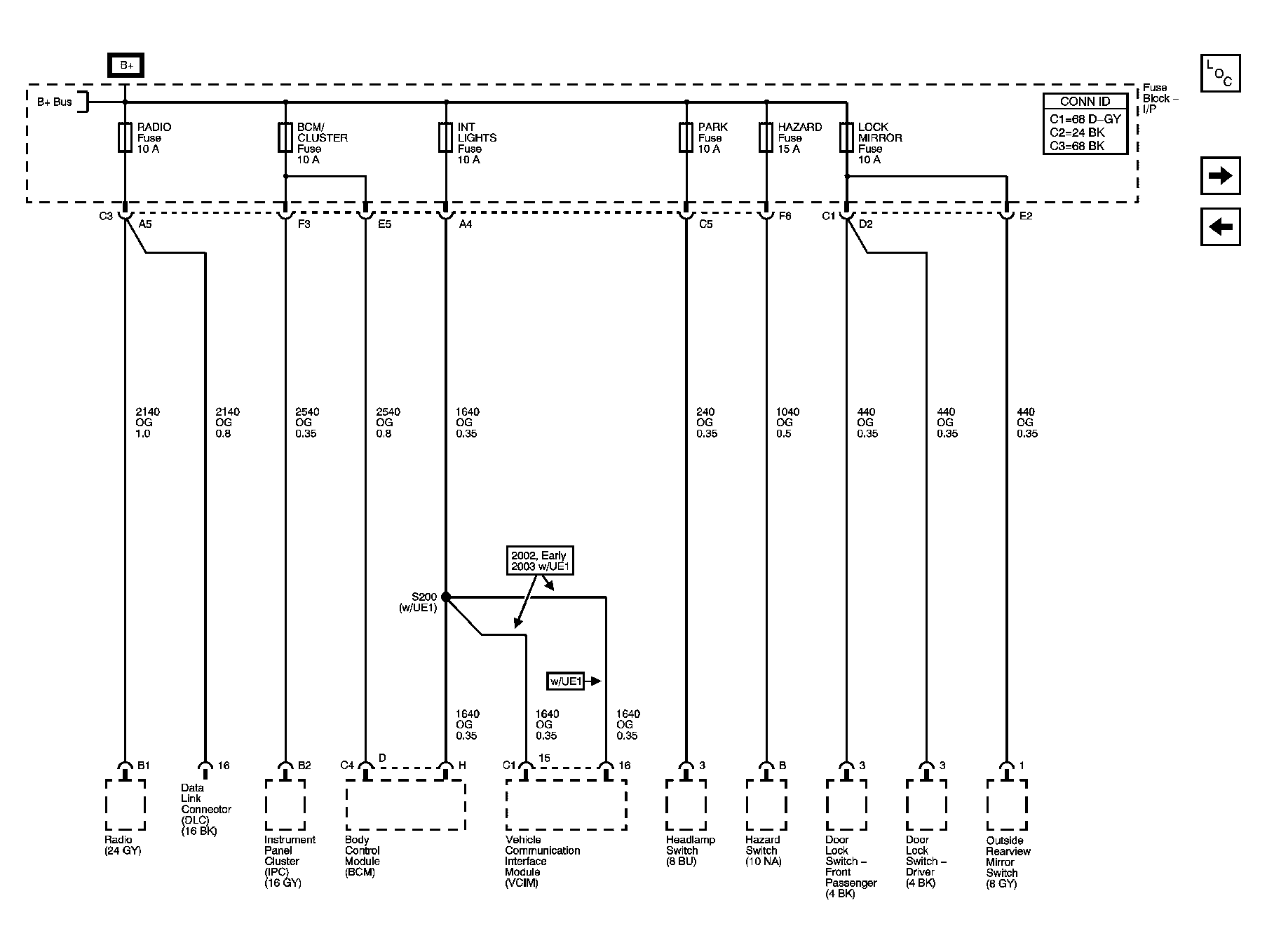

Fig 8: RADIO, BCM/CLUSTER, INT LIGHTS, PARK, HAZARD, and LOCK MIRROR Fuses

Courtesy of GENERAL MOTORS CORP.

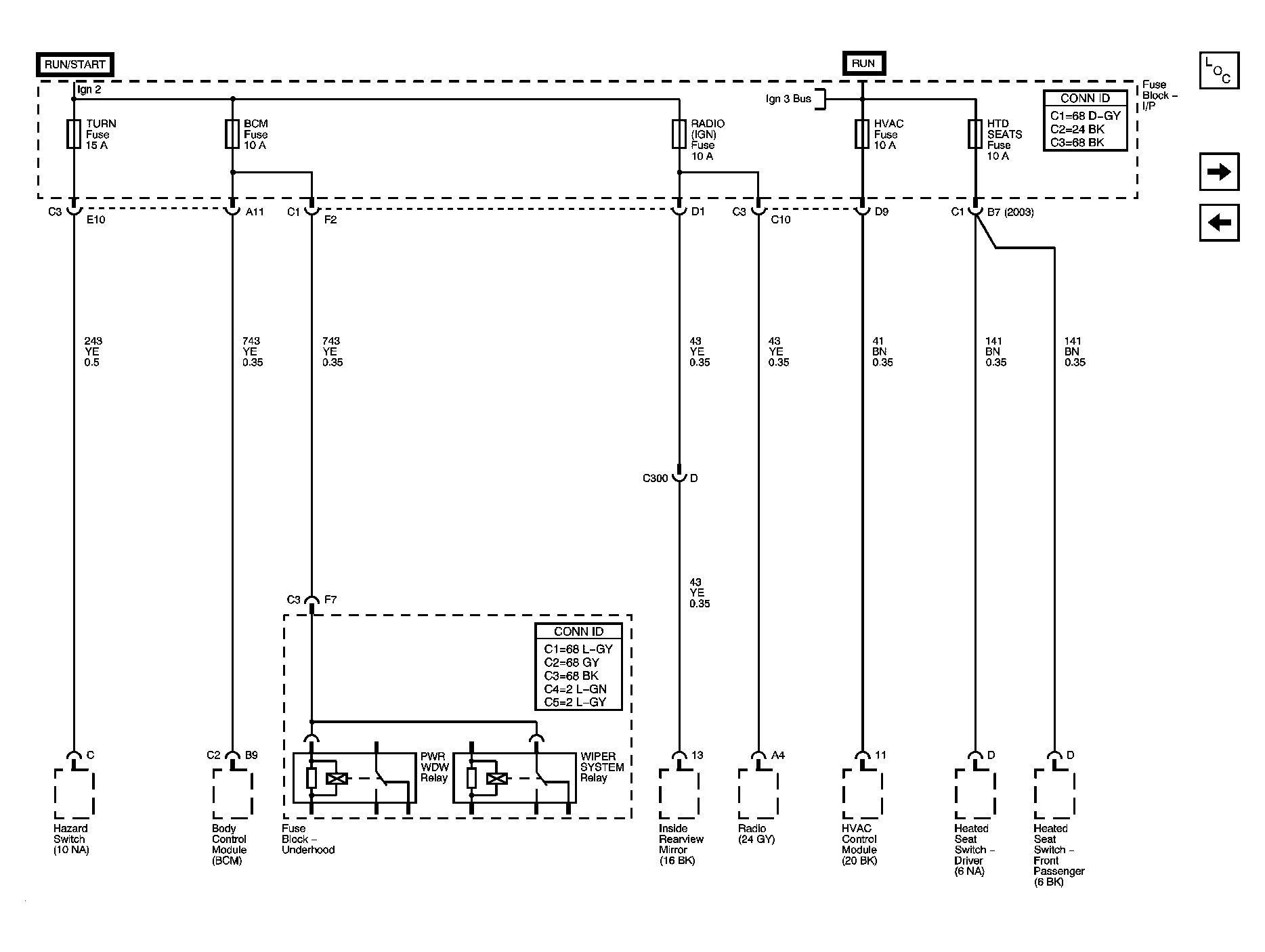

Fig 9: TURN, BCM, RADIO (IGN), HVAC & HTD SEATS Fuses

Courtesy of GENERAL MOTORS CORP.

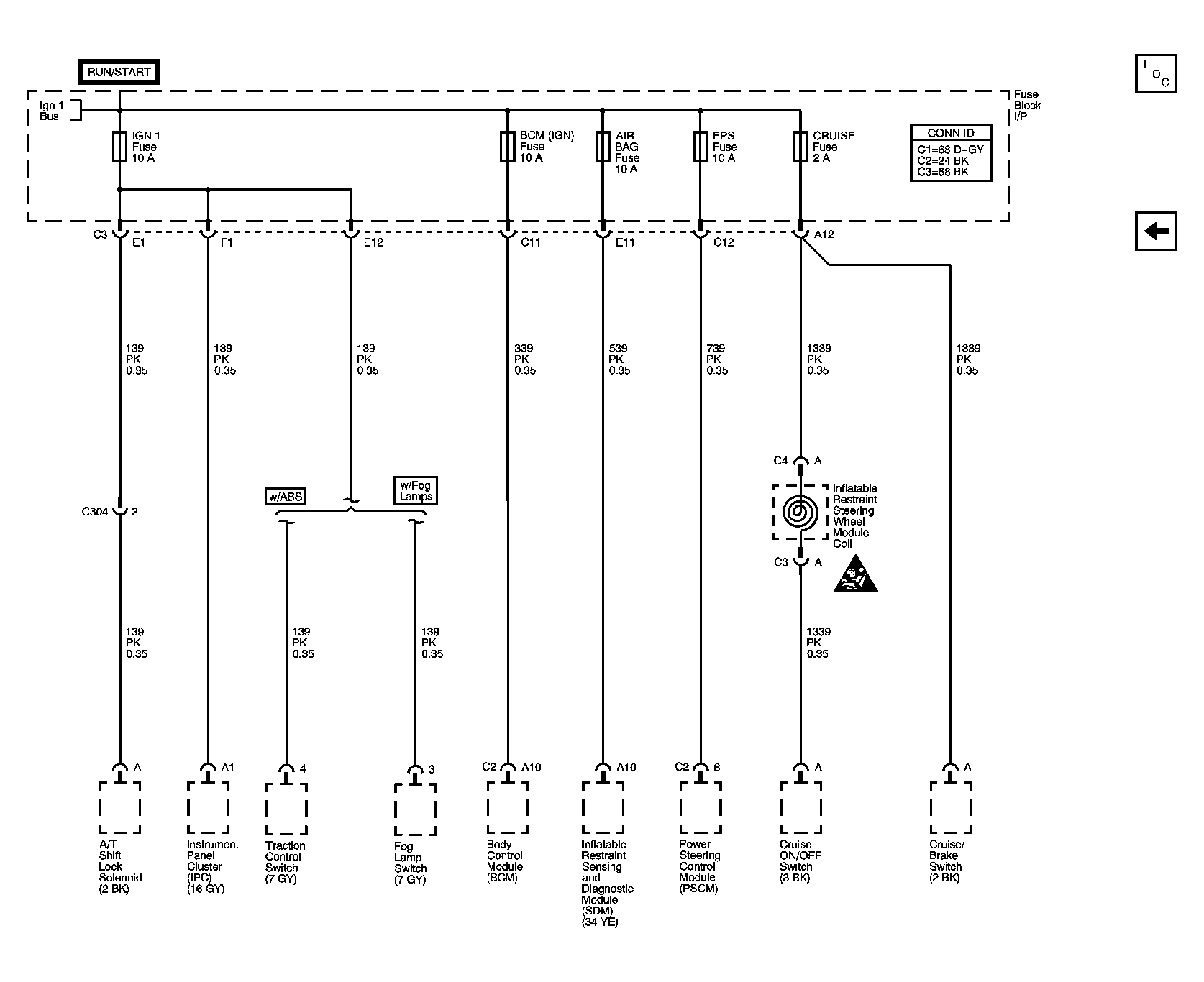

Fig 10: IGN 1, BCM (IGN), AIR BAG & EPS Fuses

Courtesy of GENERAL MOTORS CORP.
