Ground Distribution Schematics

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: G101

Courtesy of GENERAL MOTORS CORP.

Fig 2: G103, G105, G107, and G207 - L81

Courtesy of GENERAL MOTORS CORP.

Fig 3: G103, G105, and G207 - L61

Courtesy of GENERAL MOTORS CORP.

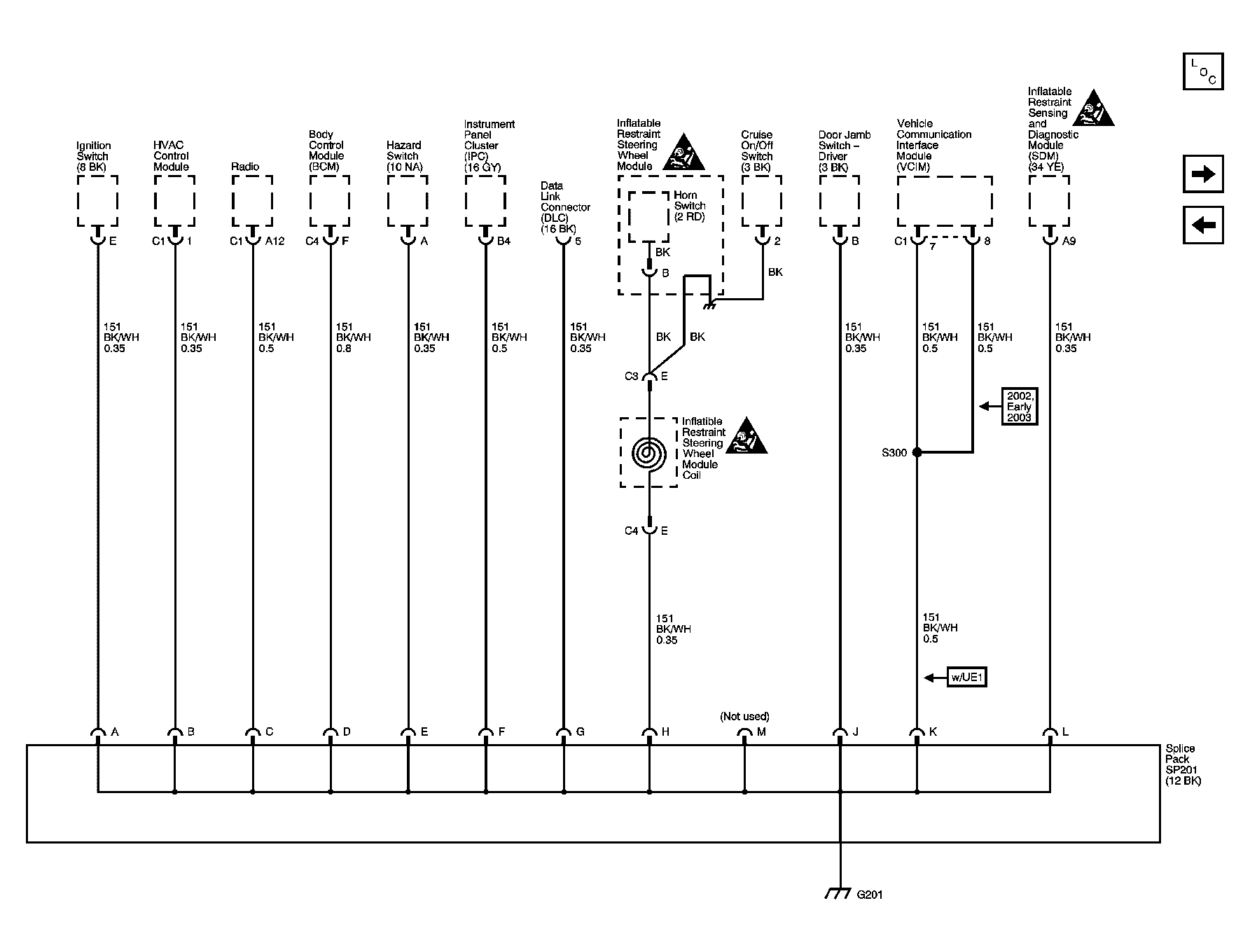

Fig 4: G201

Courtesy of GENERAL MOTORS CORP.

Fig 5: G203 and G205

Courtesy of GENERAL MOTORS CORP.

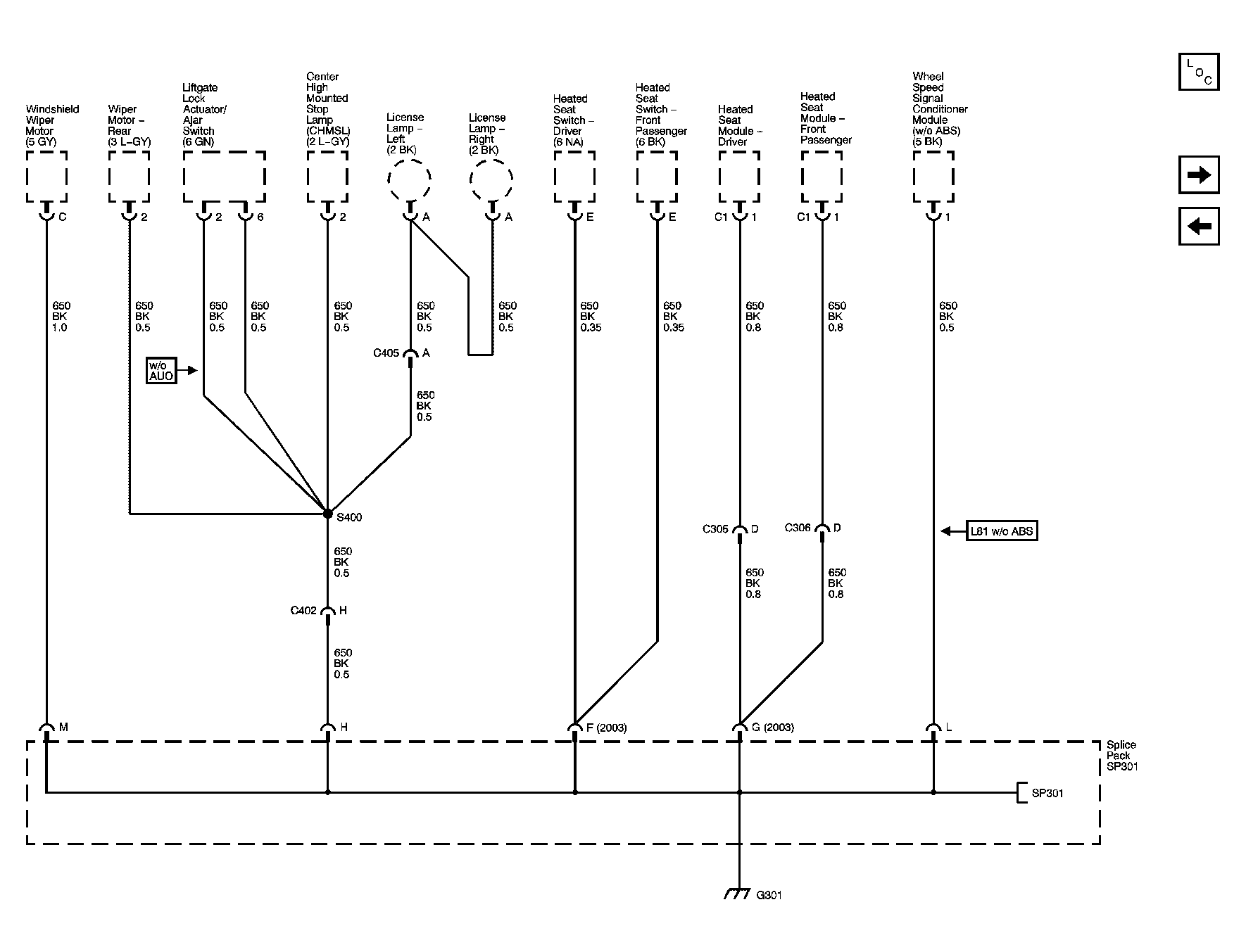

Fig 6: G301 - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 7: G301 - 2 of 2

Courtesy of GENERAL MOTORS CORP.

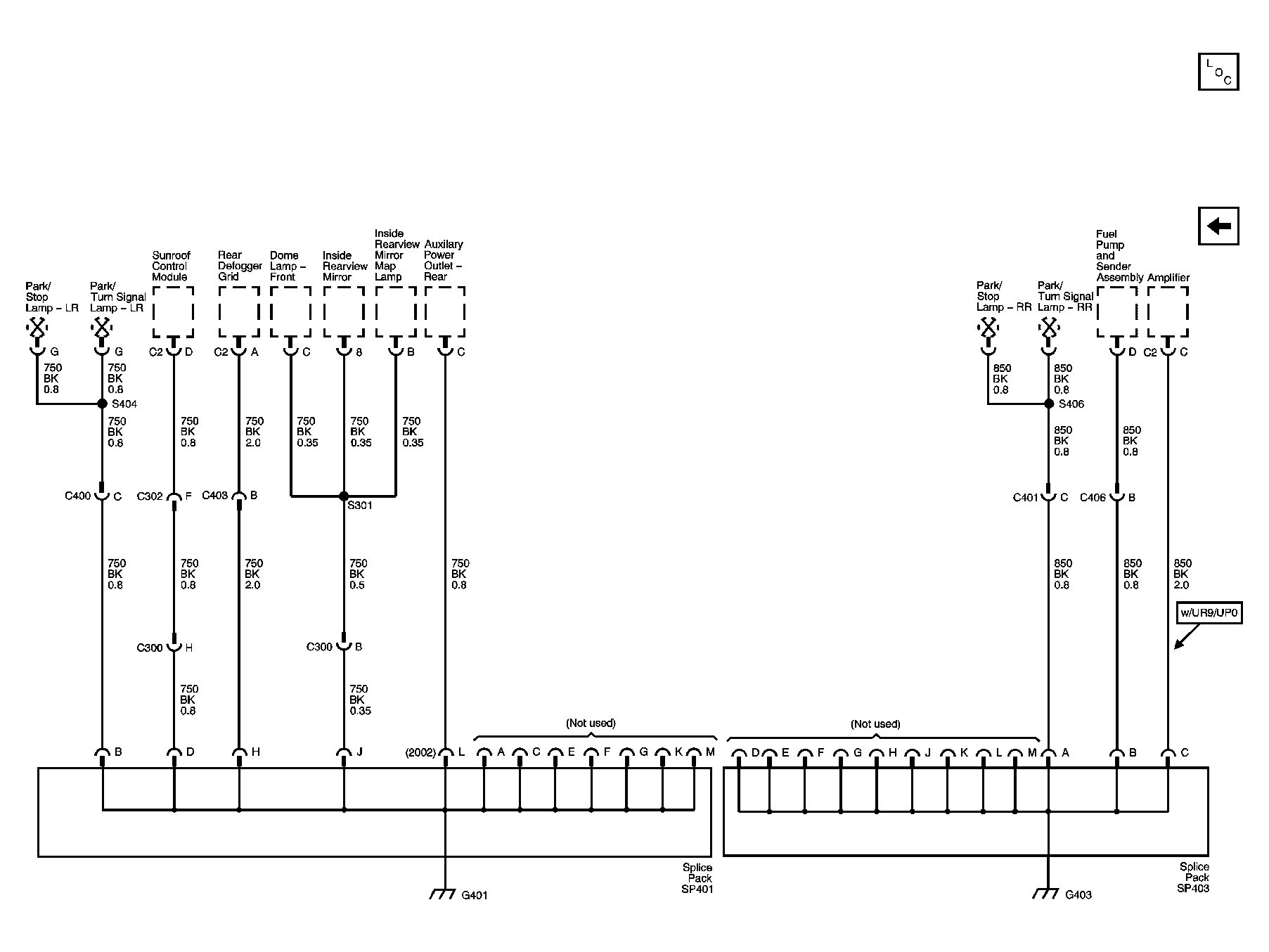

Fig 8: G401 and G403

Courtesy of GENERAL MOTORS CORP.
