Inline Harness Connector End Views
WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
C102 - L61 Engine Harness to the Body Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | BN | 1271 | Low Reference | A | BN | 1271 | Low Reference |
| B | WH/BK | 1164 | 5 Volt Reference | B | WH/BK | 1164 | 5 Volt Reference |
| C | L-BU | 1162 | APP Sensor 2 Signal | C | L-BU | 1162 | APP Sensor 2 Signal |
| D | TN | 1274 | 5 Volt Reference | D | TN | 1274 | 5 Volt Reference |
| E | PU | 1272 | Low Reference | E | PU | 1272 | Low Reference |
| F | D-BU | 1161 | APP Sensor 1 Signal | F | D-BU | 1161 | APP Sensor 1 Signal |
| G | TN | 2501 | CAN Low | G | TN | 2501 | CAN Low |
| H | TN/WH | 2500 | CAN High | H | TN/WH | 2500 | CAN High |
| J | D-GN | 890 | Fuel Tank Pressure Sensor Signal | J | D-GN | 890 | Fuel Tank Pressure Sensor Signal |
| K | GY | 2709 | 5 Volt Reference | K | GY | 2709 | 5 Volt Reference |
C102 - L81 Engine Harness to the Body Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | BN | 1271 | Low Reference | A | BN | 1271 | Low Reference |
| B | WH/BK | 1164 | 5 Volt Reference | B | WH/BK | 1164 | 5 Volt Reference |
| C | L-BU | 1162 | APP Sensor 2 Signal | C | L-BU | 1162 | APP Sensor 2 Signal |
| D | TN | 1274 | 5 Volt Reference | D | TN | 1274 | 5 Volt Reference |
| E | PU | 1272 | Low Reference | E | PU | 1272 | Low Reference |
| F | D-BU | 1161 | APP Sensor 1 Signal | F | D-BU | 1161 | APP Sensor 1 Signal |
| G | TN | 2501 | CAN Low | G | TN | 2501 | CAN Low |
| H | TN/WH | 2500 | CAN High | H | TN/WH | 2500 | CAN High |
| J | GY | 2709 | 5 Volt Reference | J | GY | 2709 | 5 Volt Reference |
| K | D-GN | 890 | Fuel Tank Pressure Sensor Signal | K | D-GN | 890 | Fuel Tank Pressure Sensor Signal |
| L | D-BU | 84 | Cruise Control Set/Coast Switch Signal | L | D-BU | 84 | Cruise Control Set/Coast Switch Signal |
| M | GY | 397 | Cruise Control On Switch Signal | M | GY | 397 | Cruise Control On Switch Signal |
| N | GY/BK | 87 | Cruise Control Resume/Accel Switch Signal | N | GY/BK | 87 | Cruise Control Resume/Accel Switch Signal |
| P | PU | 1589 | Fuel Level Sensor Signal - Primary | P | PU | 1589 | Fuel Level Sensor Signal - Primary |
| R | WH | 1909 | Vehicle Speed Signal | R | WH | 1909 | Vehicle Speed Signal |
| S | - | - | Not Used | S | - | - | Not Used |

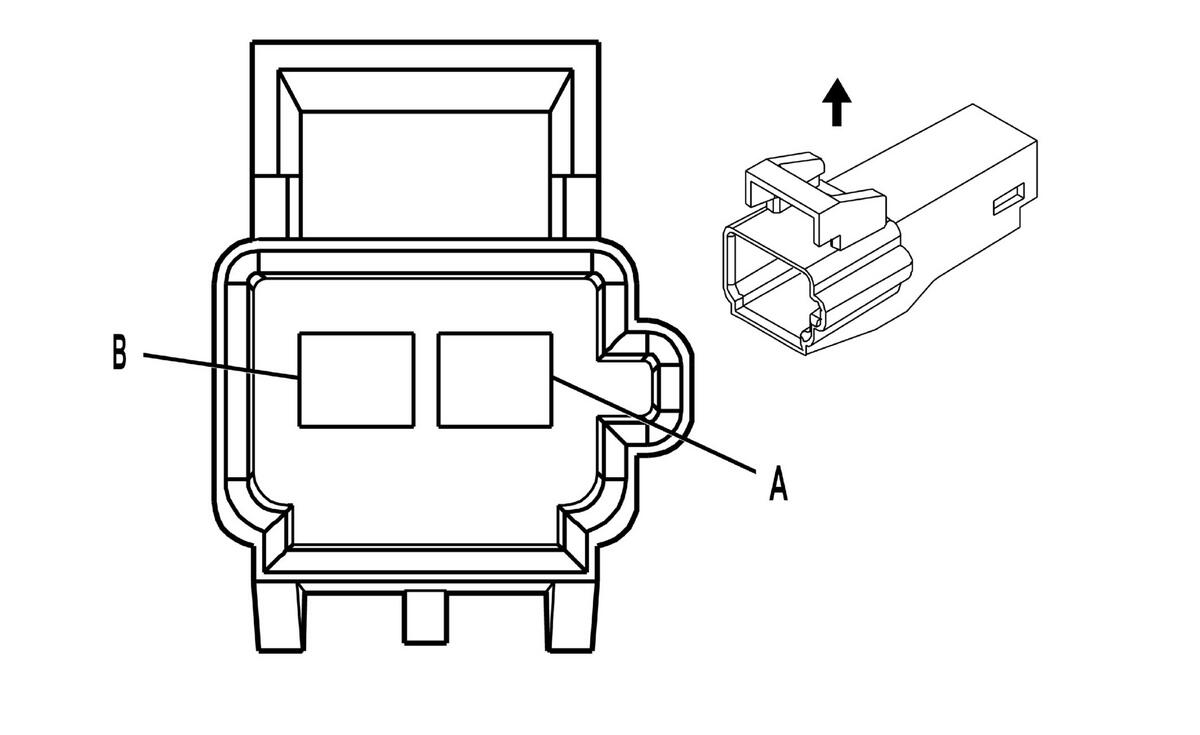

C104 - LF WSS Harness to the Body Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | L-BU | 830 | Left Front Wheel Speed Sensor Signal | A | L-BU | 830 | Left Front Wheel Speed Sensor Signal |
| B | YE | 873 | Left Front Wheel Speed Sensor Low Reference | B | YE | 873 | Left Front Wheel Speed Sensor Low Reference |
C105 - RF WSS Harness to the Body Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | TN | 833 | Right Front Wheel Speed Sensor Low Reference | A | TN | 833 | Right Front Wheel Speed Sensor Low Reference |
| B | D-GN | 872 | Right Front Wheel Speed Sensor Signal | B | D-GN | 872 | Right Front Wheel Speed Sensor Signal |
C106 - Body Harness to the Forward Lamp Harness (w/ HAA- Convenience Package)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | L-GN/BK | 735 | Ambient Air Temperature Sensor Signal | A | L-BN/BK | 735 | Ambient Air Temperature Sensor Signal |
| B | GY | 720 | Low Reference | B | GY | 720 | Low Reference |
C150 - Fuel Injector Harness to the L61 Engine Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | BK | 1744 | Fuel Injector 1 Control | A | BK | 1744 | Fuel Injector 1 Control |
| B | L-GN/BK | 1745 | Fuel Injector 2 Control | B | L-GN/BK | 1745 | Fuel Injector 2 Control |
| C | PK/BK | 1746 | Fuel Injector 3 Control | C | PK/BK | 1746 | Fuel Injector 3 Control |
| D | L-BU/BK | 844 | Fuel Injector 4 Control | D | L-BU/BK | 844 | Fuel Injector 4 Control |
| E | PK | 39 | Ignition 1 Voltage | E | PK | 39 | Ignition 1 Voltage |
| F | OG/BK | 469 | Low Reference | F | OG/BK | 469 | Low Reference |
| G | L-GN | 432 | MAP Sensor Signal | G | L-GN | 432 | MAP Sensor Signal |
| H | GY | 2704 | 5 Volt Reference B | H | GY | 2704 | 5 Volt Reference B |
C150 - Fuel Injector Harness to the L81 Engine Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | BK | 1744 | Fuel Injector 1 Control | 1 | BK | 1744 | Fuel Injector 1 Control |
| 2 | L-GN/BK | 1745 | Fuel Injector 2 Control | 2 | L-GN/BK | 1745 | Fuel Injector 2 Control |
| 3 | PK/BU | 1746 | Fuel Injector 3 Control | 3 | PK/BU | 1746 | Fuel Injector 3 Control |
| 4 | L-BU/BK | 844 | Fuel Injector 4 Control | 4 | L-BU/BK | 844 | Fuel Injector 4 Control |
| 5 | BK/WH | 845 | Fuel Injector 5 Control | 5 | BK/WH | 845 | Fuel Injector 5 Control |
| 6 | YE/BK | 846 | Fuel Injector 6 Control | 6 | YE/BK | 846 | Fuel Injector 6 Control |
| 7 | - | - | Not Used | 7 | - | - | Not Used |
| 8 | WH | 5292 | Ignition 1 Voltage | 8 | WH | 5292 | Ignition 1 Voltage |
| 9-10 | - | - | Not Used | 9-10 | - | - | Not Used |
C200 - I/P Harness to the Body Harness (2002 Models)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A1 | L-BU | 115 | Right Rear Speaker Output (-) | A1 | L-BU | 115 | Right Rear Speaker Output (-) |
| A2 | D-BU | 46 | Right Rear Speaker Output (+) | A2 | D-BU | 46 | Right Rear Speaker Output (+) |
| A3 | YE | 343 | Accessory Voltage | A3 | YE | 343 | Accessory Voltage |
| A4 | YE | 5 | Crank Voltage (w/ A/T) | A4 | YE | 5 | Crank Voltage (w/ A/T) |
| A4 | PU | 6 | Starter Solenoid Crank Voltage (w/ M/T) | A4 | PU | 6 | Starter Solenoid Crank Voltage (w/ M/T) |
| A5 | OG | 40 | Battery Positive Voltage | A5 | OG | 40 | Battery Positive Voltage |
| A6 | D-GN | 95 | Windshield Wiper Motor Low Speed | A6 | D-GN | 95 | Windshield Wiper Motor Low Speed |
| A7 | - | - | Not Used | A7 | - | - | Not Used |
| A8 | BN | 1271 | Low Reference | A8 | BN | 1271 | Low Reference |
| B1 | GY | 118 | Left Front Speaker Output (-) | B1 | GY | 118 | Left Front Speaker Output (-) |
| B2 | TN | 201 | Left Front Speaker Output (+) | B2 | TN | 201 | Left Front Speaker Output (+) |
| B3 | YE | 116 | Left Rear Speaker Output (-) | B3 | YE | 116 | Left Rear Speaker Output (-) |
| B4 | L-BU | 1162 | APP Sensor 2 Signal | B4 | L-BU | 1162 | APP Sensor 2 Signal |
| B5 | PU | 1272 | Low Reference | B5 | PU | 1272 | Low Reference |
| B6 | GY/BK | 87 | Cruise Control Resume/Accel Switch Signal | B6 | GY/BK | 87 | Cruise Control Resume/Accel Switch Signal |
| B7 | WH/BK | 1164 | 5 Volt Reference | B7 | WH/BK | 1164 | 5 Volt Reference |
| B8 | GY | 397 | Cruise Control On Switch Signal | B8 | GY | 397 | Cruise Control On Switch Signal |
| B9 | L-GN | 200 | Right Front Speaker Output (+) | B9 | L-GN | 200 | Right Front Speaker Output (+) |
| B10 | OG | 940 | Battery Positive Voltage | B10 | OG | 940 | Battery Positive Voltage |
| B11 | TN | 1274 | 5 Volt Reference | B11 | TN | 1274 | 5 Volt Reference |
| B12 | D-BU | 1161 | APP Sensor 1 Signal | B12 | D-BU | 1161 | APP Sensor 1 Signal |
| C1 | D-GN | 117 | Right Front Speaker Output (-) | C1 | D-GN | 117 | Right Front Speaker Output (-) |
| C2 | PU | 719 | Low Reference | C2 | PU | 719 | Low Reference |
| C3 | BN | 199 | Left Rear Speaker Output (+) | C3 | BN | 199 | Left Rear Speaker Output (+) |
| C4-C5 | - | - | Not Used | C4-C5 | - | - | Not Used |
| C6 | PU | 420 | Brake Switch Signal | C6 | PU | 420 | Brake Switch Signal |
| C7 | BN/WH | 2960 | Keyword Serial Data | C7 | BN/WH | 2960 | Keyword Serial Data |
| C8 | D-BU | 1660 | Traction Control Indicator Control | C8 | D-BU | 1660 | Traction Control Indicator Control |
| C9 | L-BU | 20 | Stop Lamp Switch Signal | C9 | L-BU | 20 | Stop Lamp Switch Signal |
| C10 | GY | 731 | Evaporator Temperature Sensor Signal | C10 | GY | 731 | Evaporator Temperature Sensor Signal |
| C11 | D-BU | 84 | Cruise Control Set/Coast Switch Signal | C11 | D-BU | 84 | Cruise Control Set/Coast Switch Signal |
| C12 | OG | 540 | Battery Positive Voltage | C12 | OG | 540 | Battery Positive Voltage |
| D1 | TN | 2501 | CAN Low | D1 | TN | 2501 | CAN Low |
| D2 | TN/WH | 2500 | CAN High | D2 | TN/WH | 2500 | CAN High |
| D3 | PU | 92 | Windshield Wiper Motor High Speed | D3 | PU | 92 | Windshield Wiper Motor High Speed |
| D4 | L-BU | 97 | Windshield Wiper Switch Mist/Off/Low Signal | D4 | L-BU | 97 | Windshield Wiper Switch Mist/Off/Low Signal |
| D5 | OG | 40 | Battery Positive Voltage | D5 | OG | 40 | Battery Positive Voltage |
| D6 | OG | 1140 | Battery Positive Voltage | D6 | OG | 1140 | Battery Positive Voltage |
| D7 | OG/BK | 1445 | Front Wiper Relay Control | D7 | OG/BK | 1445 | Front Wiper Relay Control |
| D8 | BN/WH | 2960 | Keyword Serial Data (L81) | D8 | BN/WH | 2960 | Keyword Serial Data (L81) |
| D8 | WH/BK | 5043 | Keyword Serial Data (L61) | D8 | WH/BK | 5043 | Keyword Serial Data (L61) |
C200 - I/P Harness to the Body Harness (2003 Models)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A1 | L-BU | 115 | Right Rear Speaker Output (-) | A1 | L-BU | 115 | Right Rear Speaker Output (-) |
| A2 | D-BU | 46 | Right Rear Speaker Output (+) | A2 | D-BU | 46 | Right Rear Speaker Output (+) |
| A3 | YE | 343 | Accessory Voltage | A3 | YE | 343 | Accessory Voltage |
| A4 | YE | 5 | Crank Voltage (w/ A/T) | A4 | YE | 5 | Crank Voltage (w/ A/T) |
| A4 | PU | 6 | Starter Solenoid Crank Voltage (w/ M/T) | A4 | PU | 6 | Starter Solenoid Crank Voltage (w/ M/T) |
| A5 | OG | 40 | Battery Positive Voltage | A5 | OG | 40 | Battery Positive Voltage |
| A6 | D-GN | 95 | Windshield Wiper Motor Low Speed | A6 | D-GN | 95 | Windshield Wiper Motor Low Speed |
| A7 | OG | 1950 | Amplifier Sense | A7 | OG | 1950 | Amplifier Sense |
| A8 | BN | 1271 | Low Reference | A8 | BN | 1271 | Low Reference |
| B1 | GY | 118 | Left Front Speaker Output (-) | B1 | GY | 118 | Left Front Speaker Output (-) |
| B2 | TN | 201 | Left Front Speaker Output (+) | B2 | TN | 201 | Left Front Speaker Output (+) |
| B3 | YE | 116 | Left Rear Speaker Output (-) | B3 | YE | 116 | Left Rear Speaker Output (-) |
| B4 | L-BU | 1162 | APP Sensor 2 Signal | B4 | L-BU | 1162 | APP Sensor 2 Signal |
| B5 | PU | 1272 | Low Reference | B5 | PU | 1272 | Low Reference |
| B6 | GY/BK | 87 | Cruise Control Resume/Accel Switch Signal | B6 | GY/BK | 87 | Cruise Control Resume/Accel Switch Signal |
| B7 | WH/BK | 1164 | 5 Volt Reference | B7 | WH/BK | 1164 | 5 Volt Reference |
| B8 | GY | 397 | Cruise Control On Switch Signal | B8 | GY | 397 | Cruise Control On Switch Signal |
| B9 | L-GN | 200 | Right Front Speaker Output (+) | B9 | L-GN | 200 | Right Front Speaker Output (+) |
| B10 | OG | 340 | Battery Positive Voltage | B10 | OG | 340 | Battery Positive Voltage |
| B11 | TN | 1274 | 5 Volt Reference | B11 | TN | 1274 | 5 Volt Reference |
| B12 | D-BU | 1161 | APP Sensor 1 Signal | B12 | D-BU | 1161 | APP Sensor 1 Signal |
| C1 | D-GN | 117 | Right Front Speaker Output (-) | C1 | D-GN | 117 | Right Front Speaker Output (-) |
| C2 | PU | 719 | Low Reference | C2 | PU | 719 | Low Reference |
| C3 | BN | 199 | Left Rear Speaker Output (+) | C3 | BN | 199 | Left Rear Speaker Output (+) |
| C4 | OG | 360 | Amplifier Control | C4 | OG | 360 | Amplifier Control |
| C5 | - | - | Not Used | C5 | - | - | Not Used |
| C6 | PU | 420 | Brake Switch Signal | C6 | PU | 420 | Brake Switch Signal |
| C7 | BN/WH | 2960 | Keyword Serial Data | C7 | BN/WH | 2960 | Keyword Serial Data |
| C8 | D-BU | 1660 | Traction Control Indicator Control | C8 | D-BU | 1660 | Traction Control Indicator Control |
| C9 | L-BU | 20 | Stop Lamp Switch Signal | C9 | L-BU | 20 | Stop Lamp Switch Signal |
| C10 | GY | 731 | Evaporator Temperature Sensor Signal | C10 | GY | 731 | Evaporator Temperature Sensor Signal |
| C11 | D-BU | 84 | Cruise Control Set/Coast Switch Signal | C11 | D-BU | 84 | Cruise Control Set/Coast Switch Signal |
| C12 | OG | 540 | Battery Positive Voltage | C12 | OG | 540 | Battery Positive Voltage |
| D1 | TN | 2501 | CAN Low | D1 | TN | 2501 | CAN Low |
| D2 | TN/WH | 2500 | CAN High | D2 | TN/WH | 2500 | CAN High |
| D3 | PU | 92 | Windshield Wiper Motor High Speed | D3 | PU | 92 | Windshield Wiper Motor High Speed |
| D4 | L-BU | 97 | Windshield Wiper Switch Mist/Off/Low Signal | D4 | L-BU | 97 | Windshield Wiper Switch Mist/Off/Low Signal |
| D5 | OG | 40 | Battery Positive Voltage | D5 | OG | 40 | Battery Positive Voltage |
| D6 | OG | 1140 | Battery Positive Voltage | D6 | OG | 1140 | Battery Positive Voltage |
| D7 | OG/BK | 1445 | Front Wiper Relay Control | D7 | OG/BK | 1445 | Front Wiper Relay Control |
| D8 | BN/WH | 2960 | Keyword Serial Data (L81) | D8 | BN/WH | 2960 | Keyword Serial Data (L81) |
| D8 | WH/BK | 5043 | Keyword Serial Data (L61) | D8 | WH/BK | 5043 | Keyword Serial Data (L61) |
C201 - Auxiliary Outlet Harness to the I/P Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | OG | 940 | Battery Positive Voltage | A | OG | 940 | Battery Positive Voltage |
| B | BK | 550 | Ground | B | BK | 550 | Ground |
C202 - HVAC Harness to the I/P Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | PU/WH | 3361 | Defrost Mode Valve Solenoid Control B | A | PU/WH | 3361 | Defrost Mode Valve Solenoid Control B |
| B | RD | 362 | Upper Mode Valve Solenoid Control A | B | RD | 362 | Upper Mode Valve Solenoid Control A |
| C | PU | 361 | Defrost Mode Valve Solenoid Control A | C | PU | 361 | Defrost Mode Valve Solenoid Control A |
| D | PK/WH | 1648 | Recirculation Door Control B | D | PK/WH | 1648 | Recirculation Door Control B |
| E | L-GN/BK | 1647 | Recirculation Door Control A | E | L-GN/BK | 1647 | Recirculation Door Control A |
| F | BK | 407 | Low Reference | F | BK | 407 | Low Reference |
| G | RD | 708 | Mode Door Position Signal | G | RD | 708 | Mode Door Position Signal |
| H | YE/BK | 1814 | Lower Mode Door Position Signal | H | YE/BK | 1814 | Lower Mode Door Position Signal |
| J | YE/BK | 713 | Defrost Mode Valve Position Sensor Signal | J | YE/BK | 713 | Defrost Mode Valve Position Sensor Signal |
| K | OG/WH | 3362 | Upper Mode Valve Solenoid Control B | K | OG/WH | 3362 | Upper Mode Valve Solenoid Control B |
| L | L-GN/WH | 366 | Lower Mode Valve Solenoid Control A | L | L-GN/WH | 366 | Lower Mode Valve Solenoid Control A |
| M | L-GN/BK | 3366 | Lower Mode Valve Solenoid Control B | M | L-GN/BK | 3366 | Lower Mode Valve Solenoid Control B |
| N | GY | 705 | 5 Volt Reference | N | GY | 705 | 5 Volt Reference |
| P-S | - | - | Not Used | P-S | - | - | Not Used |
C300 - Body Harness to the Headliner Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | WH | 156 | Courtesy Lamp Switch Signal | A | WH | 156 | Courtesy Lamp Switch Signal |
| B | BK | 750 | Ground | B | BK | 750 | Ground |
| C | OG | 1732 | Courtesy Lamps Supply Voltage | C | OG | 1732 | Courtesy Lamps Supply Voltage |
| D | YE | 43 | Ignition 1 Voltage | D | YE | 43 | Ignition 1 Voltage |
| E | OG | 580 | Accessory Voltage (w/ CF5) | E | OG | 580 | Accessory Voltage (w/ CF5) |
| F | L-GN | 24 | Backup Lamp Supply Voltage (w/ HAA) | F | L-GN | 24 | Backup Lamp Supply Voltage (w/ HAA) |
| G | GY | 157 | Courtesy Lamps Control | G | GY | 157 | Courtesy Lamps Control |
| H | BK | 750 | Ground (w/ CF5) | H | BK | 750 | Ground (w/ CF5) |
| J | L-GN/BK | 735 | Ambient Air Temperature Sensor Signal (w/ HAA) | J | L-GN/BK | 735 | Ambient Air Temperature Sensor Signal (w/ HAA) |
| K | GY | 720 | Low Reference (w/ HAA) | K | GY | 720 | Low Reference (w/ HAA) |
C302 - Sunroof Harness to the Headliner Harness (w/ CF5)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | BN | 100 | Sunroof Switch Open Signal | A | BN | 100 | Sunroof Switch Open Signal |
| B | D-GN | 2074 | Sunroof Switch Express Signal | B | D-GN | 2074 | Sunroof Switch Express Signal |
| C | OG/BK | 144 | Sunroof Switch Open Vent Signal | C | OG/BK | 144 | Sunroof Switch Open Vent Signal |
| D | D-BU | 128 | Low Reference | D | D-BU | 128 | Low Reference |
| E | OG | 580 | Accessory Voltage | E | OG | 580 | Accessory Voltage |
| F | BK | 750 | Ground | F | BK | 750 | Ground |
| G-H | - | - | Not Used | G-H | - | - | Not Used |
C303 - Headliner Harness to OnStar Harness (w/ UE1)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | YE/BK | 2516 | Keypad Green LED Signal | A | YE/BK | 2516 | Keypad Green LED Signal |
| B | L-GN/BK | 2515 | Keypad Supply Signal | B | L-GN/BK | 2515 | Keypad Supply Signal |
| C | D-GN/WH | 2514 | Keypad Signal | C | D-GN/WH | 2514 | Keypad Signal |
| D | BN/WH | 2517 | Keypad Red LED Signal | D | BN/WH | 2517 | Keypad Red LED Signal |
| E | GY | 655 | Cellular Microphone Signal | E | GY | 655 | Cellular Microphone Signal |
| F | BARE | 654 | Cellular Microphone Low Reference | F | BARE | 654 | Cellular Microphone Low Reference |
| G-H | - | - | Not Used | G-H | - | - | Not Used |
C304 - Shifter Assembly Harness to the I/P Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | TN/WH | 816 | A/T Shift Lock Solenoid Supply Voltage | 1 | WH | 816 | A/T Shift Lock Solenoid Supply Voltage |
| 2 | PK | 139 | Ignition 1 Voltage | 2 | PK | 139 | Ignition 1 Voltage |
| 3 | GY | 8 | Instrument Panel Lamp Supply Voltage | 3 | GY | 8 | Instrument Panel Lamp Supply Voltage |
| 4 | BK | 550 | Ground | 4 | BK | 550 | Ground |
C305 - Body Harness to the Driver Seat Harness (w/ HAA,KA1)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | OG | 1540 | Battery Positive Voltage | A | OG | 1540 | Battery Positive Voltage |
| B | L-BU | 1462 | Heated Seat Switch Signal | B | L-BU | 1462 | Heated Seat Switch Signal |
| C | PK | 1501 | Driver Heated Seat High/Low Signal | C | PK | 1501 | Driver Heated Seat High/Low Signal |
| D | BK | 650 | Ground | D | BK | 650 | Ground |
C306 - Body Harness to the Passenger Seat Harness (w/ HAA,KA1)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | OG | 1540 | Battery Positive Voltage | A | OG | 1540 | Battery Positive Voltage |
| B | L-BU/BK | 1505 | Heated Seat Switch Signal | B | L-BU/BK | 1505 | Heated Seat Switch Signal |
| C | PK/BK | 1503 | Passenger Heated Seat High/Low Signal | C | PK/BK | 1503 | Passenger Heated Seat High/Low Signal |
| D | BK | 650 | Ground | D | BK | 650 | Ground |
C307 - SDM Harness to the SIS Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A1 | YE | 2131 | Left SIS Module Voltage | A1 | YE | 2131 | Left SIS Module Voltage |
| A2 | WH | 2132 | Left SIS Module Signal | A2 | WH | 2132 | Left SIS Module Signal |
| B1 | TN | 2133 | Right SIS Module Voltage | B1 | TN | 2133 | Right SIS Module Voltage |
| B2 | D-GN | 2134 | Right SIS Module Signal | B2 | D-GN | 2134 | Right SIS Module Signal |
C308 - Roof Rail Module Harness to the SDM Harness (w/ ASF)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A1 | BK/WH | 2135 | RF Side Impact Module High Control | A1 | BK/WH | 2135 | RF Side Impact Module High Control |
| A2 | L-GN | 2136 | RF Side Impact Module Low Control | A2 | L-GN | 2136 | RF Side Impact Module Low Control |
| B1 | BN | 2137 | LF Side Impact Module High Control | B1 | BN | 2137 | LF Side Impact Module High Control |
| B2 | YE/BK | 2138 | LF Side Impact Module Low Control | B2 | YE/BK | 2138 | LF Side Impact Module Low Control |
C400 - Body Harness to the Left Tail Lamp Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | YE | 18 | Left Rear Stop/Turn Lamp Supply Voltage | A | D-BU | 18 | Left Rear Stop/Turn Lamp Supply Voltage |
| B | BN | 9 | Park Lamp Supply Voltage | B | BN | 9 | Park Lamp Supply Voltage |
| C | BK | 750 | Ground | C | BK | 750 | Ground |
| D | L-GN | 24 | Backup Lamp Switch Signal | D | L-GN | 24 | Backup Lamp Switch Signal |
| E | - | - | Not Used | E | - | - | Not Used |
| F | L-BU | 20 | Stop Lamp Switch Signal | F | L-BU | 20 | Stop Lamp Switch Signal |
C401 - Body Harness to the Right Tail Lamp Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | D-GN | 19 | Right Rear Stop/Turn Lamp Supply Voltage | A | D-BU | 19 | Right Rear Stop/Turn Lamp Supply Voltage |
| B | BN | 9 | Park Lamp Supply Voltage | B | BN | 9 | Park Lamp Supply Voltage |
| C | BK | 850 | Ground | C | BK | 850 | Ground |
| D | L-GN | 24 | Backup Lamp Switch Signal | D | L-GN | 24 | Backup Lamp Switch Signal |
| E | - | - | Not Used | E | - | - | Not Used |
| F | L-BU | 20 | Stop Lamp Switch Signal | F | L-BU | 20 | Stop Lamp Switch Signal |
C402 - Liftgate Harness to the Body Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | BN | 9 | Park Lamp Supply Voltage | A | BN | 9 | Park Lamp Supply Voltage |
| B | OG | 1732 | Courtesy Lamps Supply Voltage | B | OG | 1732 | Courtesy Lamps Supply Voltage |
| C | L-BU | 20 | Stop Lamp Switch Signal | C | L-BU | 20 | Stop Lamp Switch Signal |
| D | GY | 295 | Door Lock Actuator Lock Control | D | GY | 295 | Door Lock Actuator Lock Control |
| E | TN | 294 | Door Lock Actuator Unlock Control | E | TN | 294 | Door Lock Actuator Unlock Control |
| F | YE | 143 | Accessory Voltage | F | YE | 143 | Accessory Voltage |
| G | WH | 393 | Rear Window Wiper Motor Control | G | WH | 393 | Rear Window Wiper Motor Control |
| H | BK | 650 | Ground | H | BK | 650 | Ground |
| J | GY | 157 | Courtesy Lamp Control | J | GY | 157 | Courtesy Lamp Control |
| K | RD/BK | 744 | Liftgate Ajar Switch Signal | K | RD/BK | 744 | Liftgate Ajar Switch Signal |
C403 - Liftgate Harness to the Body Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | BK | 293 | Rear Defog Element Supply Voltage | A | PU | 293 | Rear Defog Element Supply Voltage |
| B | BK | 750 | Ground | B | BK | 750 | Ground |
C404 - Rear WSS Harness to the Body Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | BN | 882 | RR WSS Signal | A | BN | 882 | RR WSS Signal |
| B | WH | 883 | RR WSS Low Ref | B | WH | 883 | RR WSS Low Ref |
| C | BK | 884 | LR WSS Signal | C | BK | 884 | LR WSS Signal |
| D | RD | 885 | LR WSS Low Ref | D | RD | 885 | LR WSS Low Ref |
C405 - License Lamp Harness to the Liftgate Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | BK | 650 | Ground | A | BK | 650 | Ground |
| B | WH | 9 | Park Lamp Supply Voltage | B | BN | 9 | Park Lamp Supply Voltage |
C406 - Fuel Tank Harness to the Body Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | GY | 120 | Fuel Pump Supply Voltage | A | GY | 120 | Fuel Pump Supply Voltage |
| B | BK | 850 | Ground | B | BK | 850 | Ground |
| C | PU | 1589 | Fuel Level Sensor Signal | C | PU | 1589 | Fuel Level Sensor Signal |
| D | - | - | Not Used (For Diagnostics) | D | D-BU | 930 | Fuel Level Sensor Signal |
| E | GY | 2709 | 5 Volt Reference | E | GY | 2709 | 5 Volt Reference |
| F | D-GN | 890 | Fuel Tank Pressure Sensor Signal | F | D-GN | 890 | Fuel Tank Pressure Sensor Signal |
| G | BK | 2759 | Low Reference | G | BK | 2759 | Low Reference |
| H | BK | 2759 | Low Reference | H | BK | 2759 | Low Reference |
| J | WH | 5291 | Ignition 1 Voltage | J | WH | 5291 | Ignition 1 Voltage |
| K | WH | 1310 | EVAP Canister Vent Solenoid Control | K | WH | 1310 | EVAP Canister Vent Solenoid Control |
C700 - Body Harness to the LR Door
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | GY | 295 | Door Lock Actuator Lock Control | A | GY | 295 | Door Lock Actuator Lock Control |
| B | TN | 294 | Door Lock Actuator Unlock Control | B | TN | 294 | Door Lock Actuator Unlock Control |
C800 - Body Harness to the RR Door
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | GY | 295 | Door Lock Actuator Lock Control | A | GY | 295 | Door Lock Actuator Lock Control |
| B | TN | 294 | Door Lock Actuator Unlock Control | B | TN | 294 | Door Lock Actuator Unlock Control |
