Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a flat-bladed tool in order to carefully release the retainer from the base of the recliner handle.
  2. Remove the recliner handle.
  3. Remove the screws from the front seat trim panel.
  4. Pull the front seat trim panel away from the seat cushion frame in order to release the clips.

    Discard the clips.

  5. Disconnect the electrical connectors, if equipped.
  6. Remove the front seat trim panel from the front seat.

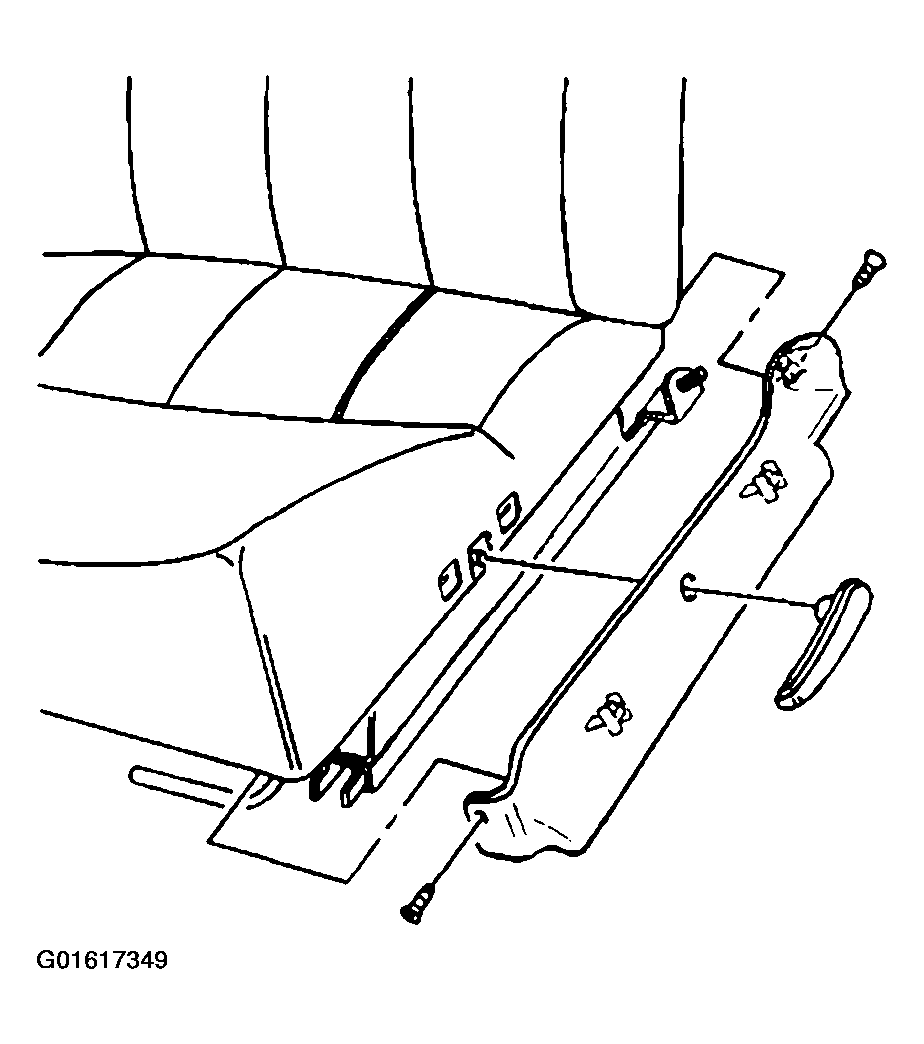

    Fig 1: Front Seat Trim Panel
    G01617349Courtesy of GENERAL MOTORS CORP.
