Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat from the vehicle. Refer to Seat Replacement - Front Bucket .
  2. Remove the front seat back from the front seat. Refer to Seat Back Replacement - Front .
  3. Remove the front seat cushion cover from the front seat cushion. Refer to Seat Cushion Cover Replacement - Front .
  4. Remove the front seat cushion from the front seat frame. Refer to Seat Cushion Replacement - Front (Pad) .
  5. Remove the front seat recliner assembly from the front seat cushion frame. Refer to Seat Back Recliner Replacement - Front .
  6. Remove the bolts from the front seat frame to the front seat track adjusters.
  7. Remove the front seat frame from the front seat track adjusters.
  8. Remove the front seat cushion frame from the front seat track adjusters.

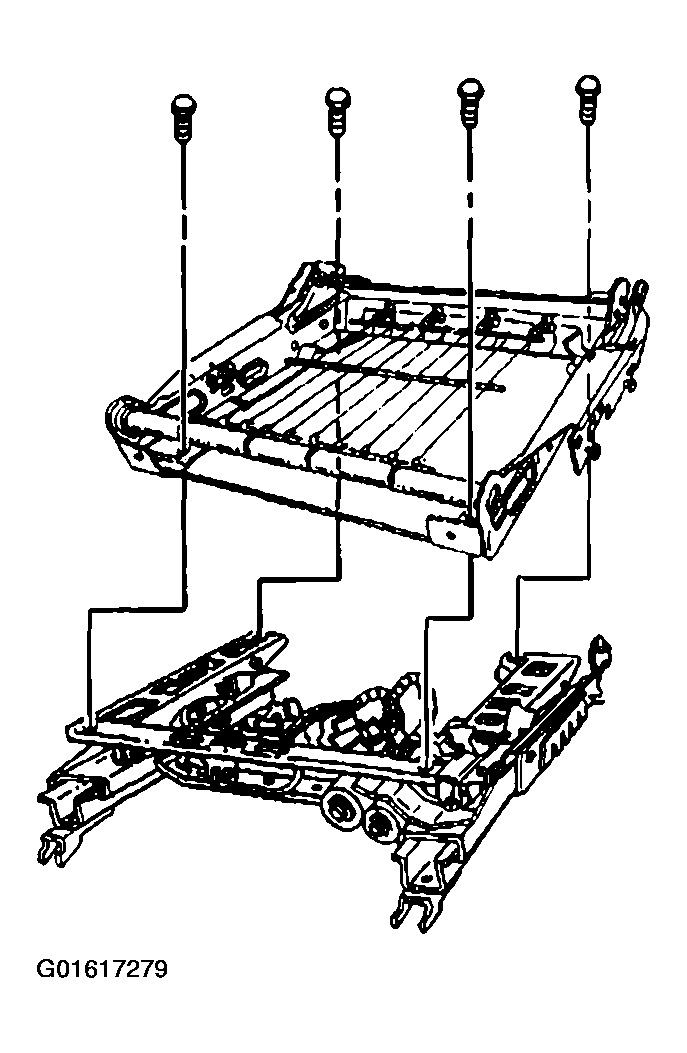

    Fig 1: Front Seat Cushion Frame
    G01617279Courtesy of GENERAL MOTORS CORP.
