Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front seat cushion frame to the front seat adjusters.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts to the seat frame to the front seat track adjusters.

    Tighten

    Tighten the bolts to the front seat frame to 25 N.m (18 lb ft).

  3. Install the front seat recliner assembly to the front seat cushion frame. Refer to Seat Back Recliner Replacement - Front .
  4. Install the front seat cushion to the front seat cushion frame. Refer to Seat Cushion Replacement - Front (Pad) .
  5. Install the front seat cushion cover to the front seat cushion. Refer to Seat Cushion Cover Replacement - Front .
  6. Install the front seat back to the front seat. Refer to Seat Back Replacement - Front .
  7. Install the front seat to the vehicle. Refer to Seat Replacement - Front Bucket .

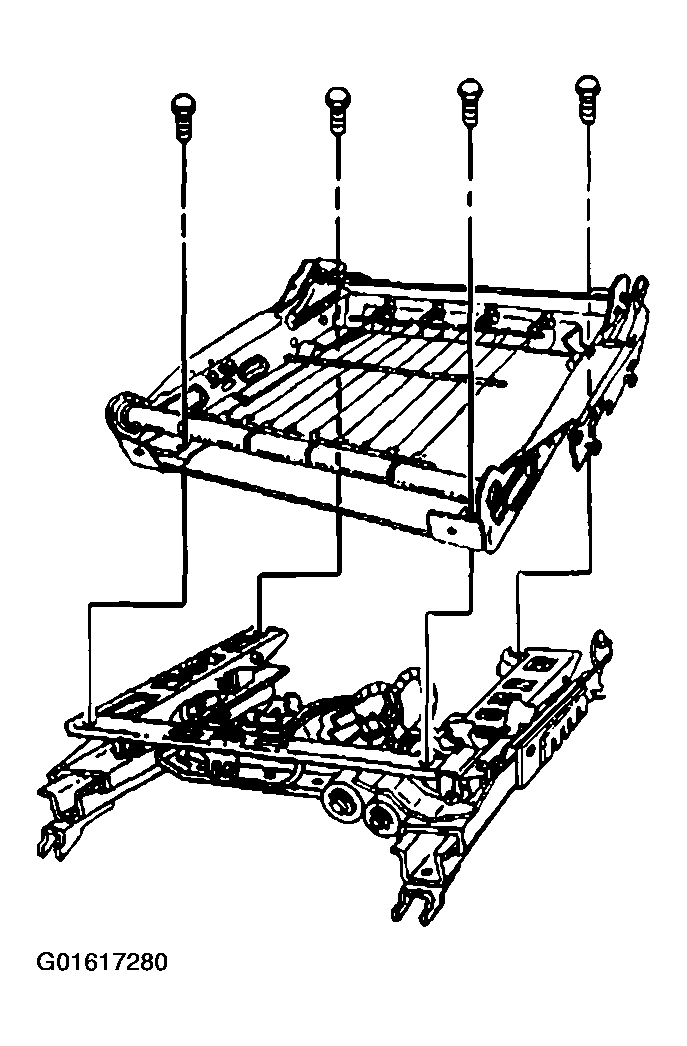

    Fig 1: Front Seat Cushion Frame
    G01617280Courtesy of GENERAL MOTORS CORP.
