Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion (1). Refer to Seat Cushion Replacement - Rear .
  2. Remove the trim retainer rings (3) (hog rings) from the cover (2).
  3. Slide your hand between the rear seat cushion pad and the rear seat cover and separate the hook and loop retainers that attach the rear seat cushion cover to the rear seat pad.
  4. Remove the rear seat cushion cover from the pad.

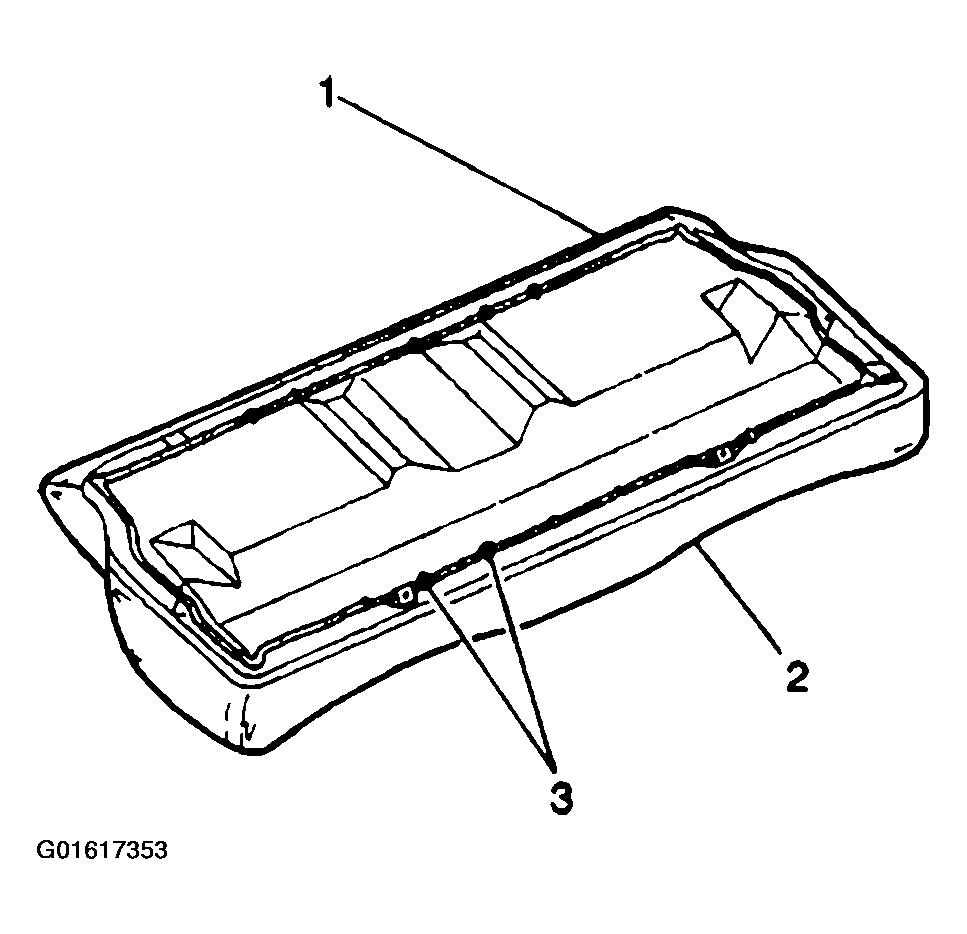

    Fig 1: Rear Seat Cushion, Trim Retainer Rings, & Cover
    G01617353Courtesy of GENERAL MOTORS CORP.
