Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to Seat Replacement - Front Bucket .
  2. Remove the front seat back. Refer to Seat Back Replacement - Front .
  3. Remove the trim retainer rings.
  4. Disengage the hook and loop retainers.
  5. If heated seat, disconnect the electrical connector for the seat heater. Pull the connector through the seat pad.

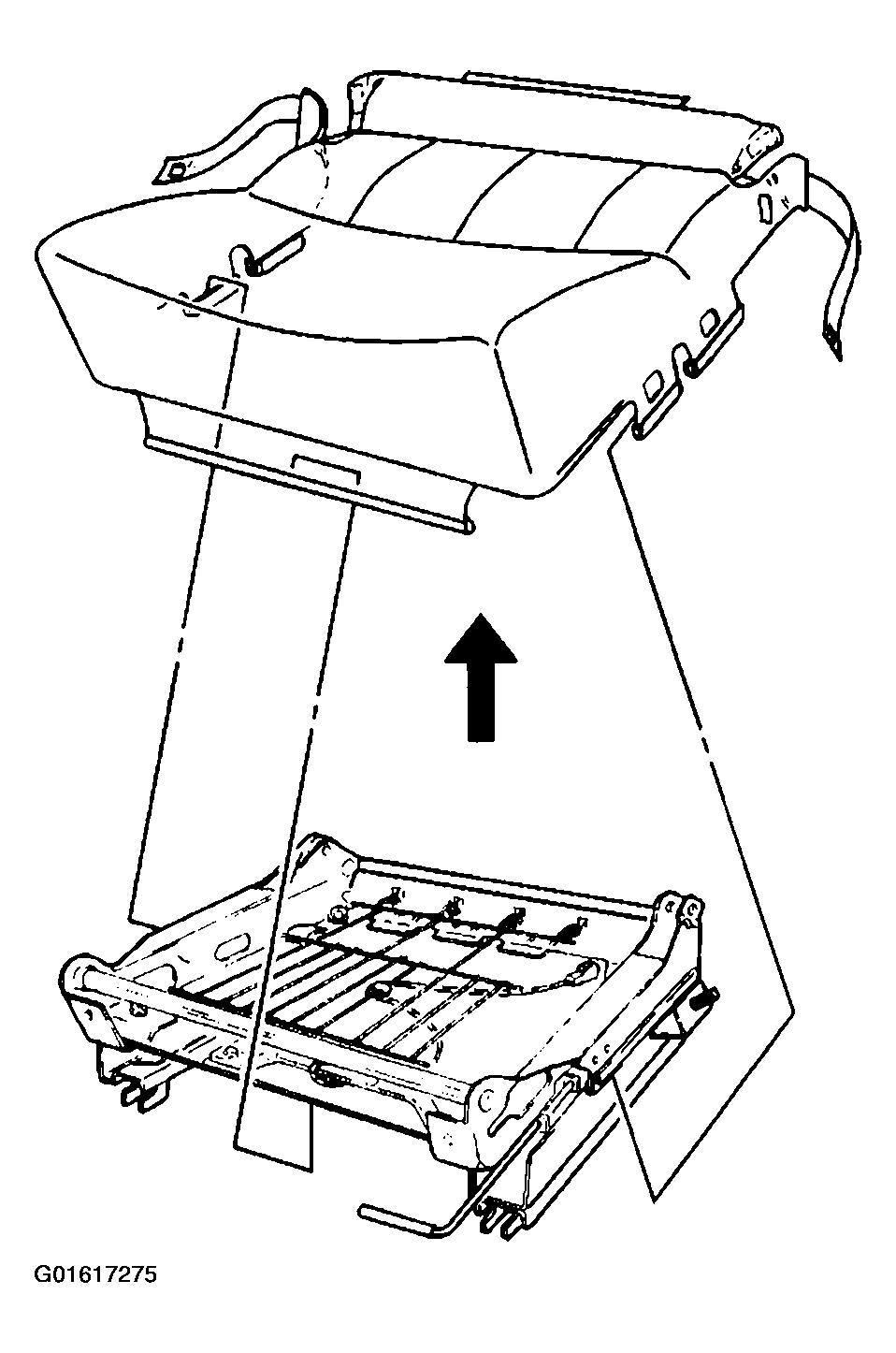

    Fig 1: Disengaging Hook & Loop Retainers
    G01617275Courtesy of GENERAL MOTORS CORP.
  6. Remove the front seat cushion cover.

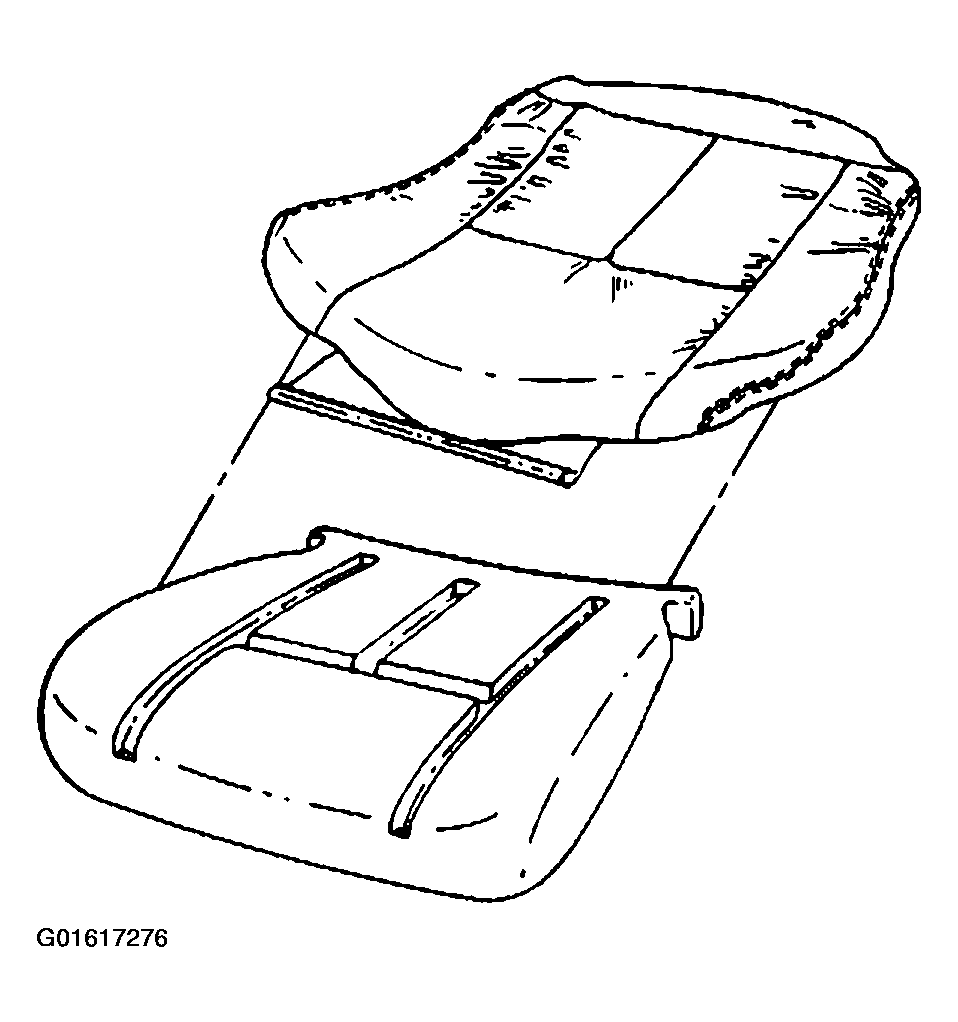

    Fig 2: Front Seat Cushion Cover
    G01617276Courtesy of GENERAL MOTORS CORP.
