Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front seat cushion cover.
  2. If heated seat, route the electrical connector through the seat pad. Connect the electrical connector for the seat heater.
  3. Engage the hook and loop retainers.

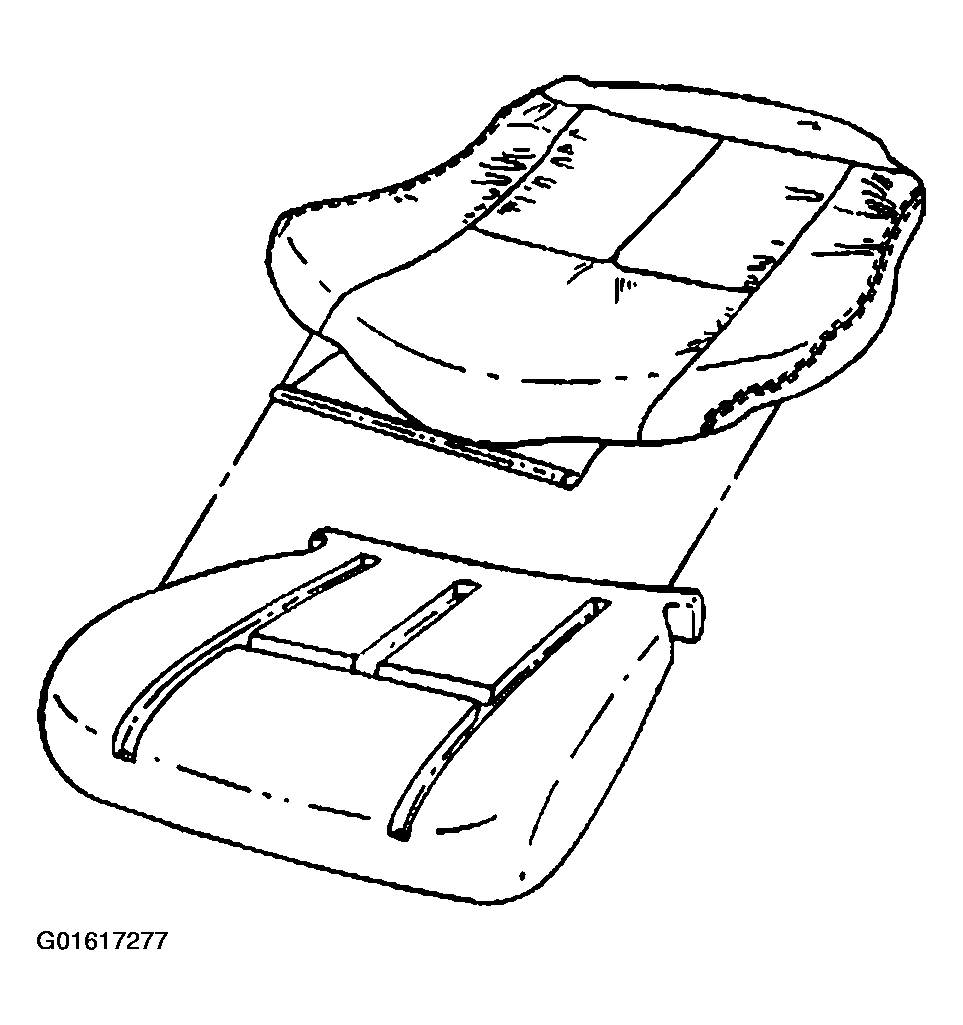

    Fig 1: Front Seat Cushion Cover
    G01617277Courtesy of GENERAL MOTORS CORP.
  4. Install the trim retainer rings.
  5. Install the front seat back. Refer to Seat Back Replacement - Front .
  6. Install the front seat. Refer to Seat Replacement - Front Bucket .

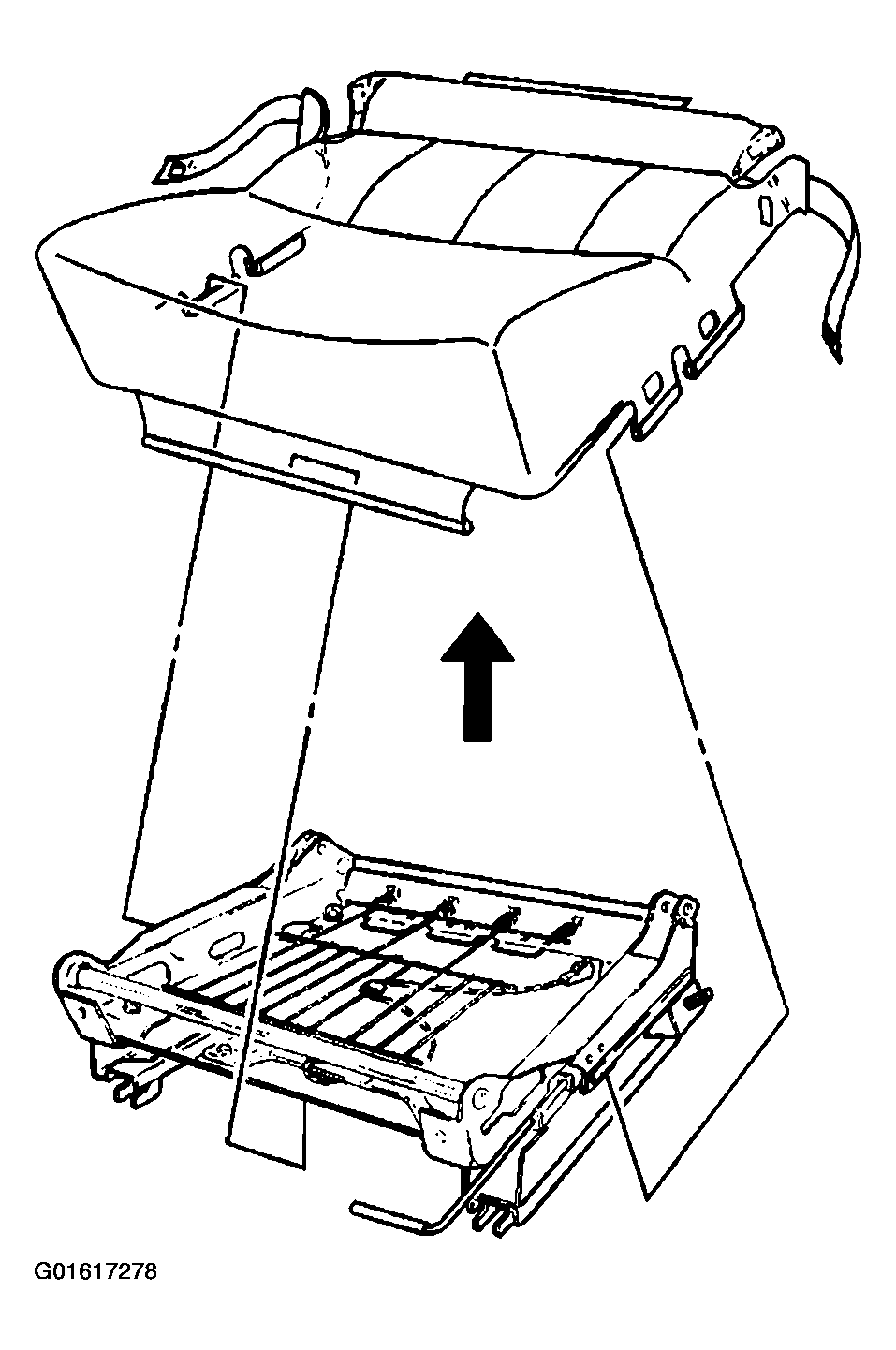

    Fig 2: Installing Trim Retainer Rings
    G01617278Courtesy of GENERAL MOTORS CORP.
