Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to Seat Replacement - Front Bucket .
  2. Remove the E/Z entry manual release knob. Refer to Inertia Latch Replacement .
  3. Remove the front seat trim panel. Refer to Trim Panel Replacement - Front Seat .

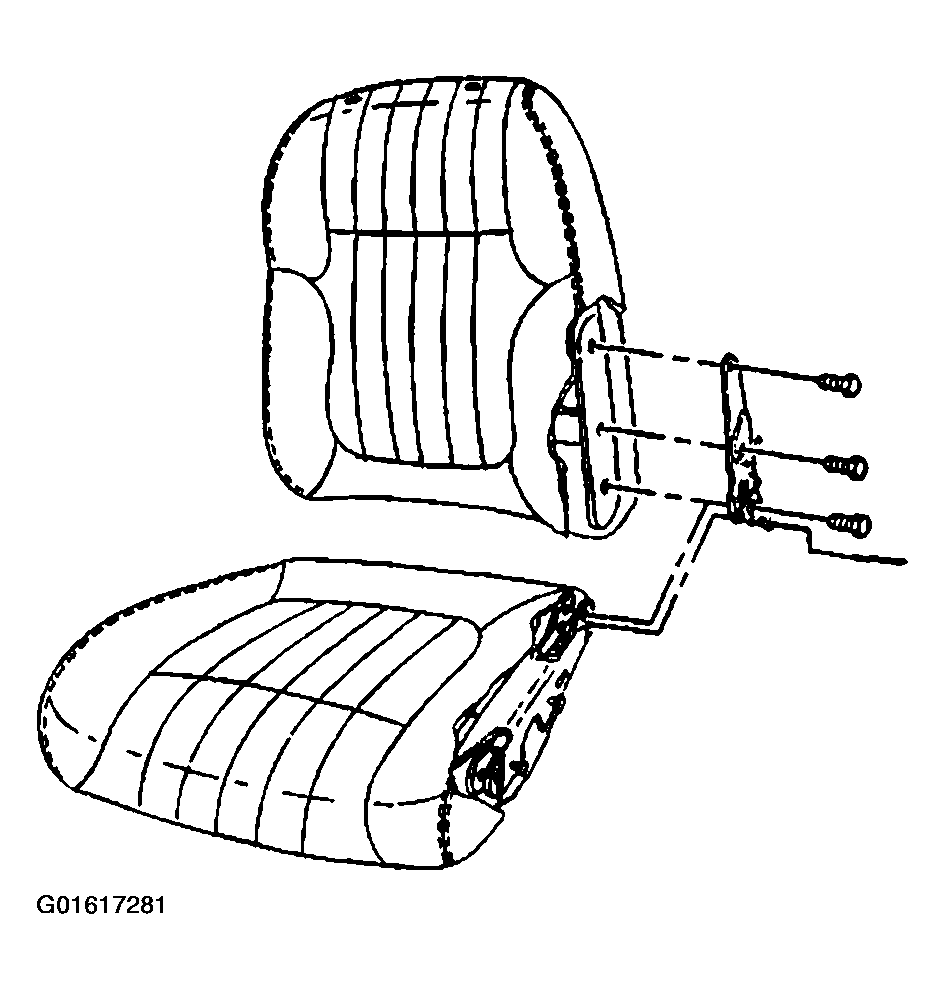

    Fig 1: Front Seat Back
    G01617281Courtesy of GENERAL MOTORS CORP.
  4. If equipped with heated seats, disconnect the seat back heater wire connector from under the seat cushion.

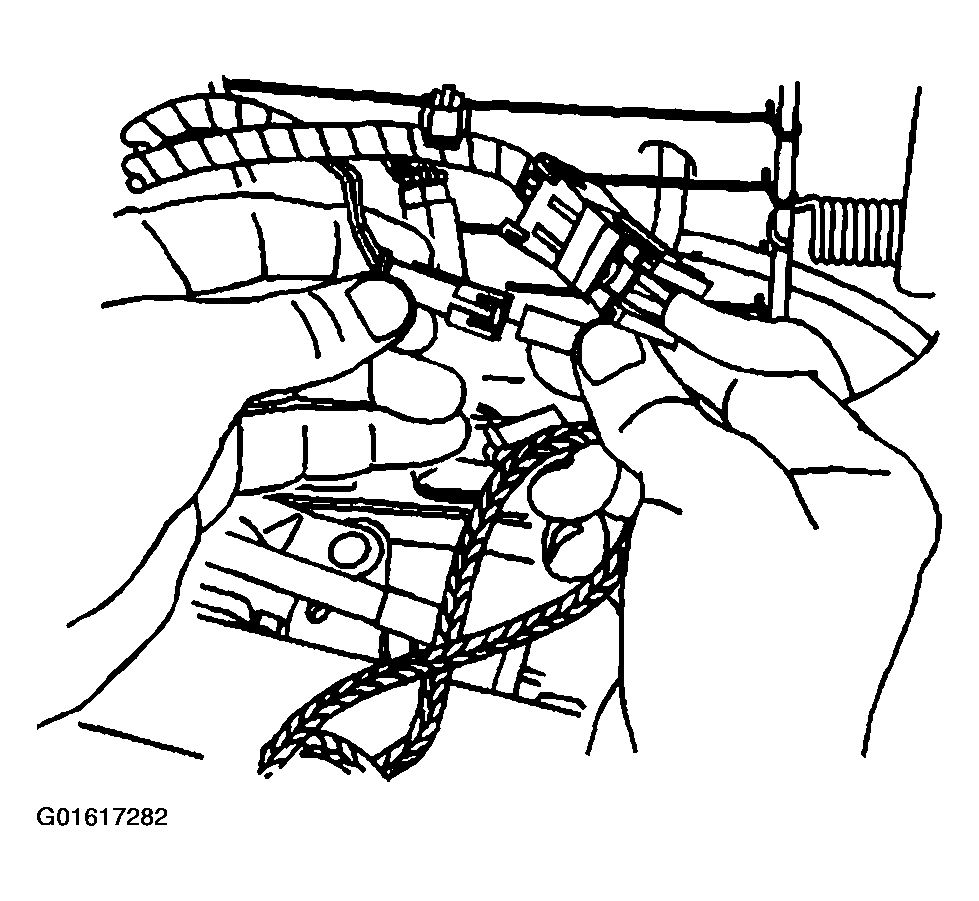

    Fig 2: Disconnecting Seat Back Heater Wire Connector
    G01617282Courtesy of GENERAL MOTORS CORP.
  5. If equipped with power lumbar, disconnect the lumbar modules (1,2)

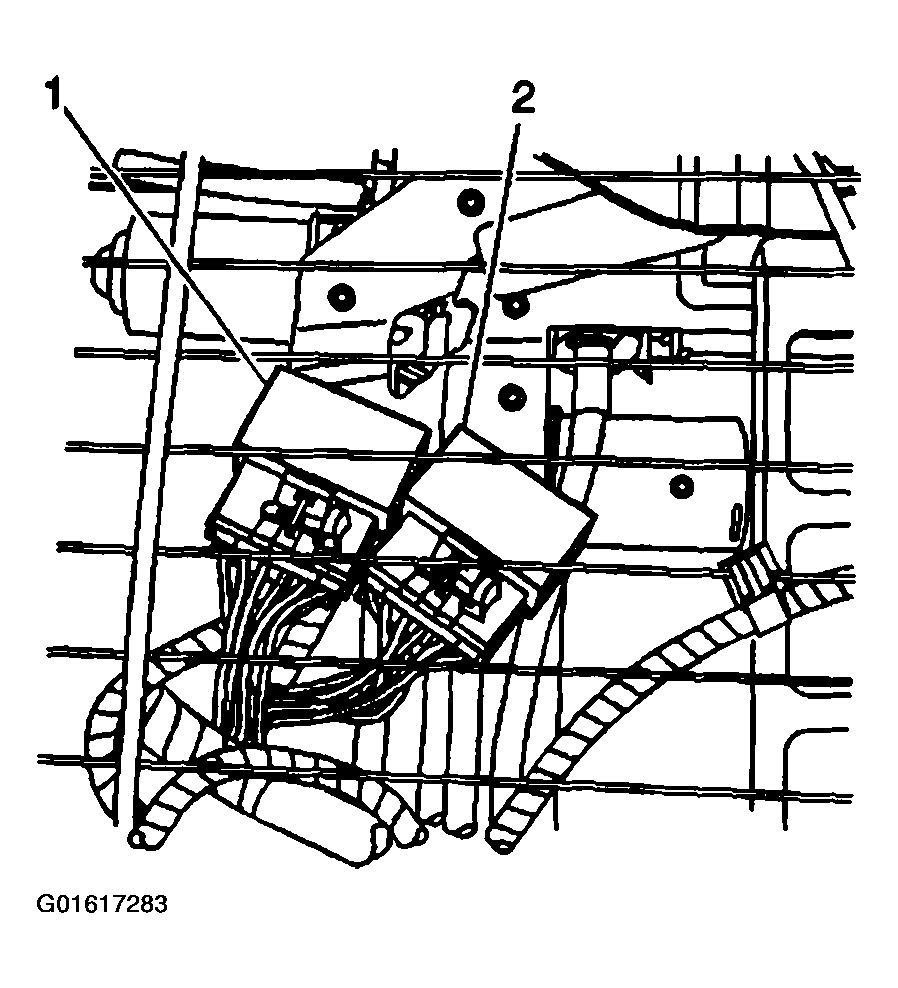

    Fig 3: Lumbar Modules
    G01617283Courtesy of GENERAL MOTORS CORP.
  6. Unfasten the J-retainer on the outboard side of the seat cushion cover.
  7. Slide up the sewn side of the cushion cover in order to expose the recliner/seat back attachment.
  8. Remove the roll pins from the hinge supports and the recliner. Discard the roll pins.
  9. Remove the pivot bolts which secure the recliner to the seat frame.
  10. Remove the seat back from the front seat.

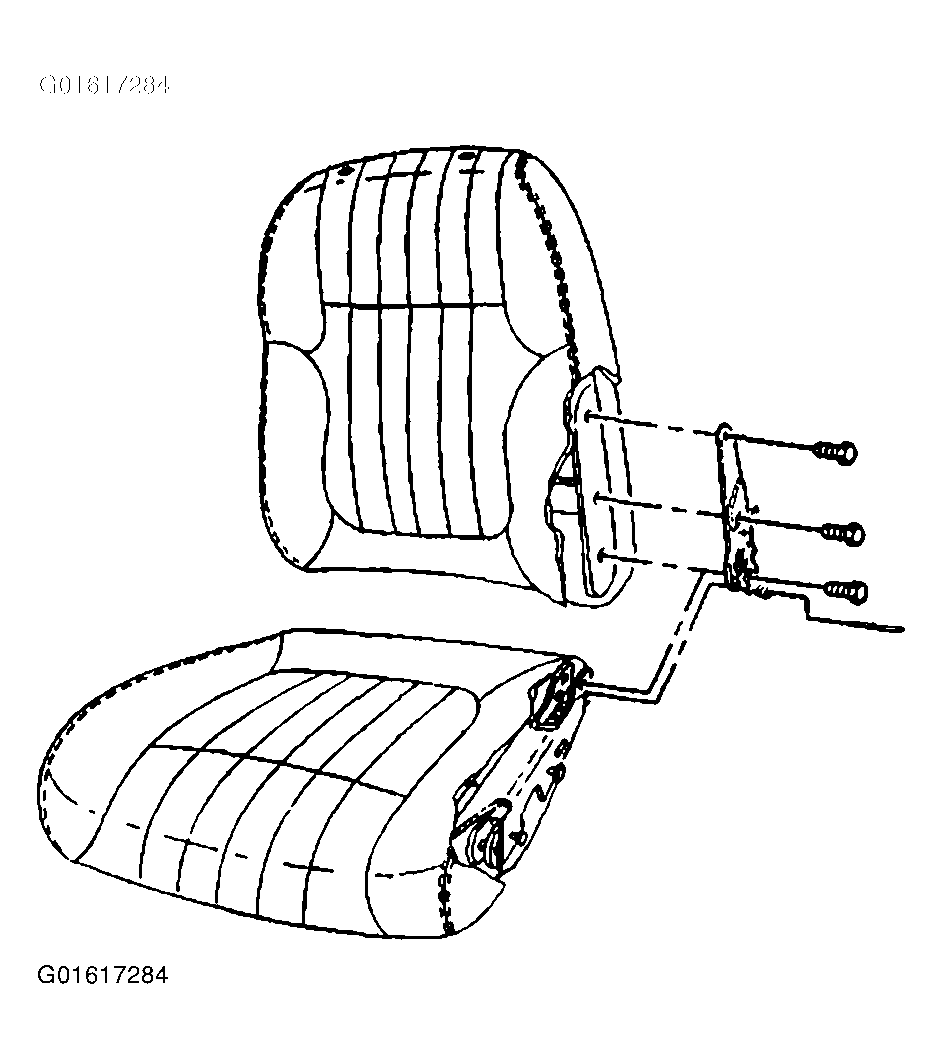

    Fig 4: Removing Front Seat Back
    G01617284Courtesy of GENERAL MOTORS CORP.
