Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the recliner control mechanism from the seat.
  2. Install the 2 new recliner front roll pins (3).
  3. Install the front seat back. Refer to Seat Back Replacement - Front .
  4. Install the front seat. Refer to Seat Replacement - Front Bucket .

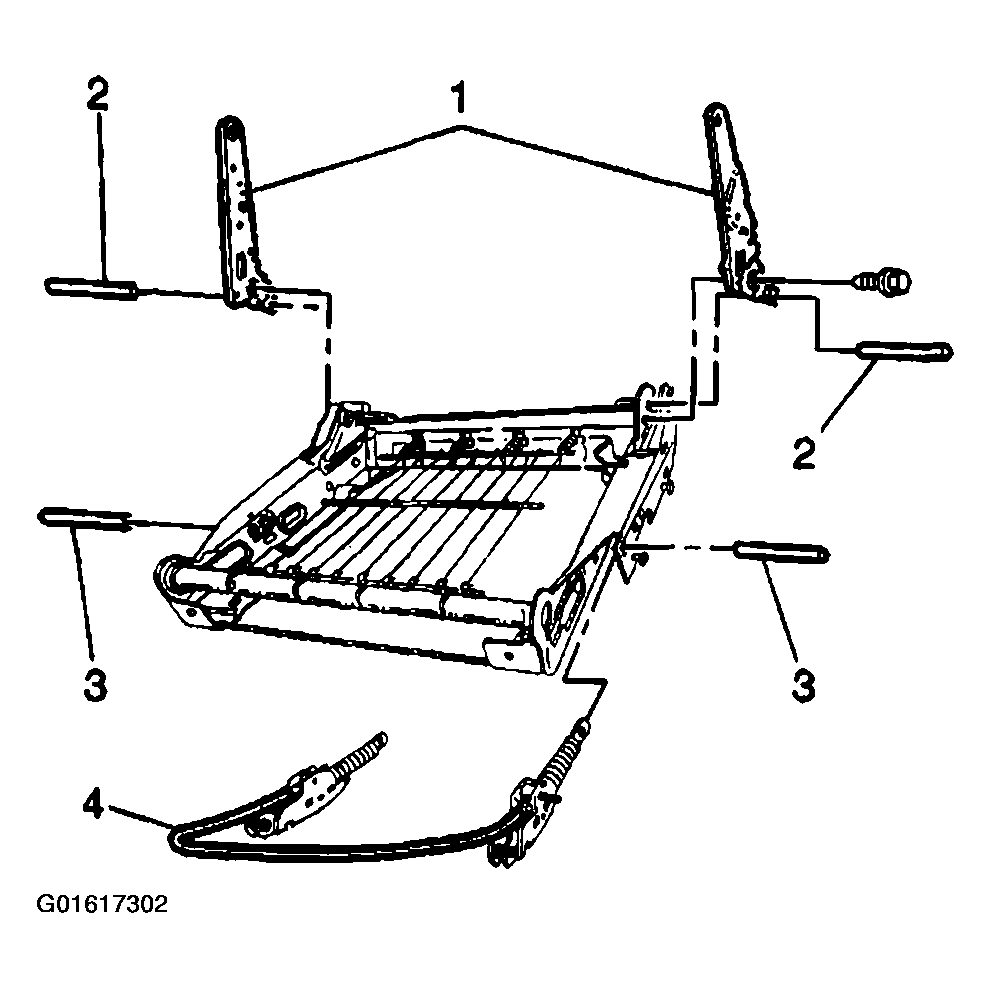

    Fig 1: Exploded View Of Front Seat Back Frame
    G01617302Courtesy of GENERAL MOTORS CORP.
