Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat pad on the frame.
  2. Install the rear seat back cover to the rear seat back pad. Refer to Seat Back Cover Replacement - Rear .
  3. Install the rear seat back. Refer to Seat Back Replacement - Rear (Stationary)  or Seat Back Replacement - Rear (Folding) .

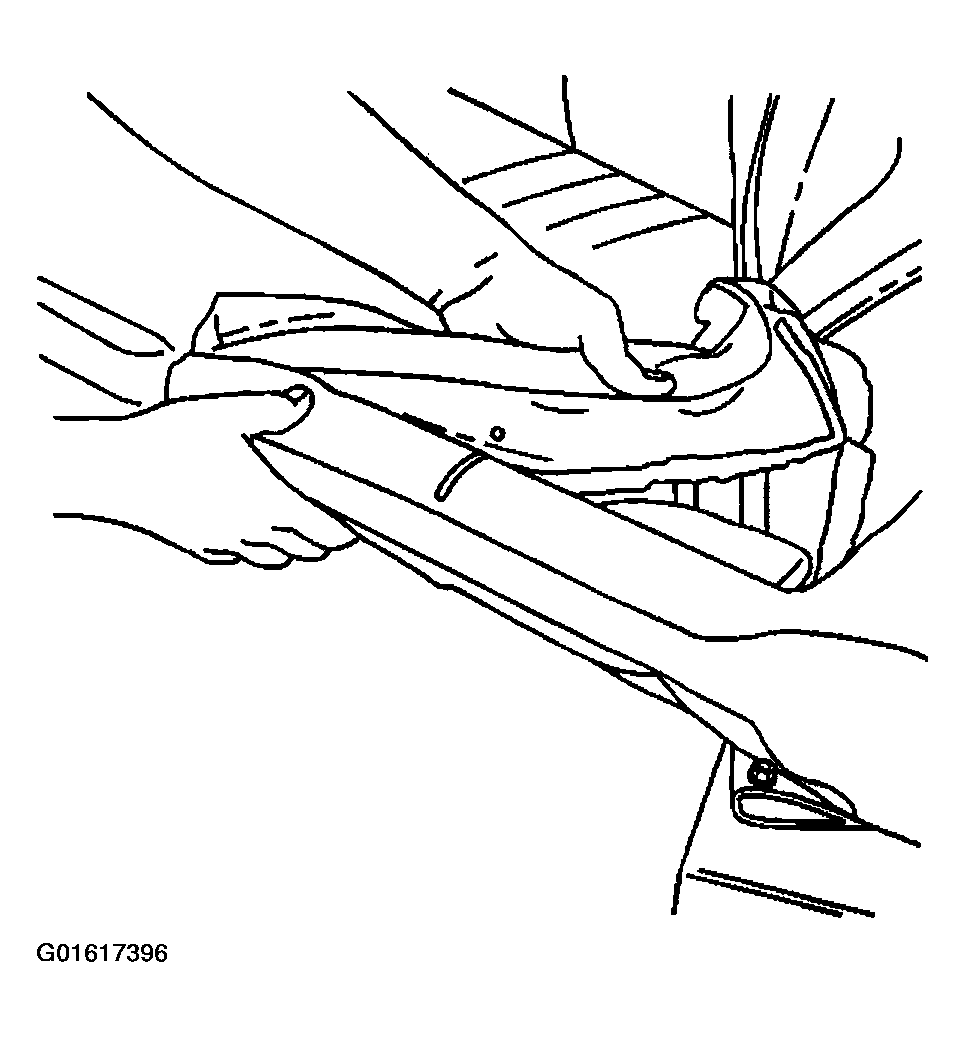

    Fig 1: Installing Rear Seat Back Pad
    G01617396Courtesy of GENERAL MOTORS CORP.
