Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat back cover. Refer to Seat Back Cover Replacement - Front .
  2. Remove the hog rings securing the seat back pad to the frame.

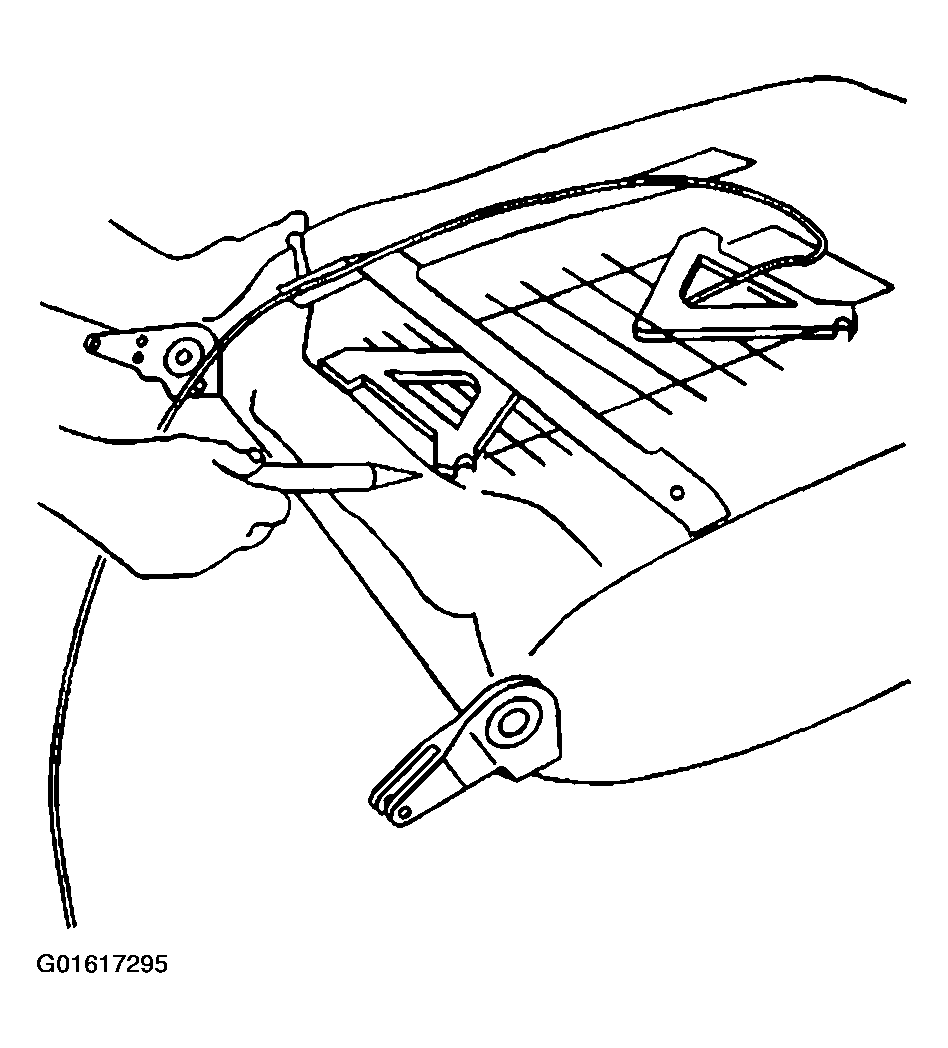

    Fig 1: Removing Hog Rings
    G01617295Courtesy of GENERAL MOTORS CORP.
  3. Remove the seat back pad from the seat frame.

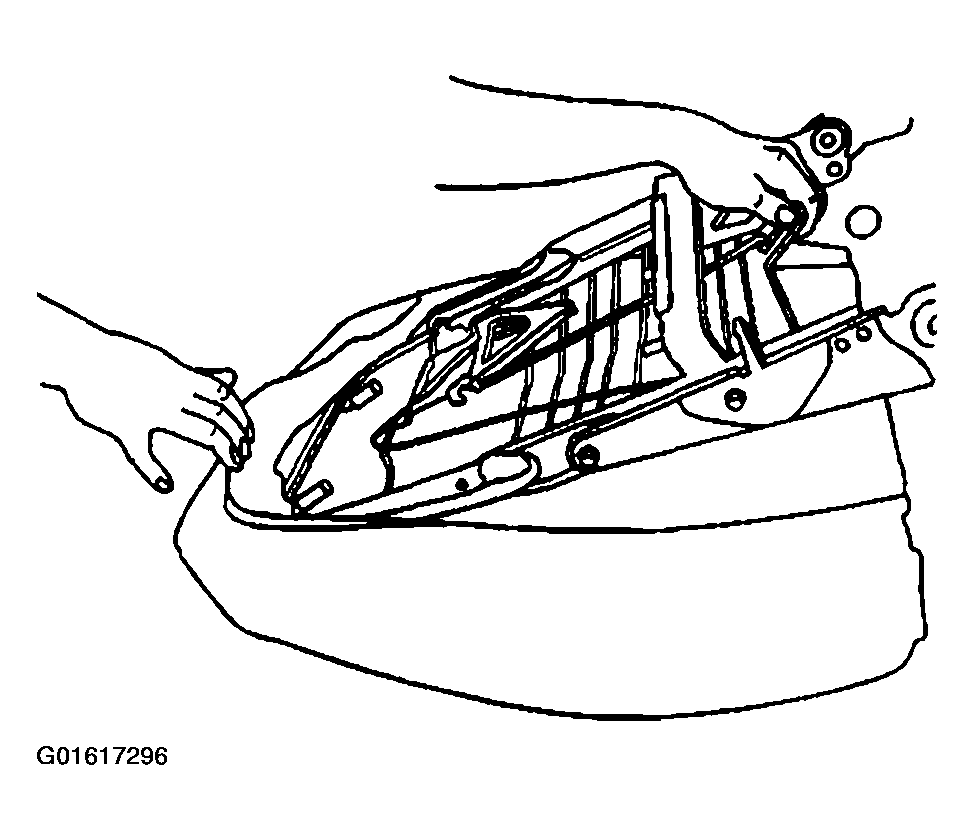

    Fig 2: Removing Seat Back Pad From Frame
    G01617296Courtesy of GENERAL MOTORS CORP.
