Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the rear seat bolster trim covers to the rear seat bolster pads.

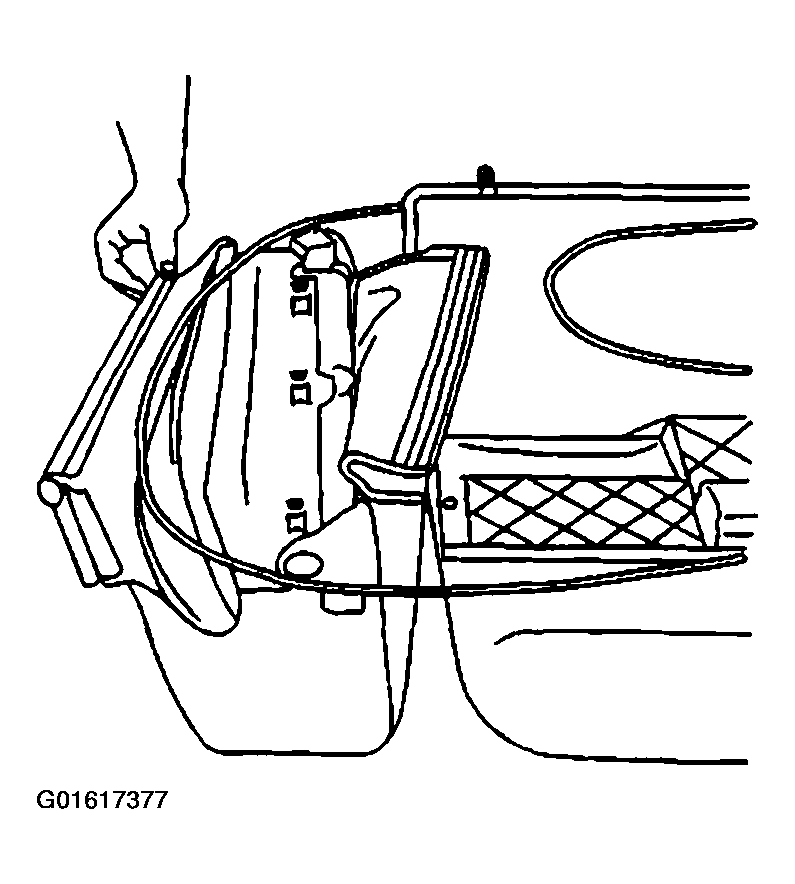

Fig 1: Installing Bolster Trim Covers
Courtesy of GENERAL MOTORS CORP.
Install the push-in retainers to the center of the bolsters, pressing into place until fully seated.

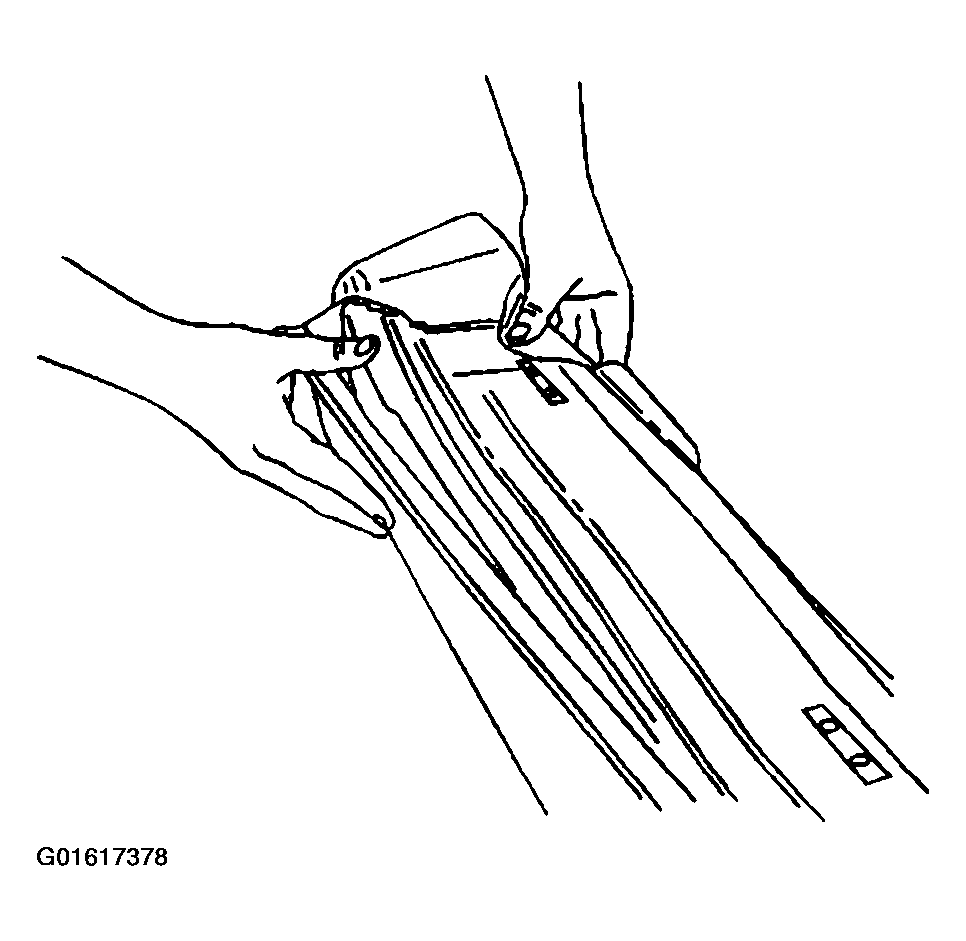

Fig 2: Installing Bolster Center Push-In Retainers
Courtesy of GENERAL MOTORS CORP.
Reposition the trim cover side flap on the bolster under and over the side rail of the seat back frame.
Reposition the release handle cable to the right seat bolster, if equipped.

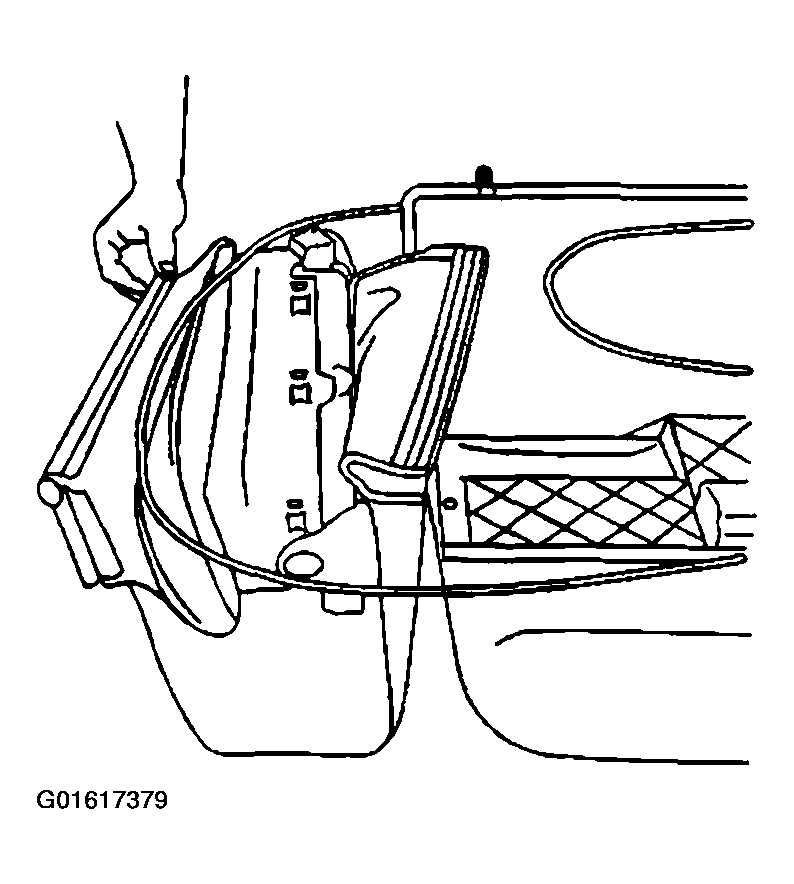

Fig 3: Repositioning Trim Cover Side Flap
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the bolts to the left and/or the right seat bolsters.
Tighten

Tighten the bolster bolts to 6 N.m (53 lb in).

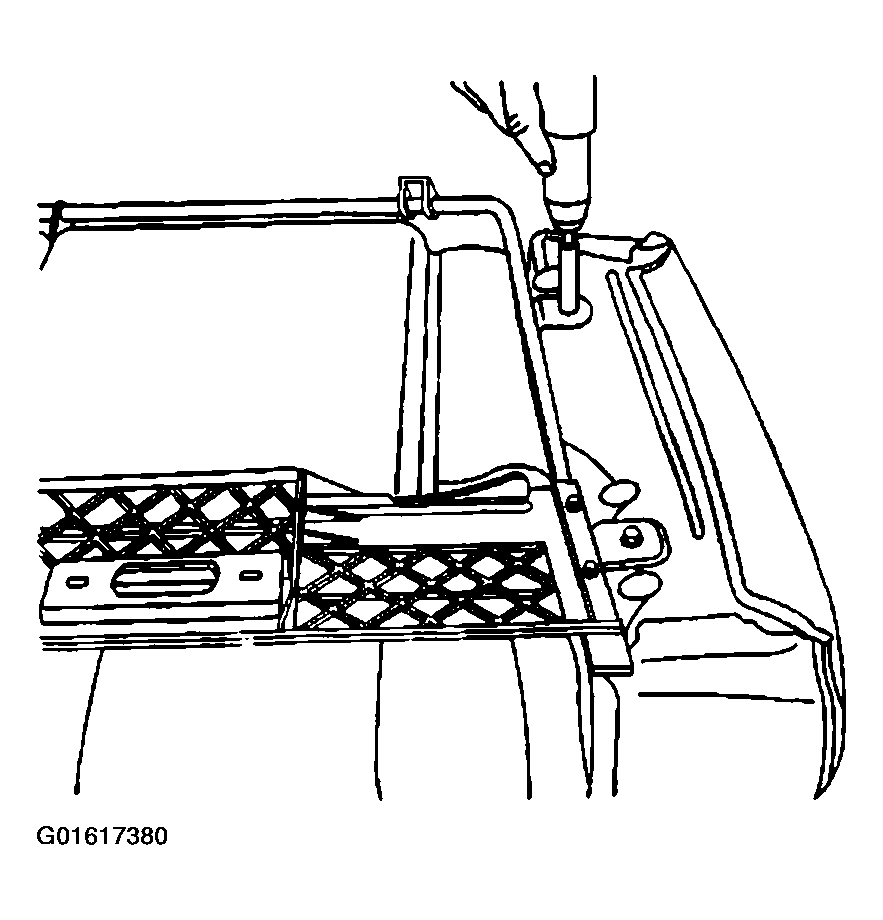

Fig 4: Installing Bolster Bolts
Courtesy of GENERAL MOTORS CORP.
Install the push-in tab from the end of the bolsters, pressing into place until fully seated.

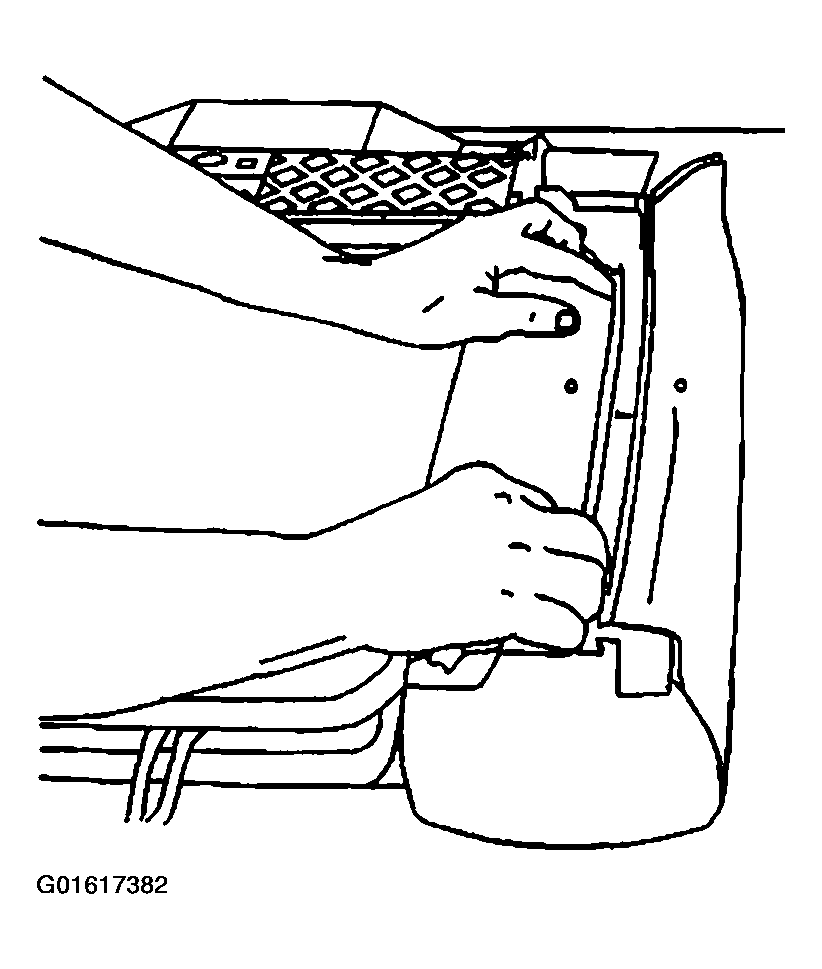

Fig 5: Installing Bolster End Push-In Tab
Courtesy of GENERAL MOTORS CORP.
Install the push-in J-hook retainers to the bolsters, pressing into place until fully seated.
Install the rear seat back. Refer to Seat Back Replacement - Rear (Stationary) or Seat Back Replacement - Rear (Folding) .

Fig 6: Installing Bolster Push-In J-Hook Retainers
Courtesy of GENERAL MOTORS CORP.
