Installation Procedure
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

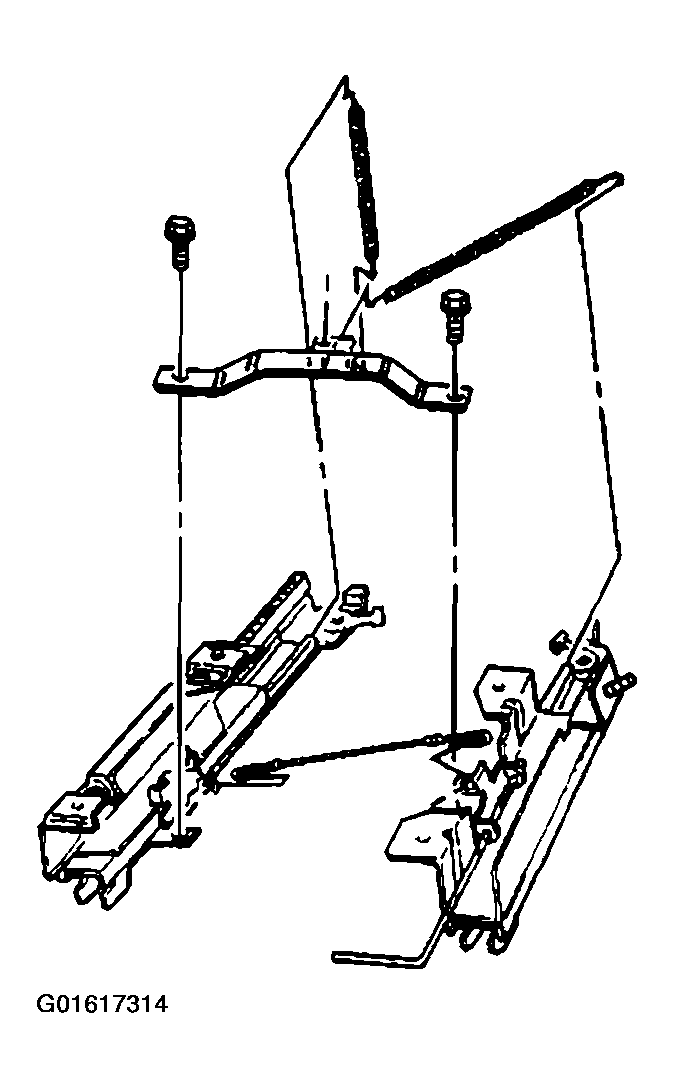

- Attach a crossbrace to the left and the right adjusters.
- Ensure that the tab bending downward at the center of the crossbrace faces the rear of the adjusters.NOTE: Refer to FASTENER NOTICE .
- Secure the crossbrace with two bolts.
Tighten
Tighten the crossbrace bolts to 6 N.m (53 lb in).
- Install the crosswire and assist springs.IMPORTANT: Install the right and left seat adjuster sliding mechanism in the same position that the mechanism had when you attached the adjuster-to-seat bottom frame.
Install the adjuster assembly to the floorpan attachments before you attach the adjusters to the seat. Use the floorpan as a guide during assembly in order to ensure correct adjuster alignment. The floorpan will act as an assembly fixture.
- Install the adjuster assembly to the floorpan.
- Install the seat adjuster to floorpan bolts.
Tighten
Tighten the bolts to 42 N.m (31 lb ft).
- Position the seat to the adjuster assembly.
- Install the adjuster to the seat cushion frame bolts.
Tighten
Tighten the adjuster to the seat cushion frame bolts to 24 N.m (18 lb ft).
- Move the seat back to the upright position.
- Inspect the operation of the manual seat adjusters.
- Remove the front seat from the vehicle. Refer to Seat Replacement - Front Bucket .
- Install the seat cushion cover and pad. Refer to Seat Cushion Replacement - Front (Pad) .
- Install the front seat trim panels. Refer to Trim Panel Replacement - Front Seat .
- Install the E/Z entry cable to the adjuster, if equipped.
- Install the front seat in the vehicle. Refer to Seat Replacement - Front Bucket .
