Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to Seat Replacement - Front Bucket .
  2. Disconnect the 3 electrical wiring harness connectors from the seat adjuster motors.

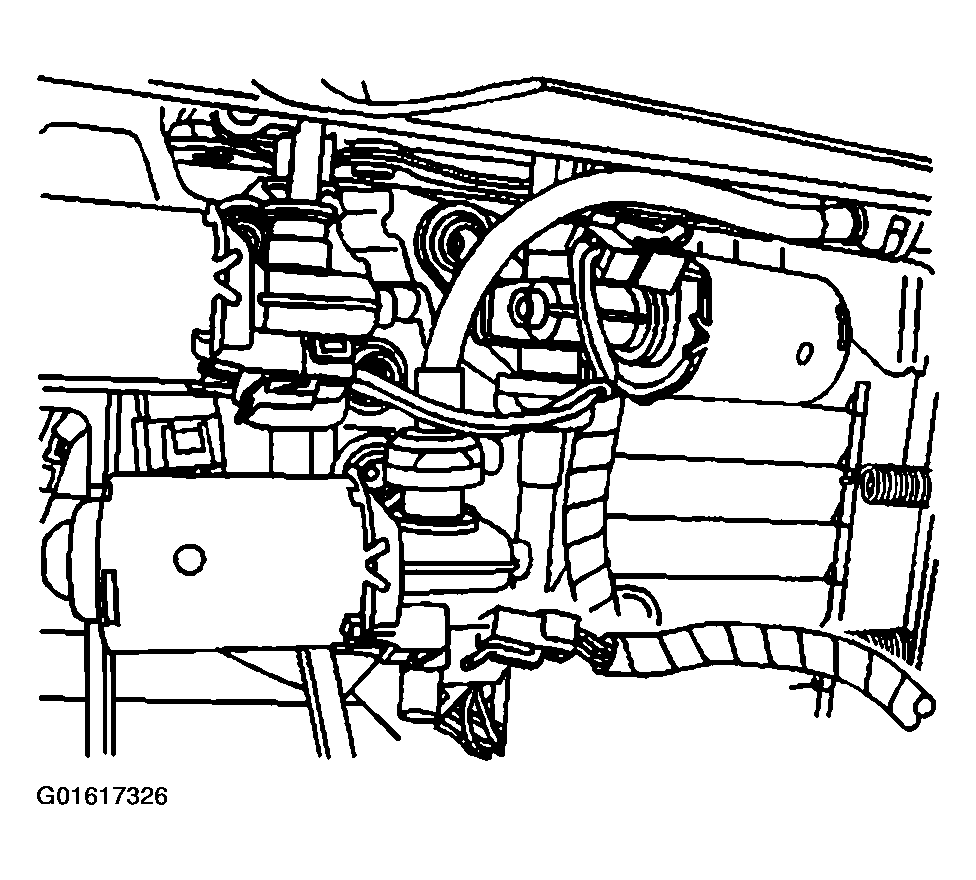

    Fig 1: Seat Adjuster Motors Electrical Connectors
    G01617326Courtesy of GENERAL MOTORS CORP.
  3. If equipped, remove the push-in retainer (2) and tab (1) on the power lumbar harness from the motor bracket.
  4. Remove the nut from the seat adjuster motor bracket.

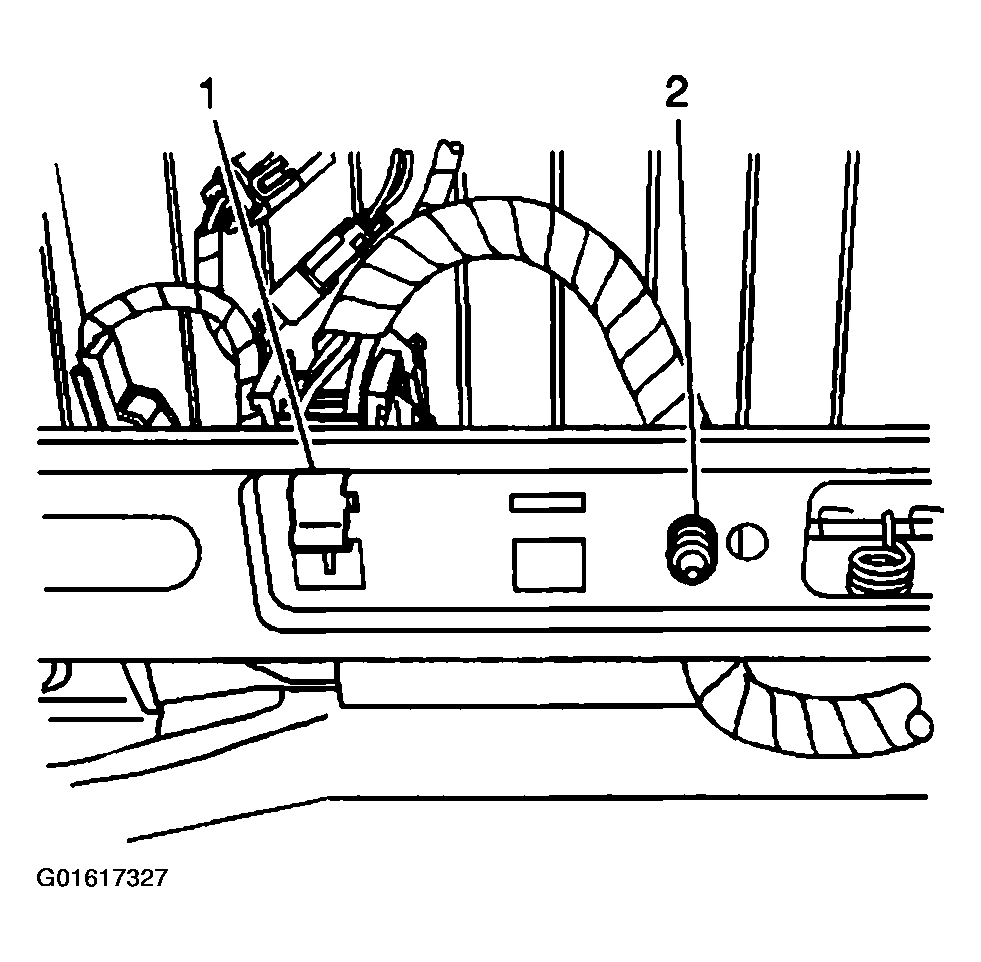

    Fig 2: Push-In Retainer & Tab
    G01617327Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the drive cables from the seat adjuster motors. Refer to Drive Cable Replacement - Horizontal and Vertical .
  6. Remove the seat adjuster motor assembly from the front seat adjuster.

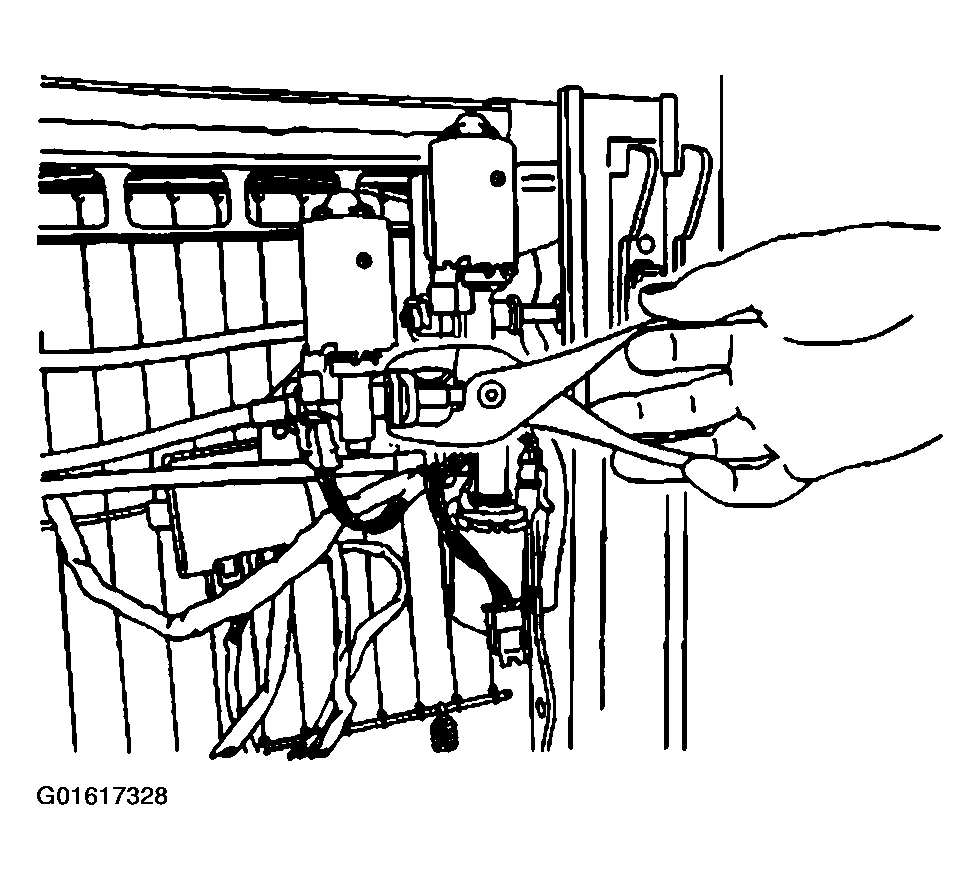

    Fig 3: Removing Seat Adjuster Motor Assembly
    G01617328Courtesy of GENERAL MOTORS CORP.
