Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat adjuster motor assembly to the front seat adjuster.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the nut to the seat adjuster motor bracket.

    Tighten

    Tighten the nut to 10 N.m (89 lb in).

  3. Install the drive cables to the seat adjuster motors. Refer to Drive Cable Replacement - Horizontal and Vertical .

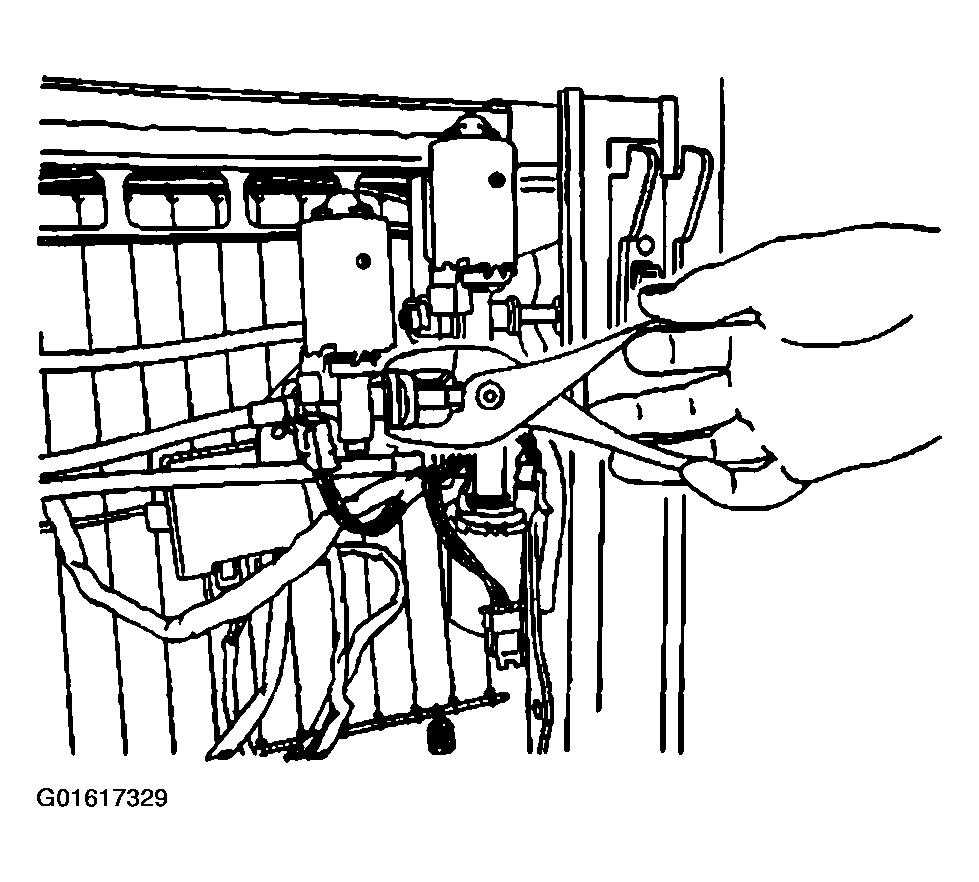

    Fig 1: Positioning Seat Adjuster Motor Assembly To Front Seat Adjuster
    G01617329Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical wiring harness connectors to the seat adjuster motors.

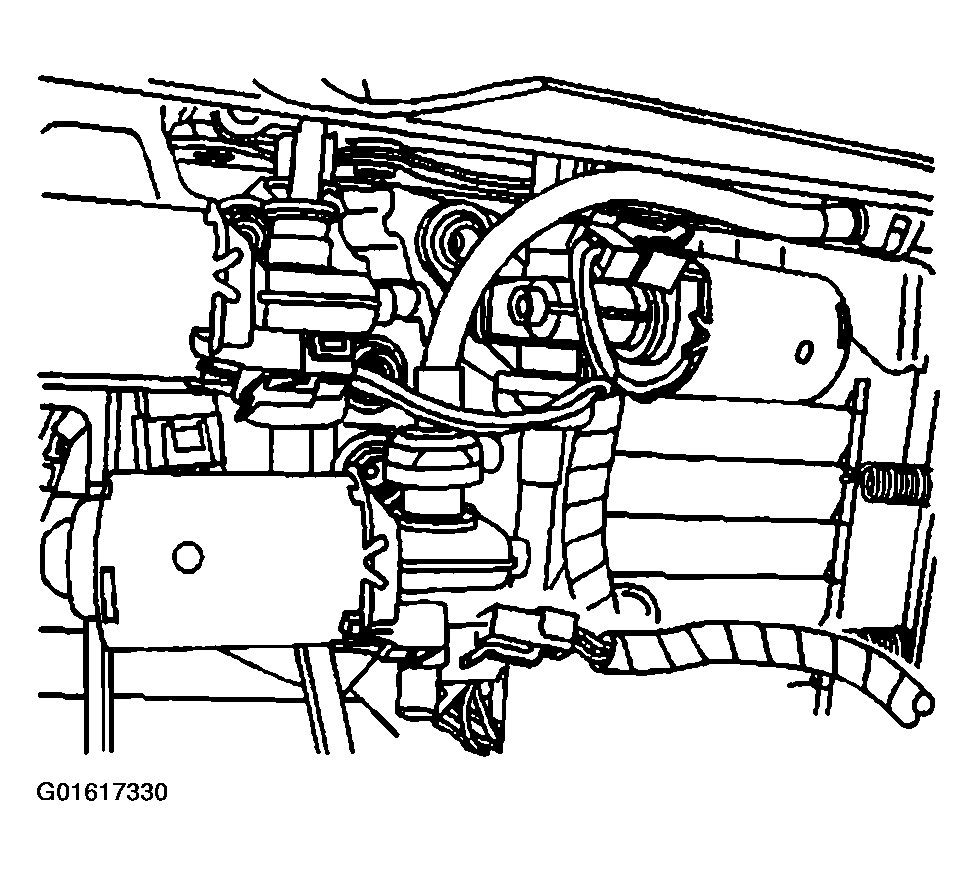

    Fig 2: Seat Adjuster Motors Electrical Connectors
    G01617330Courtesy of GENERAL MOTORS CORP.
  5. If equipped, install the push-in retainer (2) and tab (1) from the power lumbar harness to the motor bracket.
  6. Install the front seat. Refer to Seat Replacement - Front Bucket .

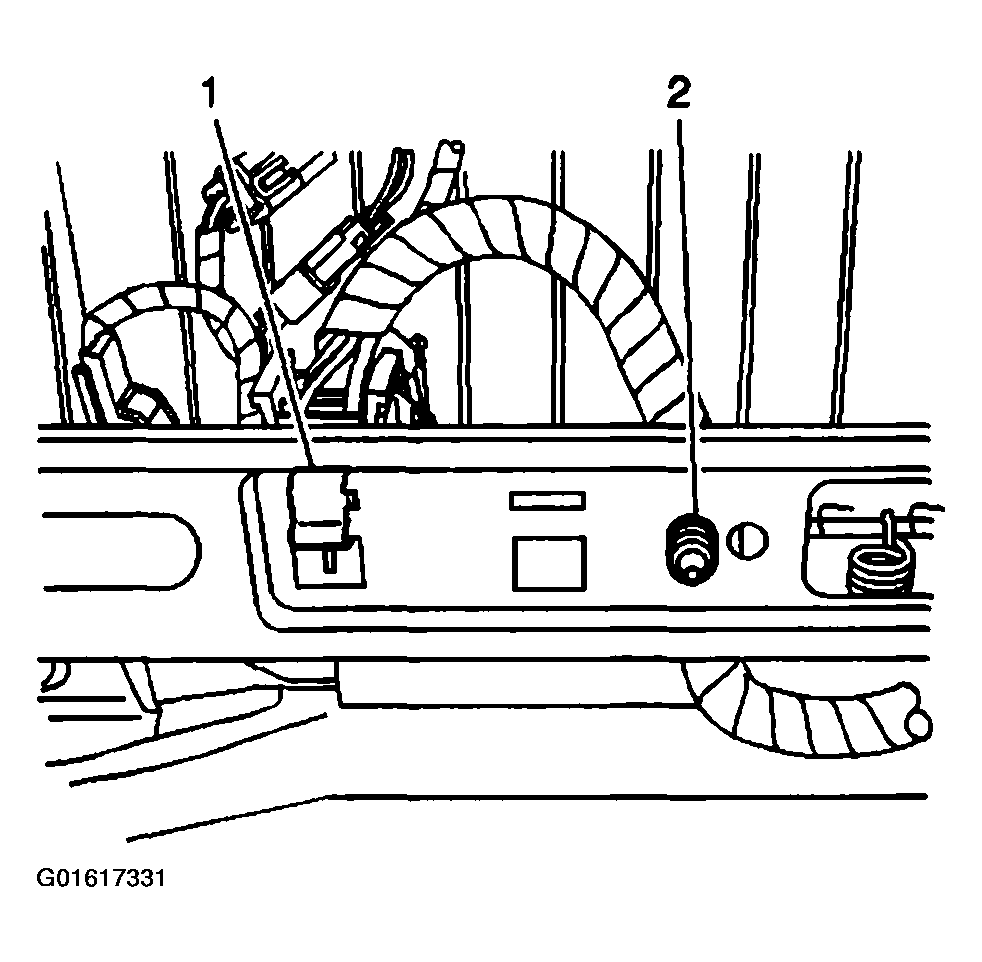

    Fig 3: Push-In Retainer & Tab
    G01617331Courtesy of GENERAL MOTORS CORP.
