Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim plate from the front floor console. Refer to TRIM PLATE REPLACEMENT -- FRONT FLOOR CONSOLE .
  2. Disconnect the electrical connector from the wiring harness in the front floor console.
  3. Using a small flat-bladed tool, release the retainer clips from the heated seat switch.
  4. Remove the heated seat switch from the console trim plate.

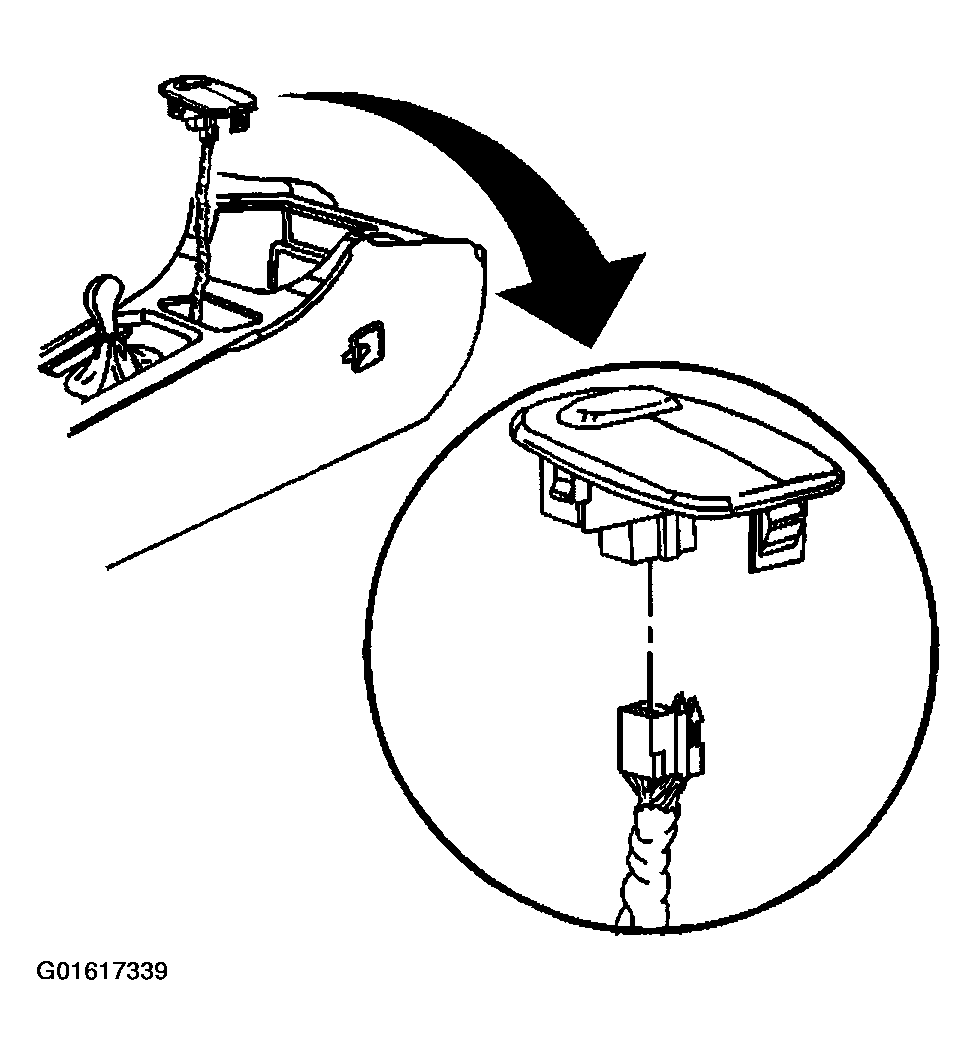

    Fig 1: Front Heated Switch
    G01617339Courtesy of GENERAL MOTORS CORP.
