Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the head restraint. Refer to Head Restraint Replacement - Front Seat .
  2. Position the front seat back to the full-up position.
  3. Unhook the front seat back trim cover J-retainer.
  4. Carefully reach inside the seat back between the seat back cover and the seat back pad.

    Pinch the bottom of the guide together.

  5. Pull the guide upwards from the seat back frame.

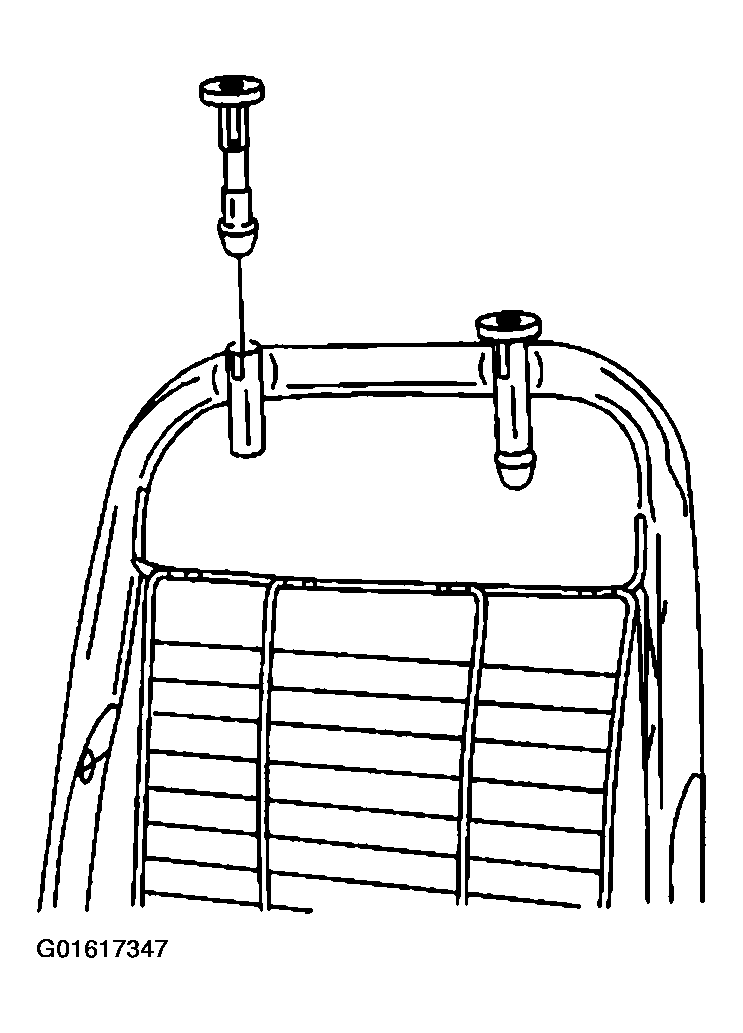

    Fig 1: Head Restraint Retainer
    G01617347Courtesy of GENERAL MOTORS CORP.
