Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the guide into the seat back frame.
  2. Firmly push the guide inward in order to lock the guide into the seat back frame.
  3. Install the hook front seat back trim cover J-retainer.
  4. Install the head restraint. Refer to Head Restraint Replacement - Front Seat .
  5. Return the seat back to the original position.

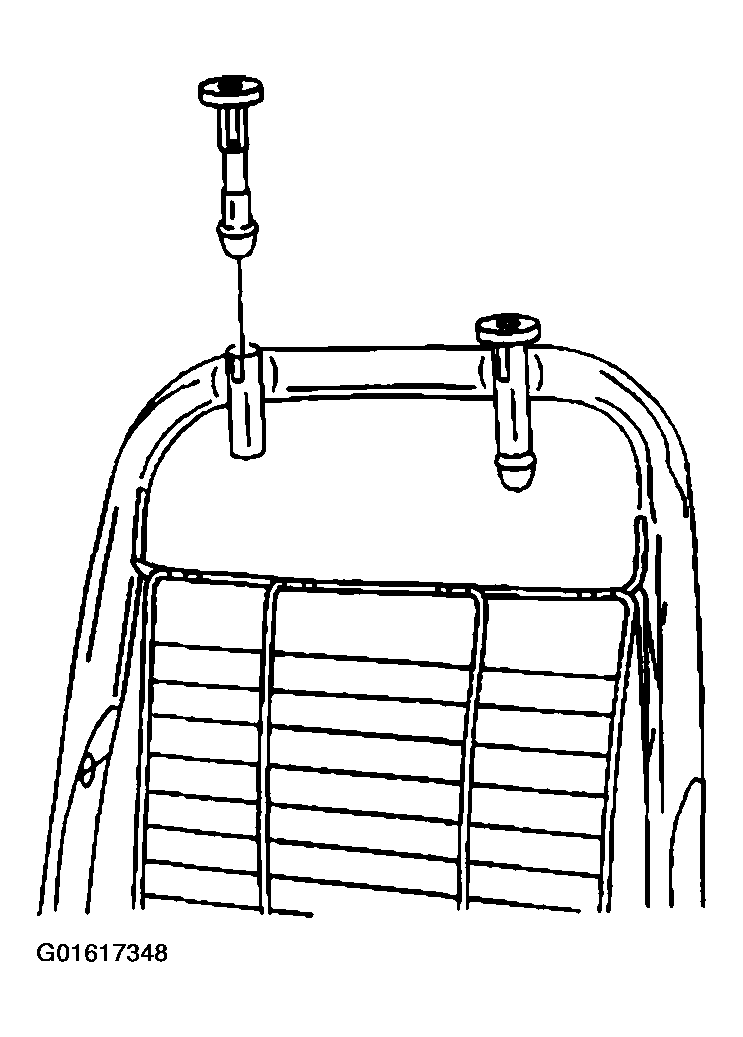

    Fig 1: Head Restraint Retainer
    G01617348Courtesy of GENERAL MOTORS CORP.
