Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the notches facing the front, push the support rods fully into the head restraint.
  2. Install the head restraint (1) from the seat back (3).
  3. Push the head restraint to the full-down position.
  4. Raise the head restraint in order to ensure that the restraint stops at the detent.
  5. Return the head restraint to the original position.

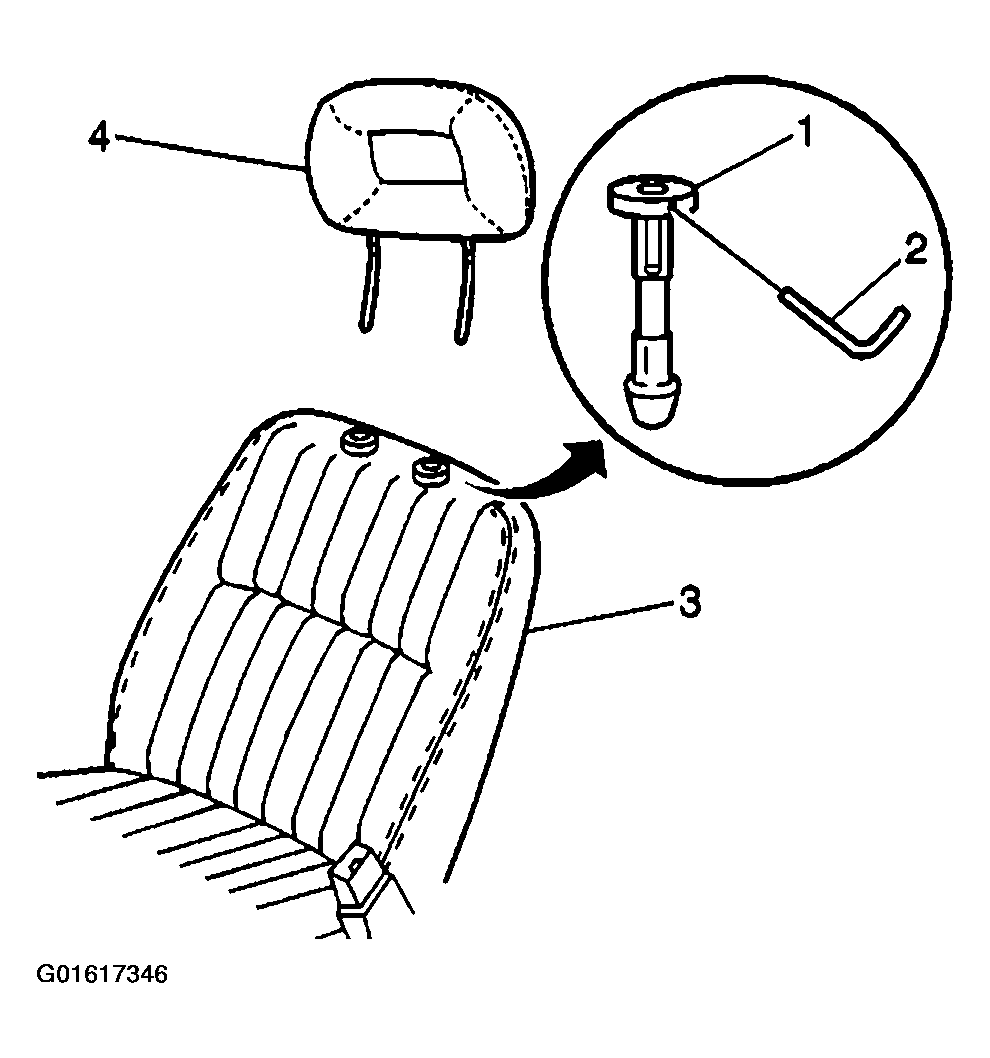

    Fig 1: Front Seat Head Restraint
    G01617346Courtesy of GENERAL MOTORS CORP.
