Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back. Refer to Seat Back Replacement - Rear (Stationary)  or Seat Back Replacement - Rear (Folding) .
  2. Remove the bolts from the rear seat armrest.
  3. Remove the rear seat armrest the rear seat back.

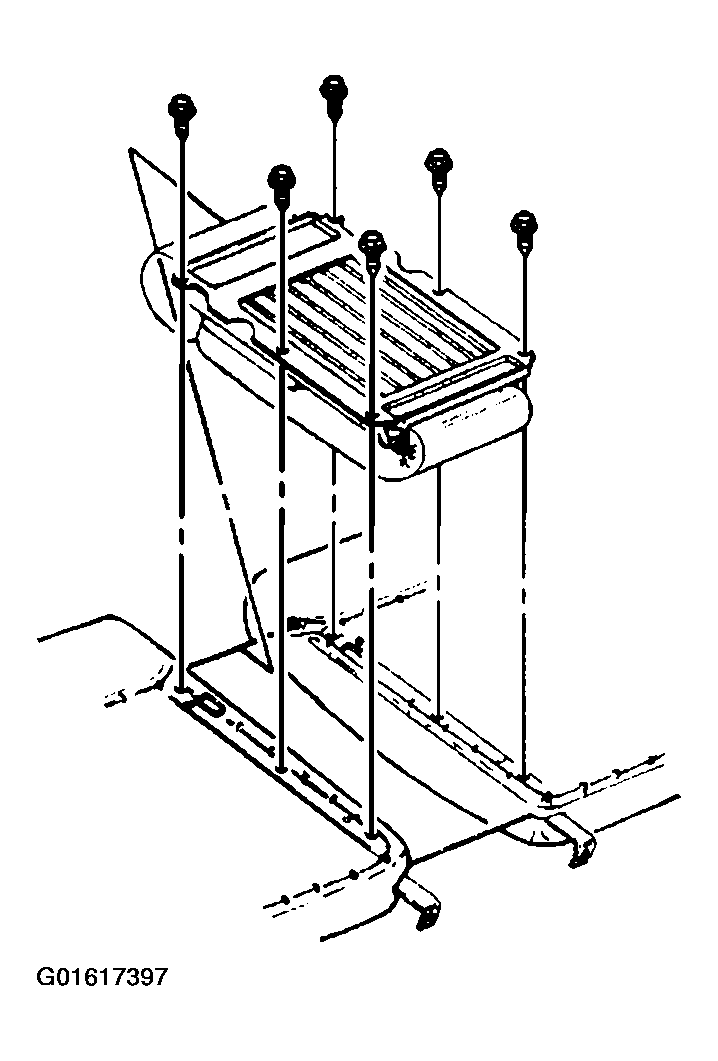

    Fig 1: Rear Seat Armrest
    G01617397Courtesy of GENERAL MOTORS CORP.
