Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat armrest to the rear seat back.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts to the rear seat armrest.

    Tighten

    Tighten the rear seat armrest bolts to 5 N.m (44 lb in).

  3. Install the rear seat back. Refer to Seat Back Replacement - Rear (Stationary)  or Seat Back Replacement - Rear (Folding) .

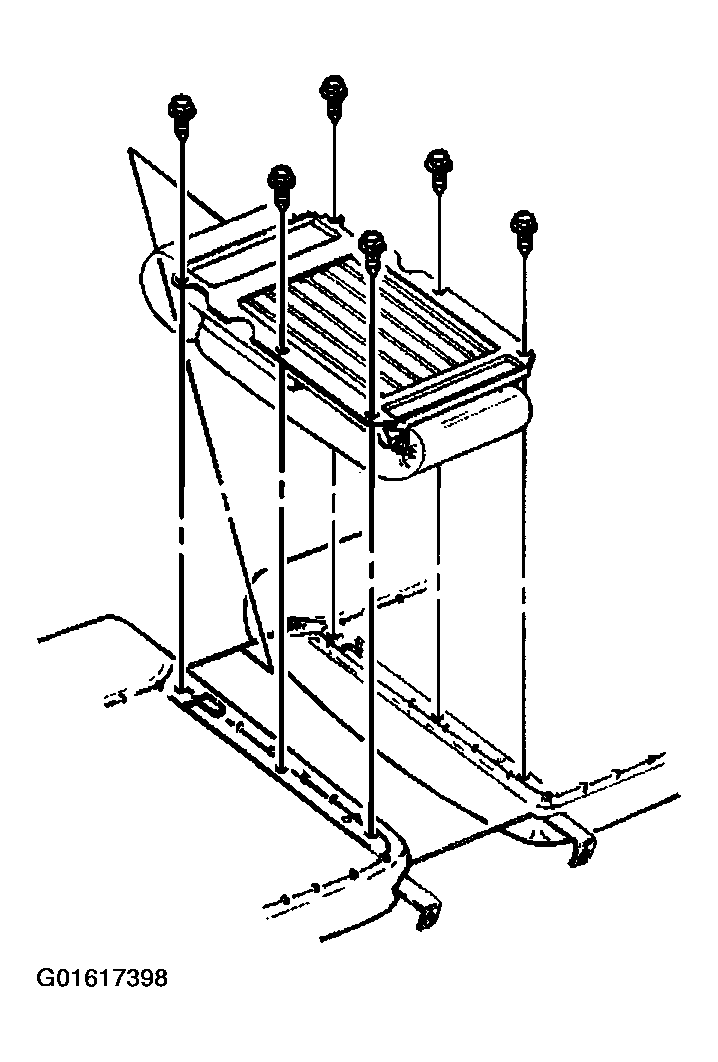

    Fig 1: Rear Seat Armrest
    G01617398Courtesy of GENERAL MOTORS CORP.
