Heated Seat Inoperative

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

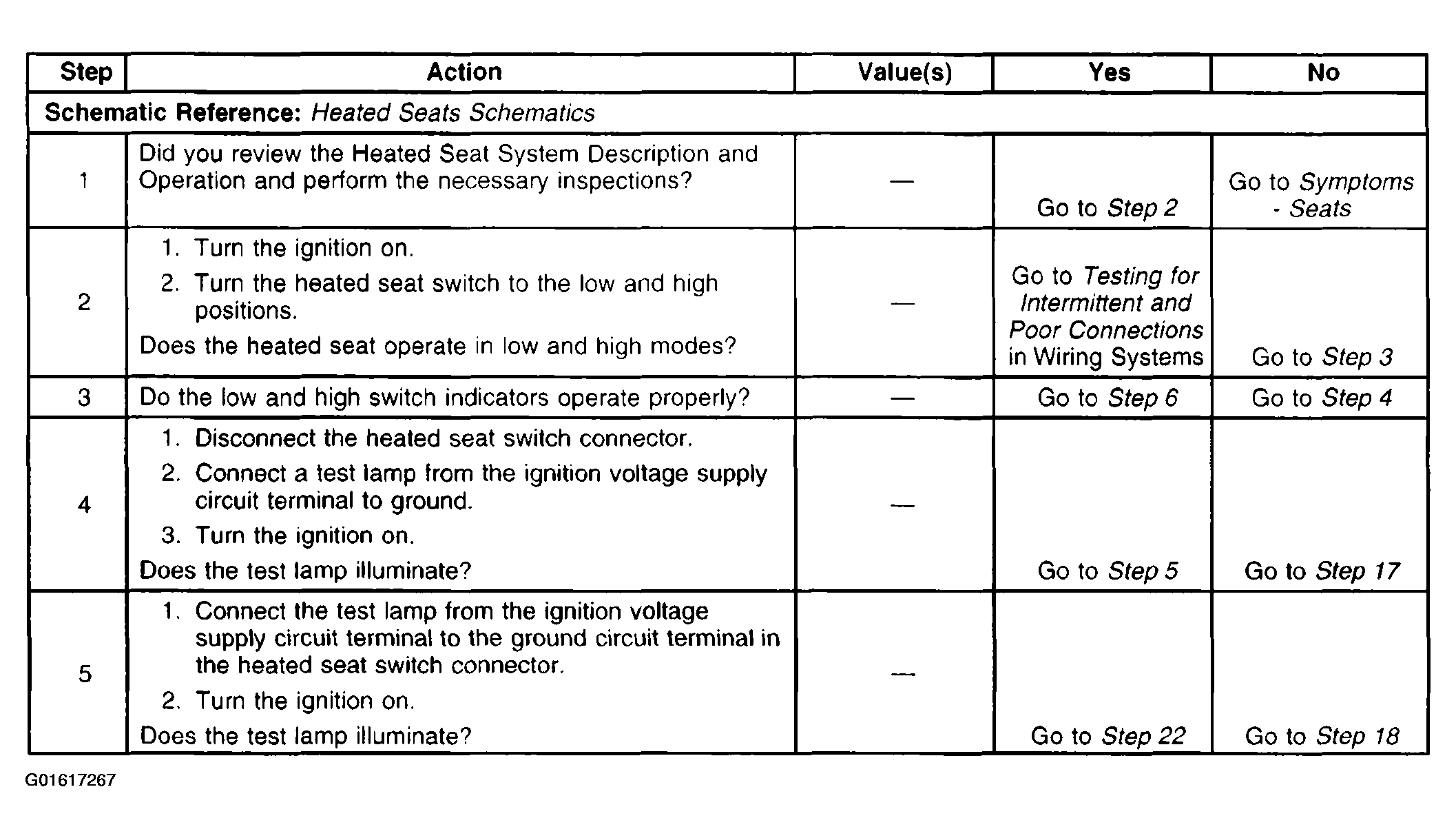

Fig 1: Heated Seat Inoperative (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

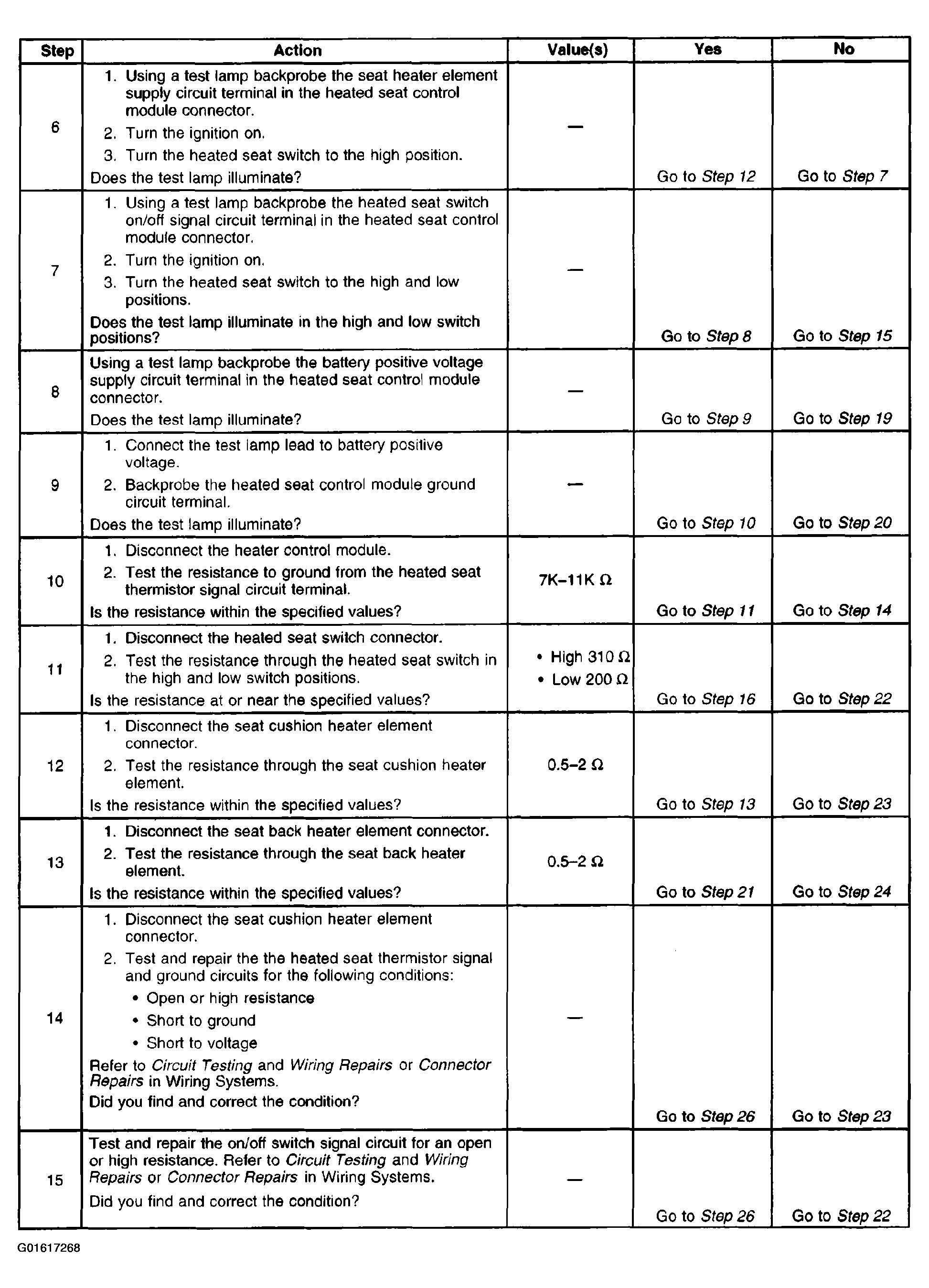

Fig 2: Heated Seat Inoperative (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

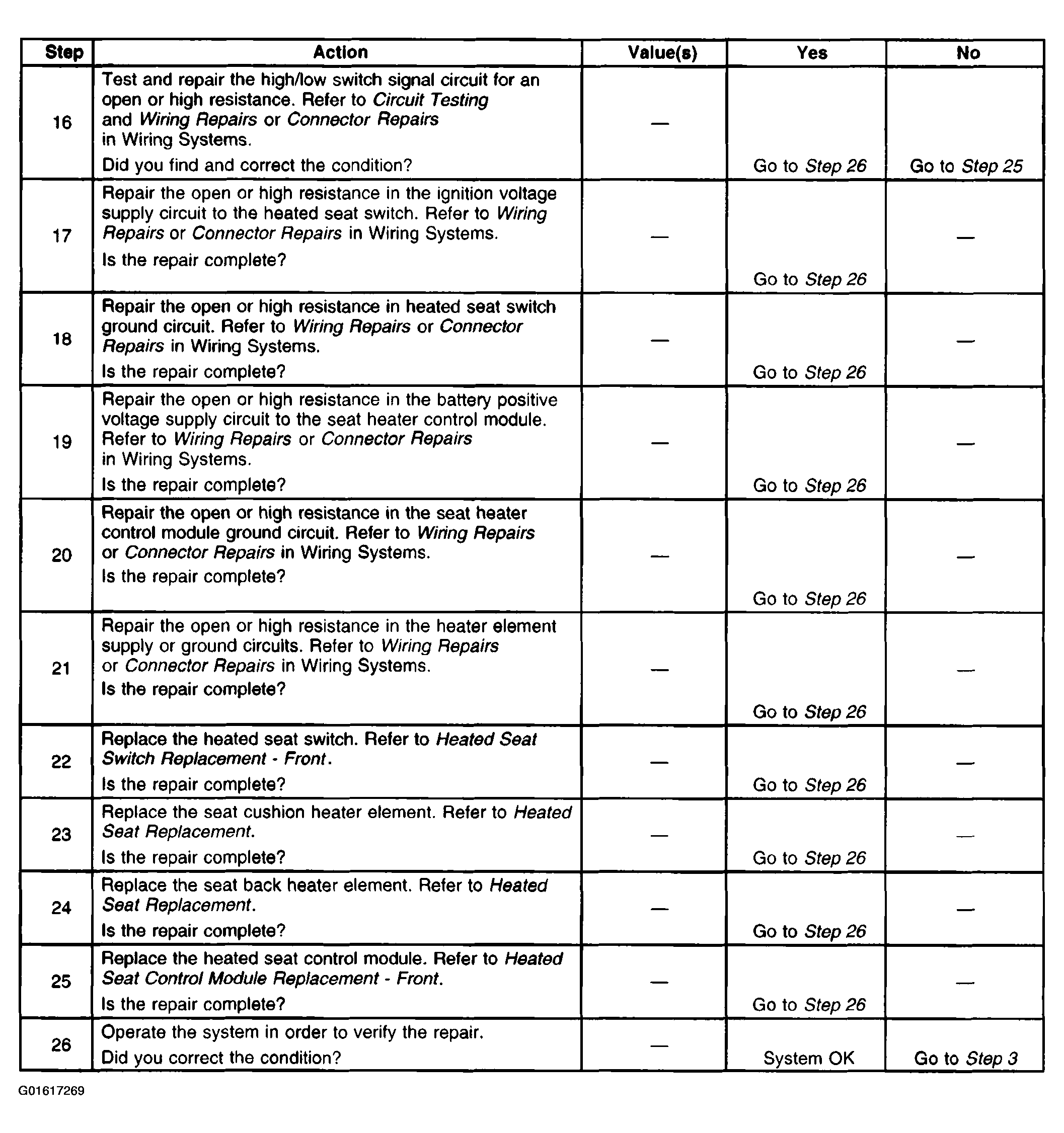

Fig 3: Heated Seat Inoperative (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
