Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the RH headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT .
  3. Disconnect the horn electrical connector.

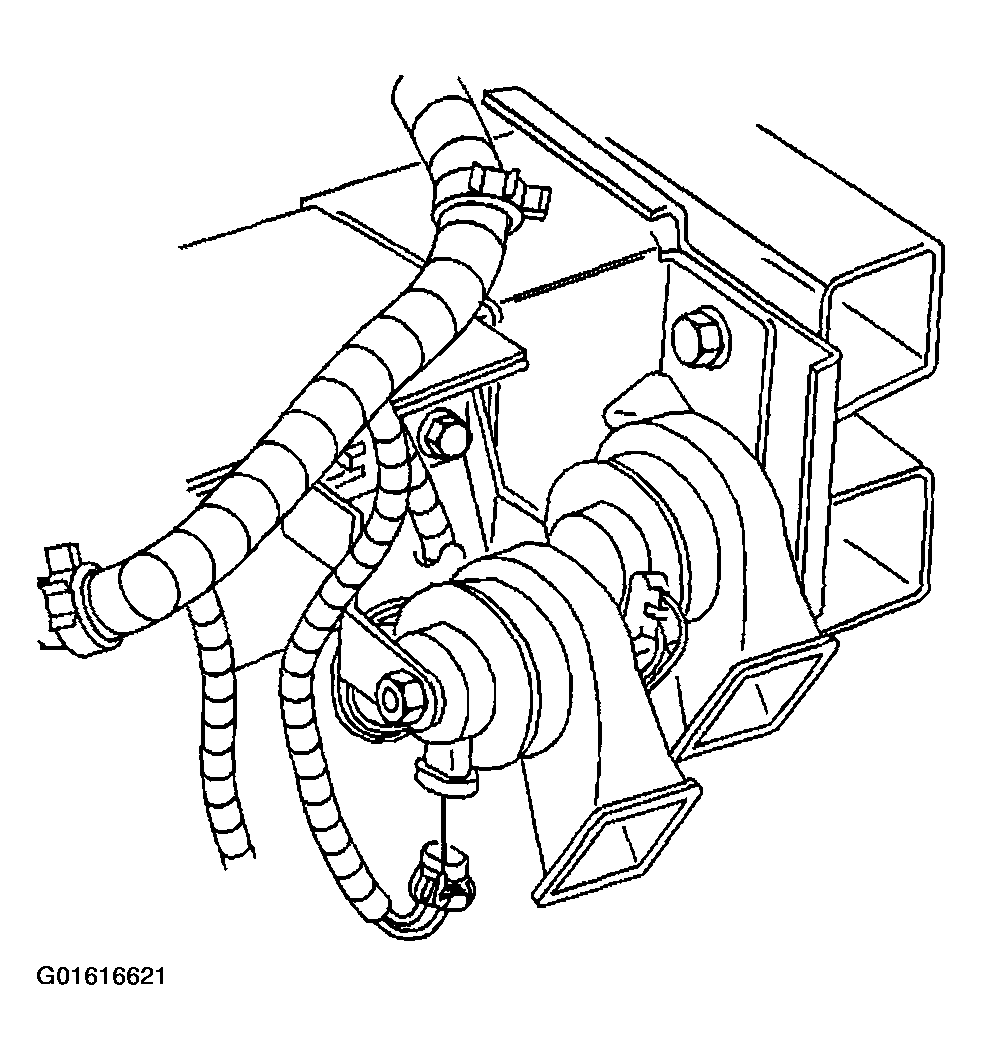

    Fig 1: Horn Electrical Connector
    G01616621Courtesy of GENERAL MOTORS CORP.
  4. Remove the horn bracket bolt.
  5. Remove the horn from the front frame rail extension.

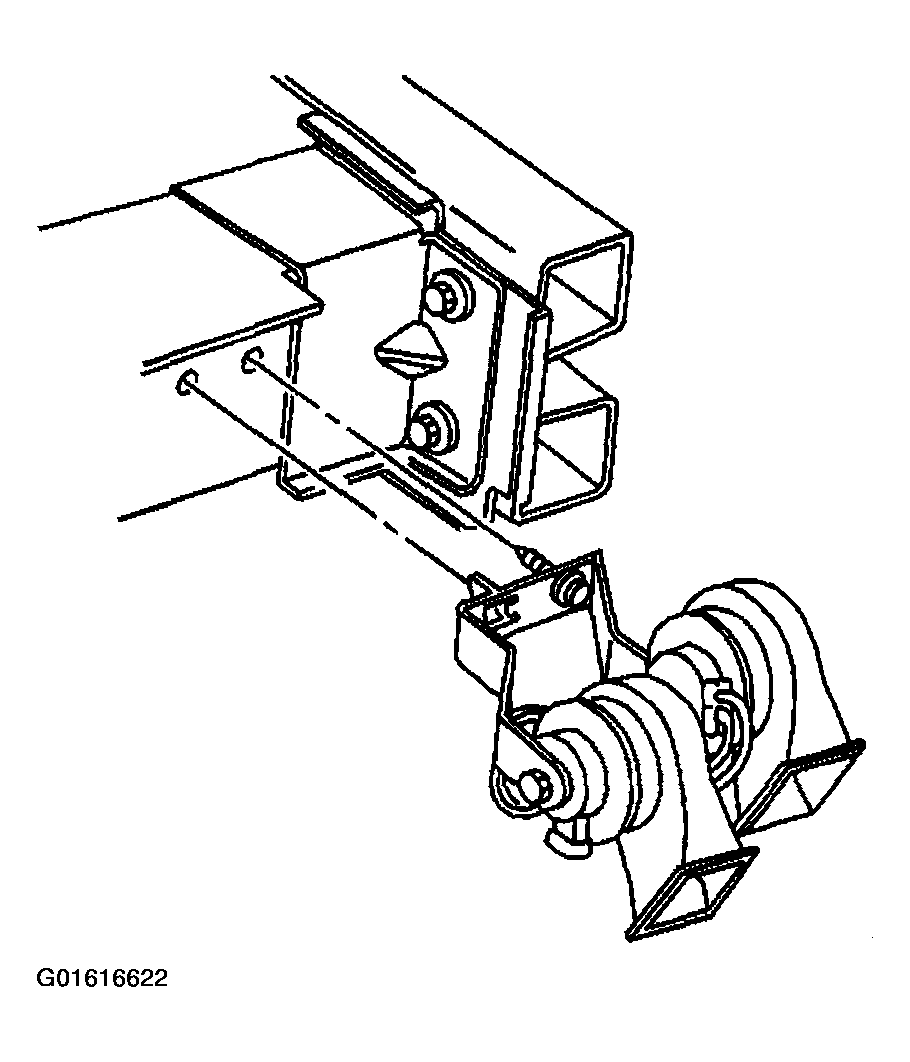

    Fig 2: Horn
    G01616622Courtesy of GENERAL MOTORS CORP.
