Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the horn to the front frame rail extension; insert the horn anti-rotation tab into the slot on the frame rail extension.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the horn bracket bolt.

    Tighten

    Tighten the bolt to 15 N.m (11 lb ft).

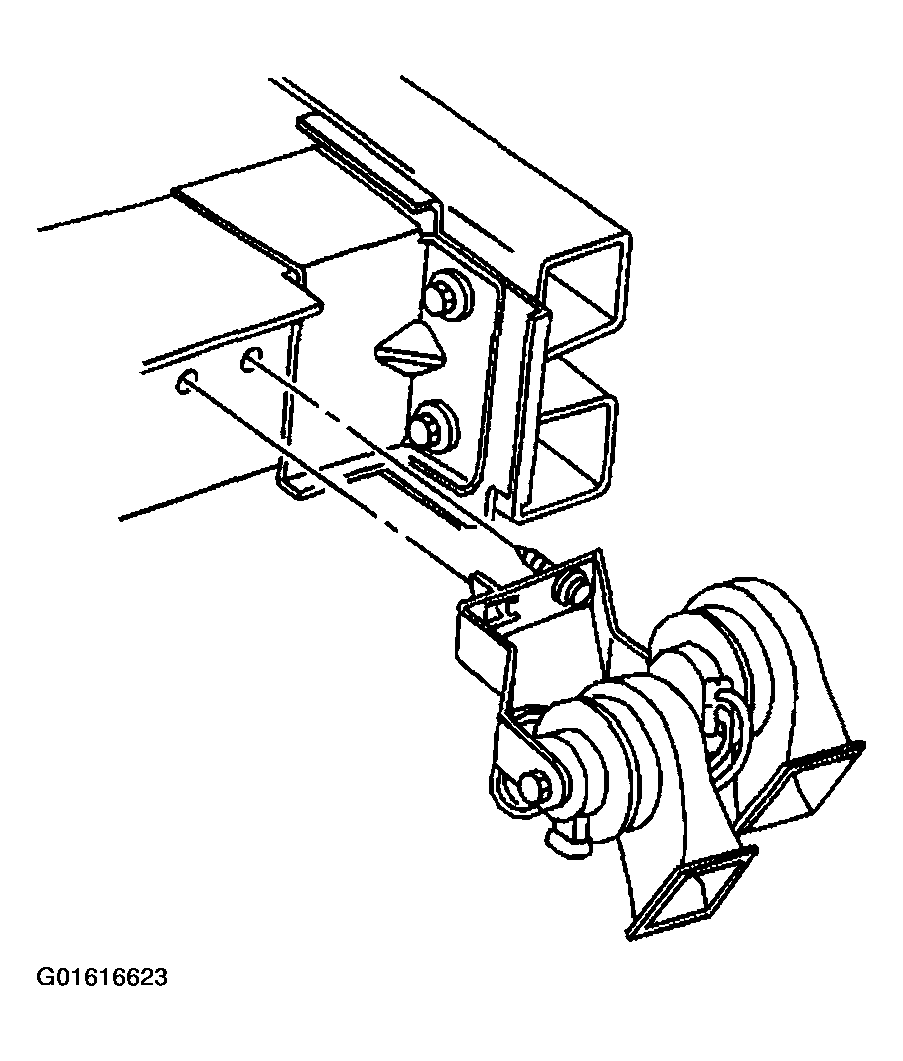

    Fig 1: Horn
    G01616623Courtesy of GENERAL MOTORS CORP.
  3. Connect the horn electrical connector.
  4. Install the RH headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT .
  5. Close the hood.

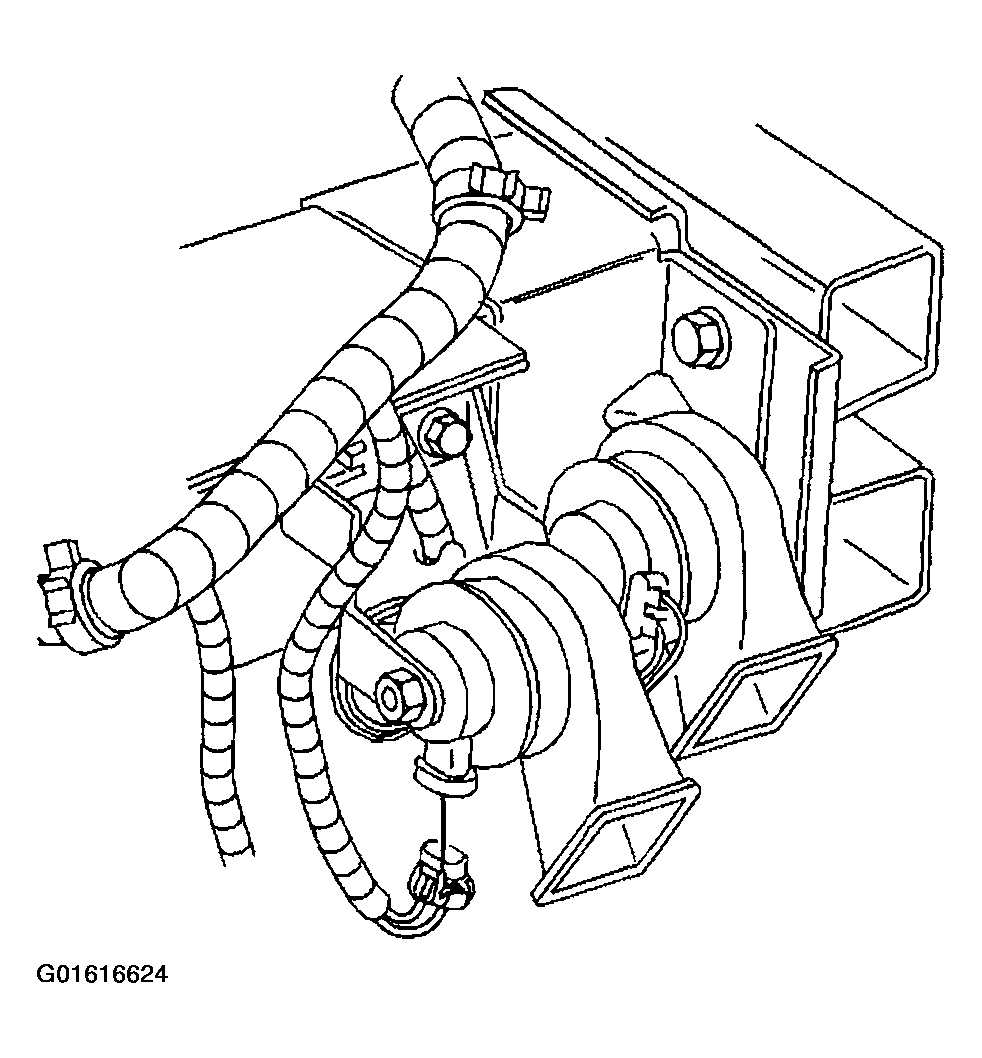

    Fig 2: Horn Electrical Connector
    G01616624Courtesy of GENERAL MOTORS CORP.
