Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the underhood electrical center cover.

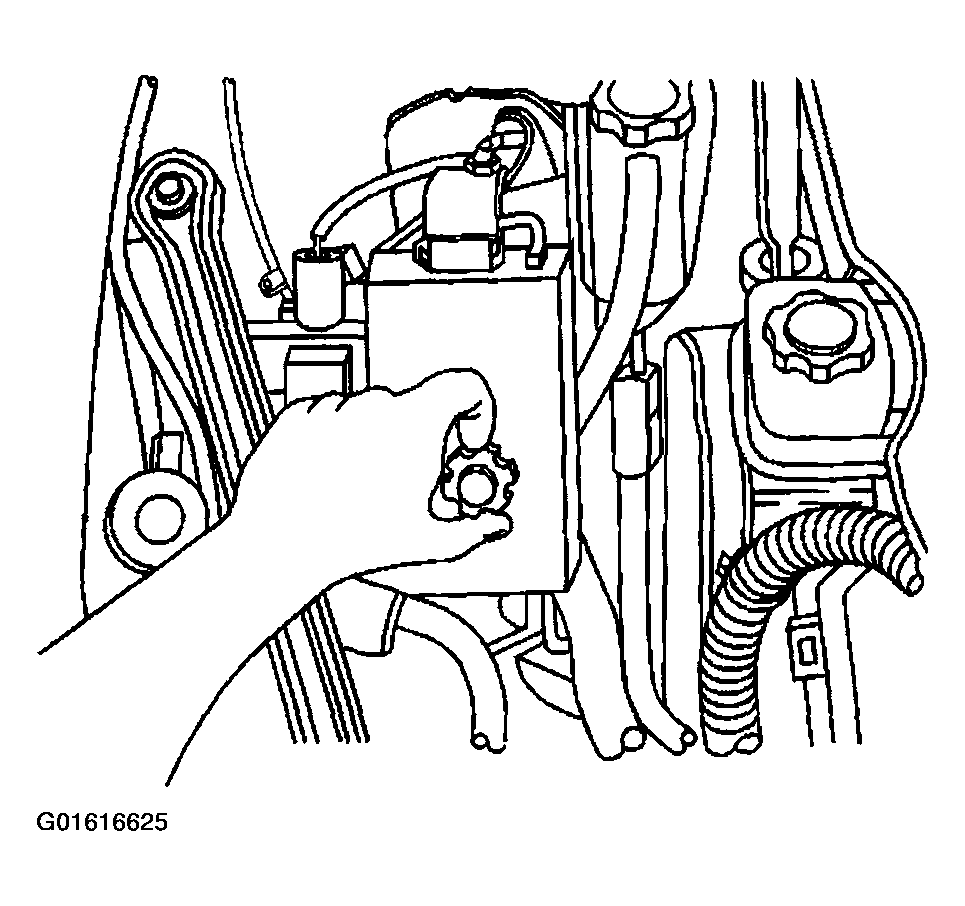

    Fig 1: Underhood Electrical Center Cover
    G01616625Courtesy of GENERAL MOTORS CORP.
  3. Using J 43244  , remove the horn relay (1) from the underhood electrical center.

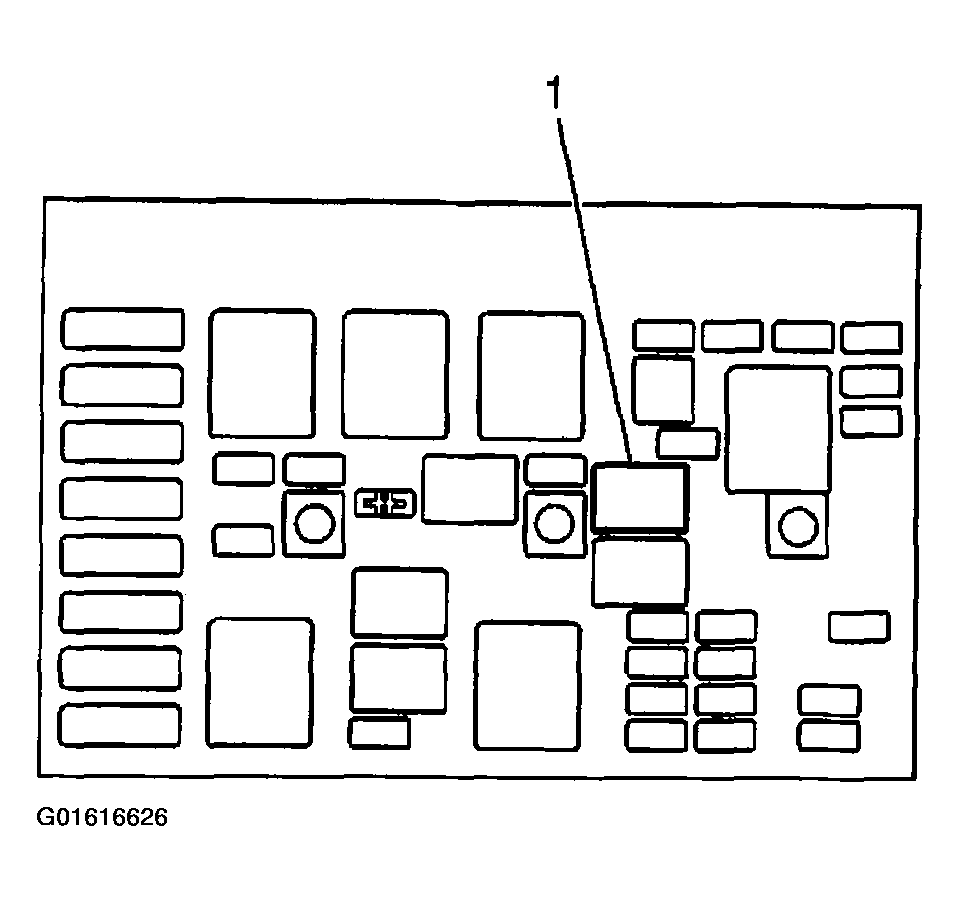

    Fig 2: Locating Horn Relay
    G01616626Courtesy of GENERAL MOTORS CORP.
