Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rocker finish panel to fender screws.
  2. Remove the rocker finish panel to rear quarter screws.
  3. Use a J 25070  152 mm (6 in) from the surface to heat the molding.
  4. Hold the J 25070  approximately 152 mm (6 in) from the surface.
  5. Apply the heat for approximately 30 seconds using a circular motion.

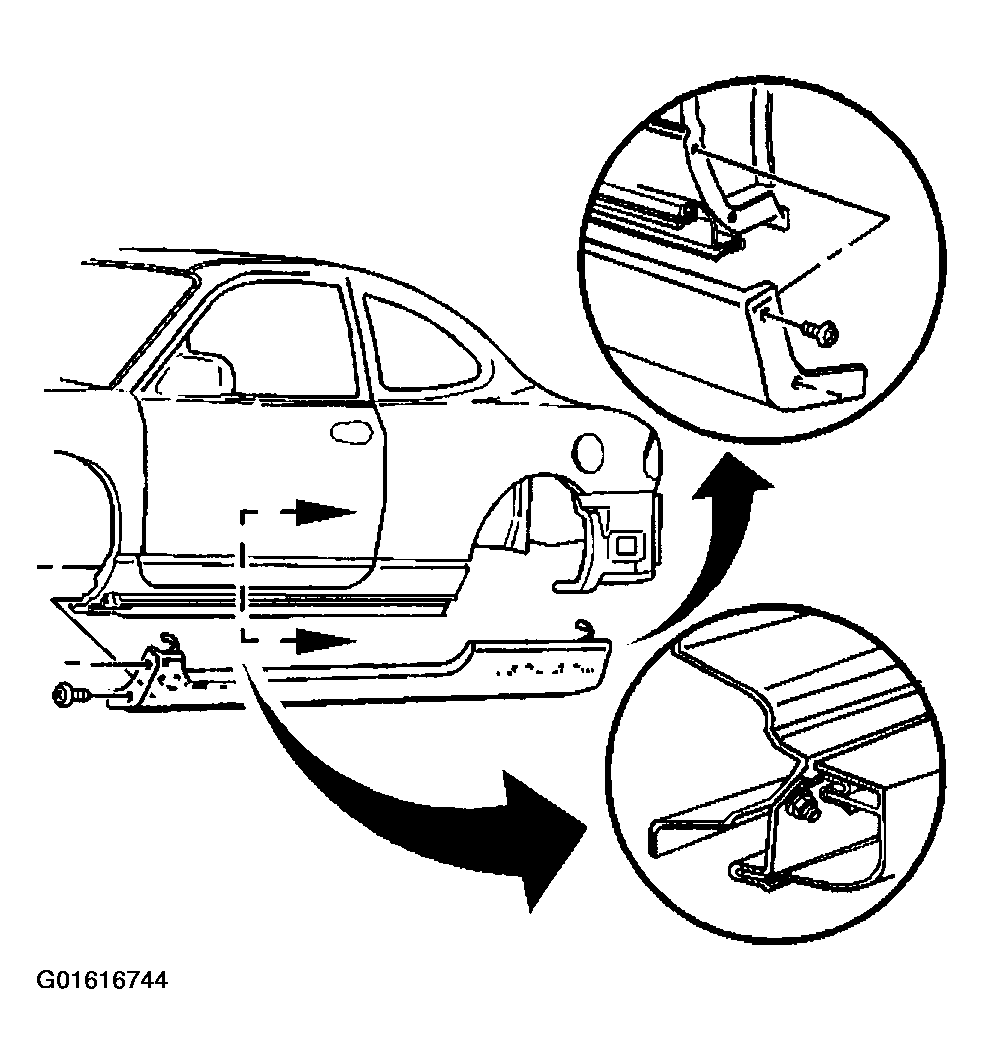

    Fig 1: Rocker Finish Panel
    G01616744Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to EXTERIOR TRIM EMBLEM REMOVAL NOTICE .
  6. Use a small plastic flat-bladed tool to remove the rocker finish panel from the panel surface.
  7. Remove the rocker finish panel from the support panel.
  8. Remove the rocker finish panel support nuts from the studs.
  9. Remove the rocker finish panel support from the vehicle.

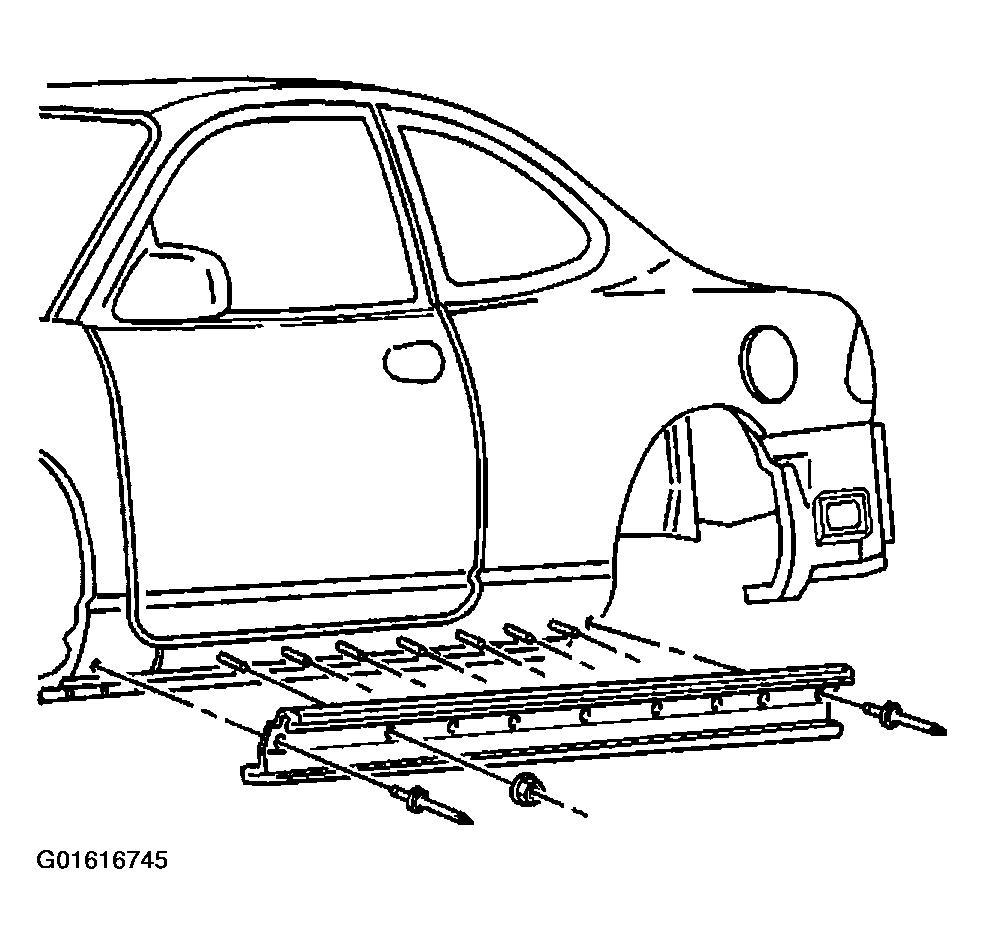

    Fig 2: Rocker Finish Panel Support
    G01616745Courtesy of GENERAL MOTORS CORP.
