Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a J 25070  152 mm (6 in) from the surface to heat the molding.
  2. Apply the heat for approximately 30 seconds using a circular motion.

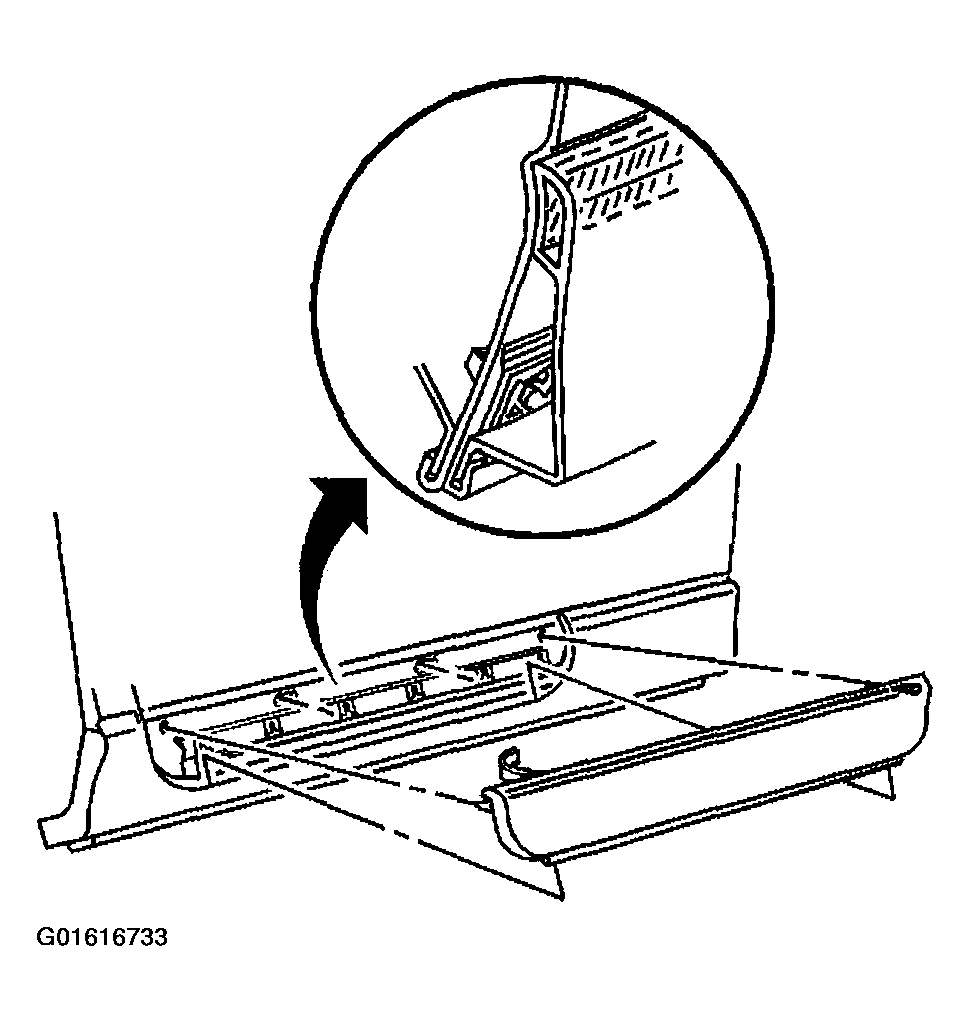

    Fig 1: Door Finish Panel
    G01616733Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to EXTERIOR TRIM EMBLEM REMOVAL NOTICE .
  3. Use a small, plastic, flat-bladed tool to remove the door finish panel from the door surface.

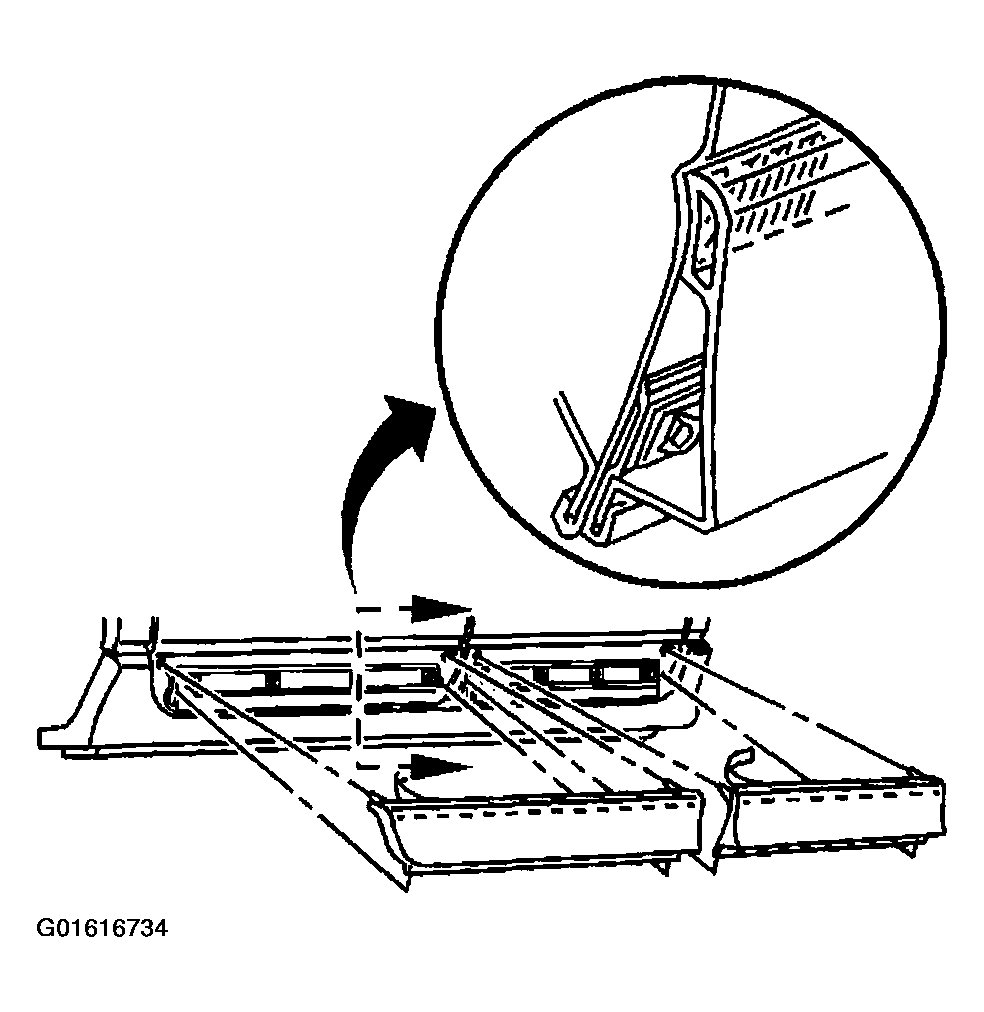

    Fig 2: Removing Door Finish Panel From Door Surface
    G01616734Courtesy of GENERAL MOTORS CORP.
  4. Remove the door finish panel from the door.

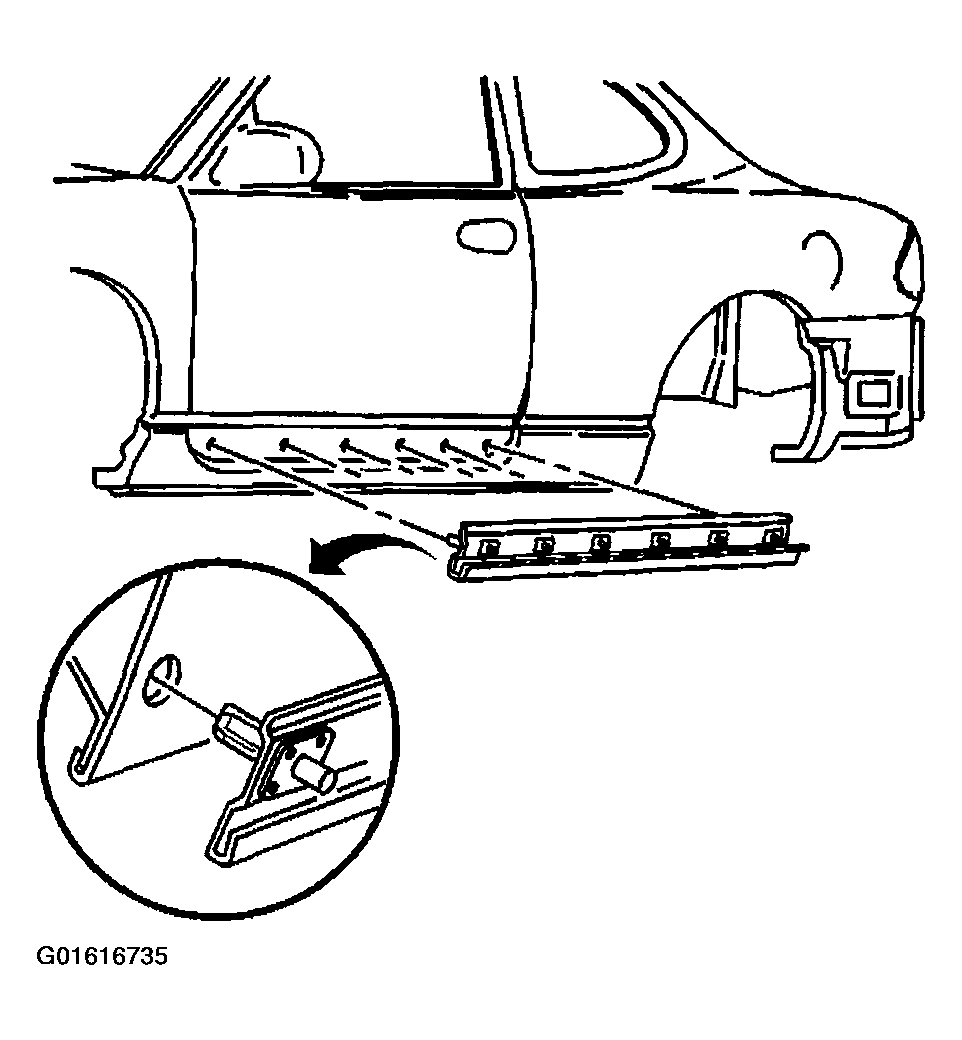

    Fig 3: Removing Door Finish Panel
    G01616735Courtesy of GENERAL MOTORS CORP.
  5. Beginning at one end, pull the center pins from the door finish panel support retainers.
  6. Remove the door finish panel support from the door.

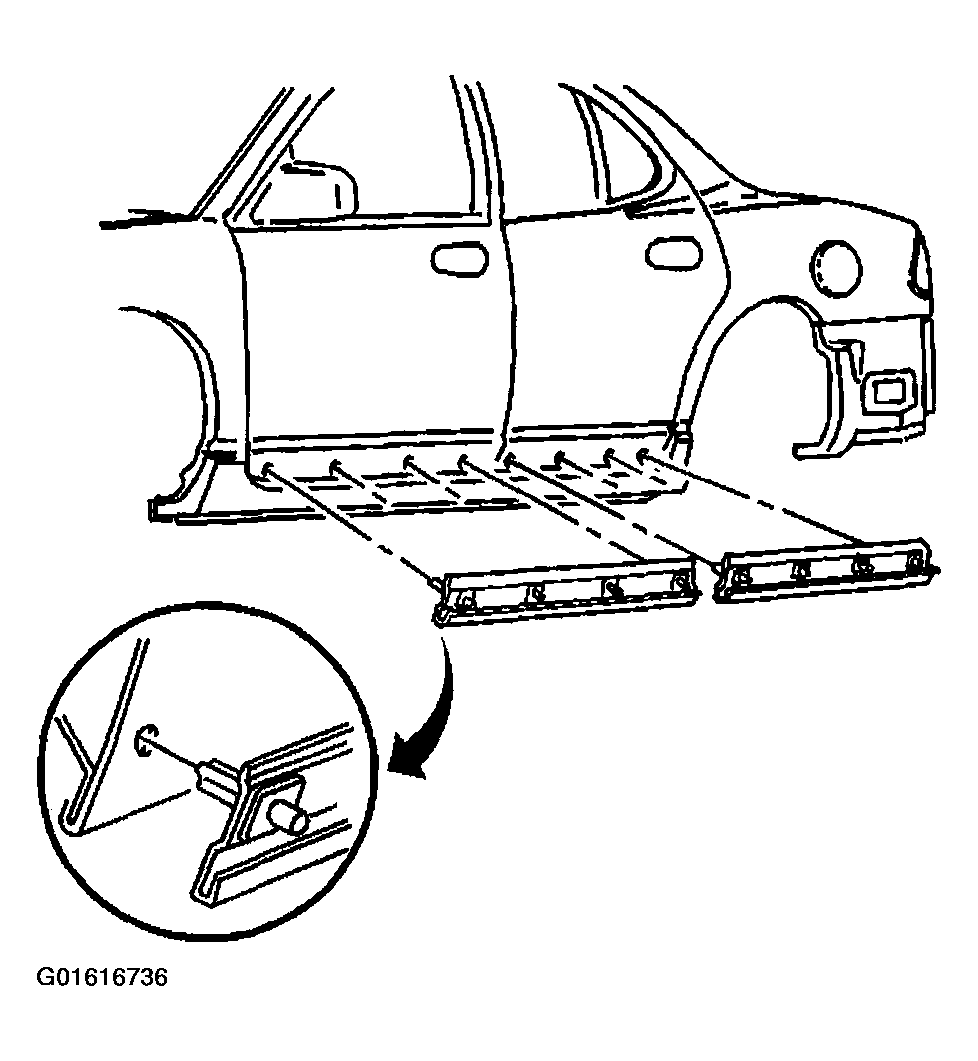

    Fig 4: Removing Door Finish Panel Support
    G01616736Courtesy of GENERAL MOTORS CORP.
