Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the clips on the door finish panel support to the holes in the door.

    Press the clips into the holes until fully seated.

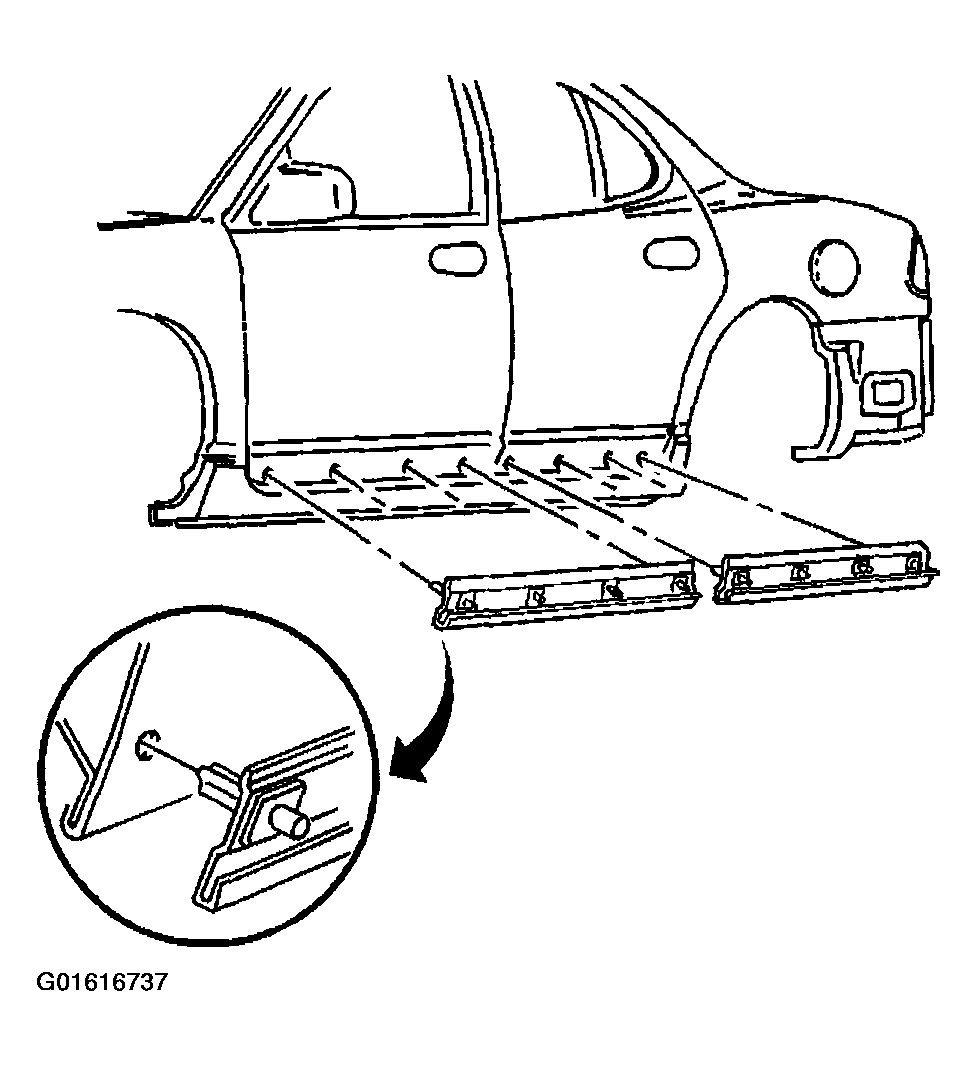

    Fig 1: Installing Door Finish Panel Support
    G01616737Courtesy of GENERAL MOTORS CORP.
  2. Use Varnish Makers and Painters (VMP) naphtha to clean the body panel.
  3. Use a heat lamp or J 25070  to warm the body panel to a minimum of 21°C (70°F), if necessary.

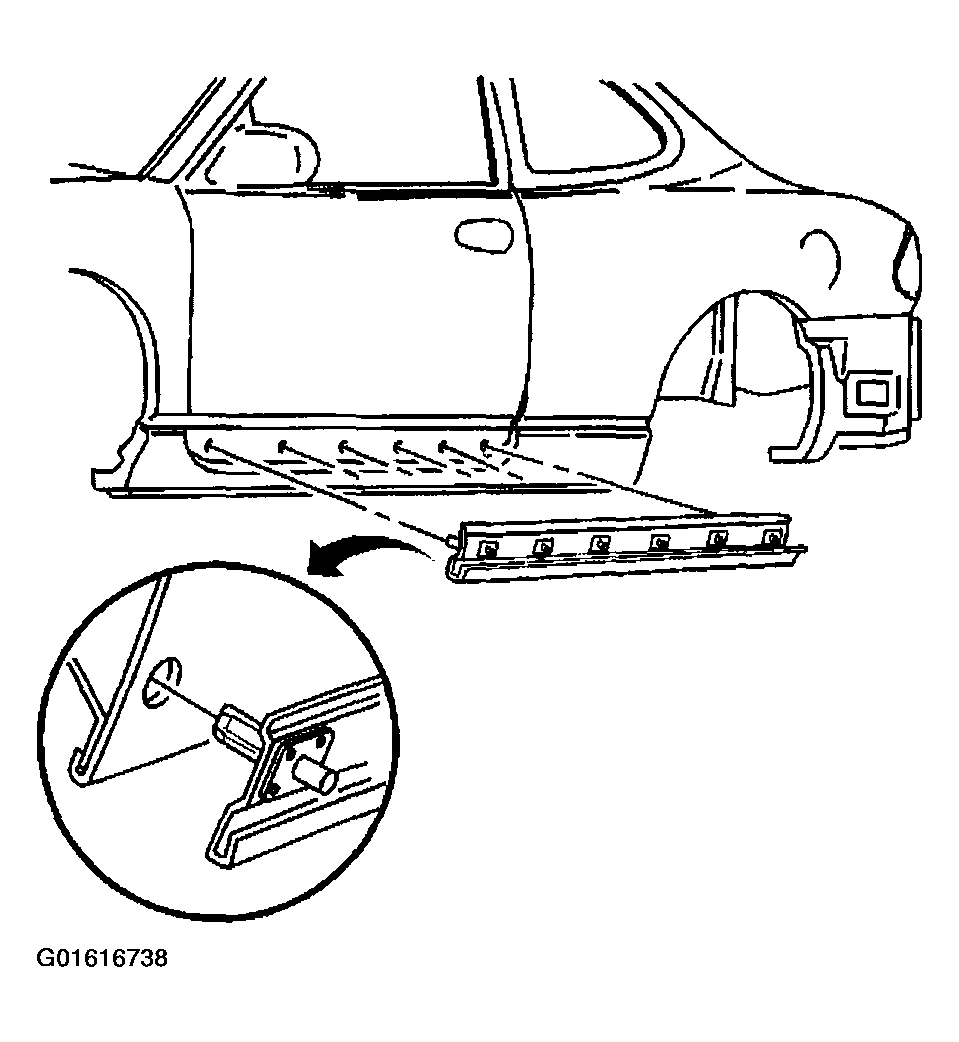

    Fig 2: Installing Door Finish Panel
    G01616738Courtesy of GENERAL MOTORS CORP.
  4. Install the bottom flange of the door finish panel into the support.

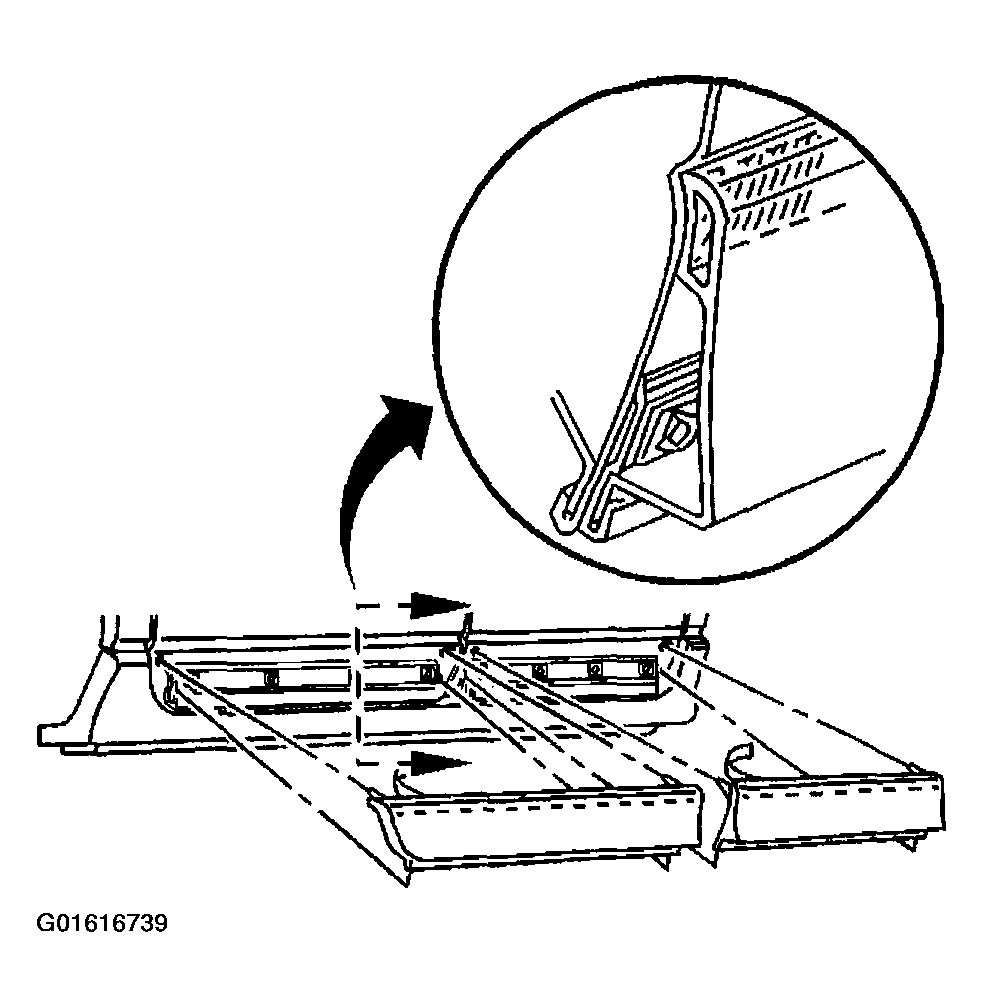

    Fig 3: Installing Bottom Flange Of Door Finish Panel Into Support
    G01616739Courtesy of GENERAL MOTORS CORP.
  5. Install the locating pins into the door.
    IMPORTANT: Do not touch the adhesive backing.
  6. Remove the backing from the door finish panel.
  7. Push the door finish panel inward to ensure maximum bond to the body.

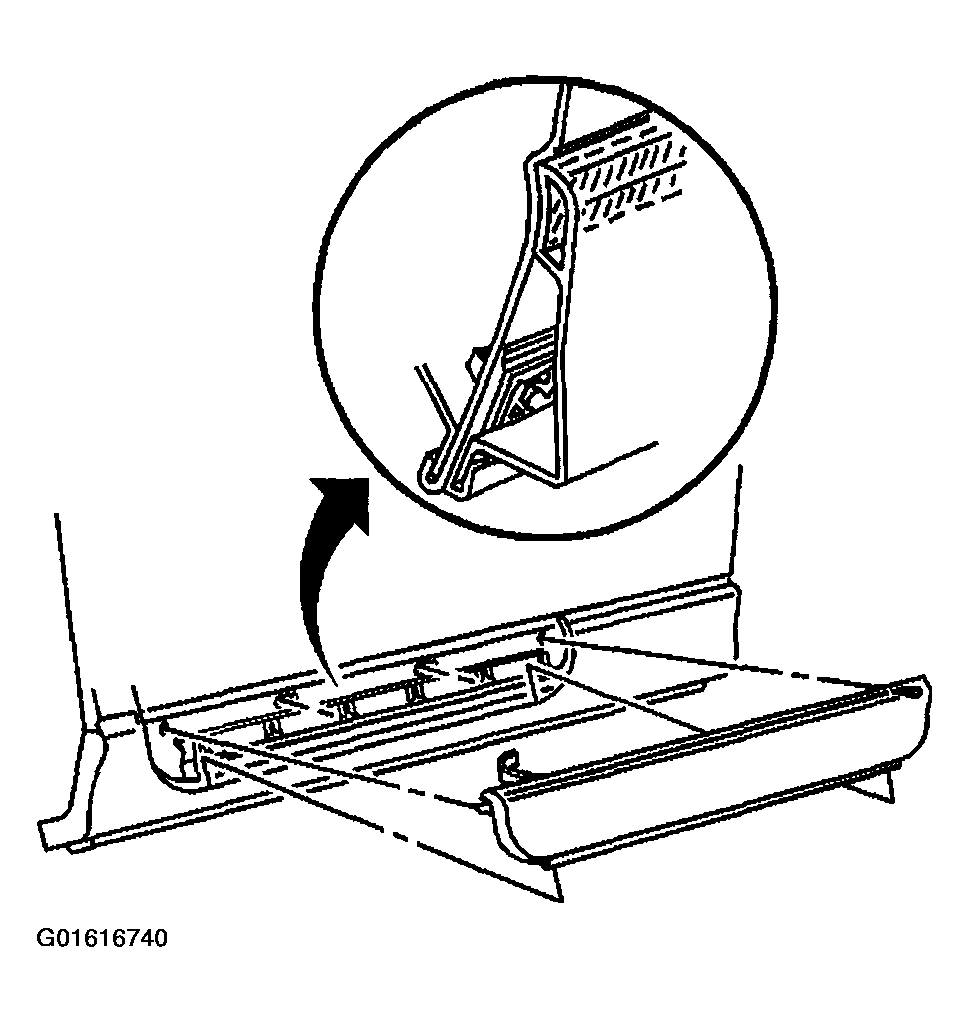

    Fig 4: Door Finish Panel
    G01616740Courtesy of GENERAL MOTORS CORP.
