Installation Procedure
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

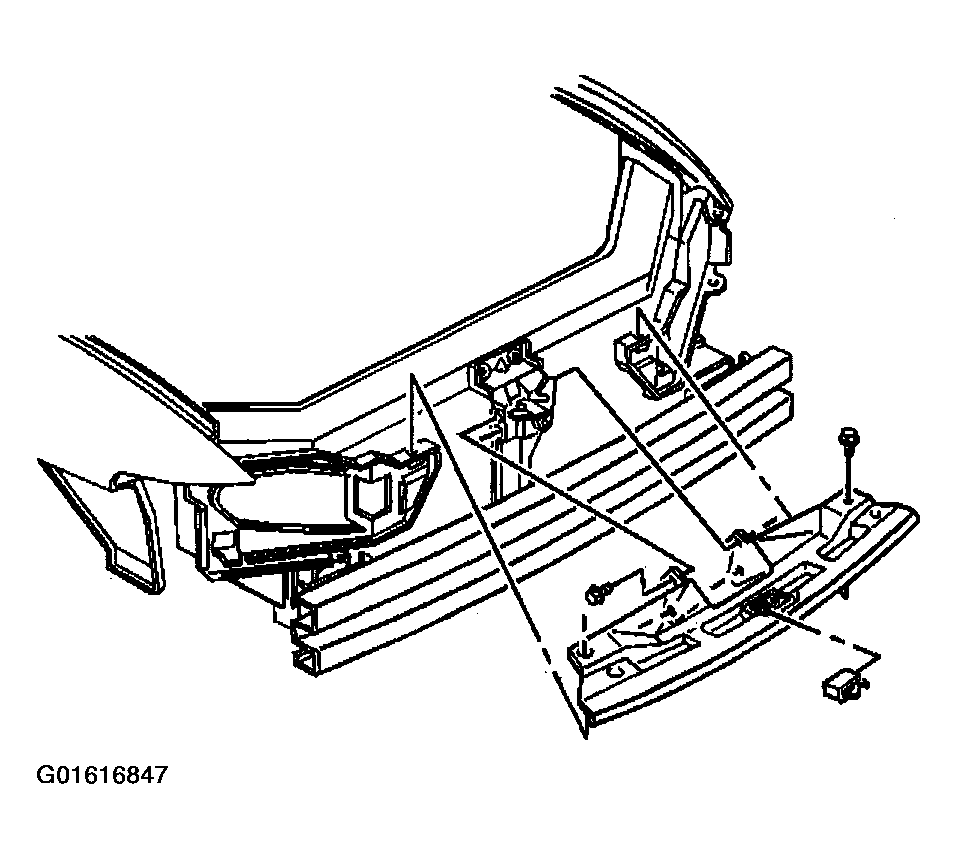

- Pull the upper edge of the front bumper fascia forward and install the front bumper fascia upper support.NOTE: Refer to FASTENER NOTICE .
- Install the front bumper fascia upper support to the headlamp mounting bracket bolts.
Tighten
Tighten the front bumper fascia to upper support bolts to 7 N.m (61 lb in).
- Install the front bumper fascia upper support to the center radiator support bolts.
Tighten
Tighten the upper support to center radiator support bolts to 7 N.m (61 lb in).
- Install the top center bolt (by the hood latch) on the front bumper fascia.
Tighten
Tighten the upper support to center radiator support bolts to 7 N.m (61 lb in).
- Install the push-in retainers on the top of the front bumper fascia
- Reposition the right and left air baffles and install the push-in retainers.
