Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front bumper fascia to the vehicle.
  2. Install the push-in retainers to the front bumper fascia to front bumper fascia upper support.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the bolts to the front bumper fascia.

    Tighten

    Tighten the front bumper fascia fender bolts to 10 N.m (89 lb in).

  4. Install the screws to the front bumper fascia to front fender liner.

    Tighten

    Tighten the front bumper fascia to front fender liner screws to 2 N.m (18 lb in).

  5. Install the bolt to the front bumper fascia upper support.

    Tighten

    Tighten front bumper fascia upper support bolt to 7 N.m (61 lb in).

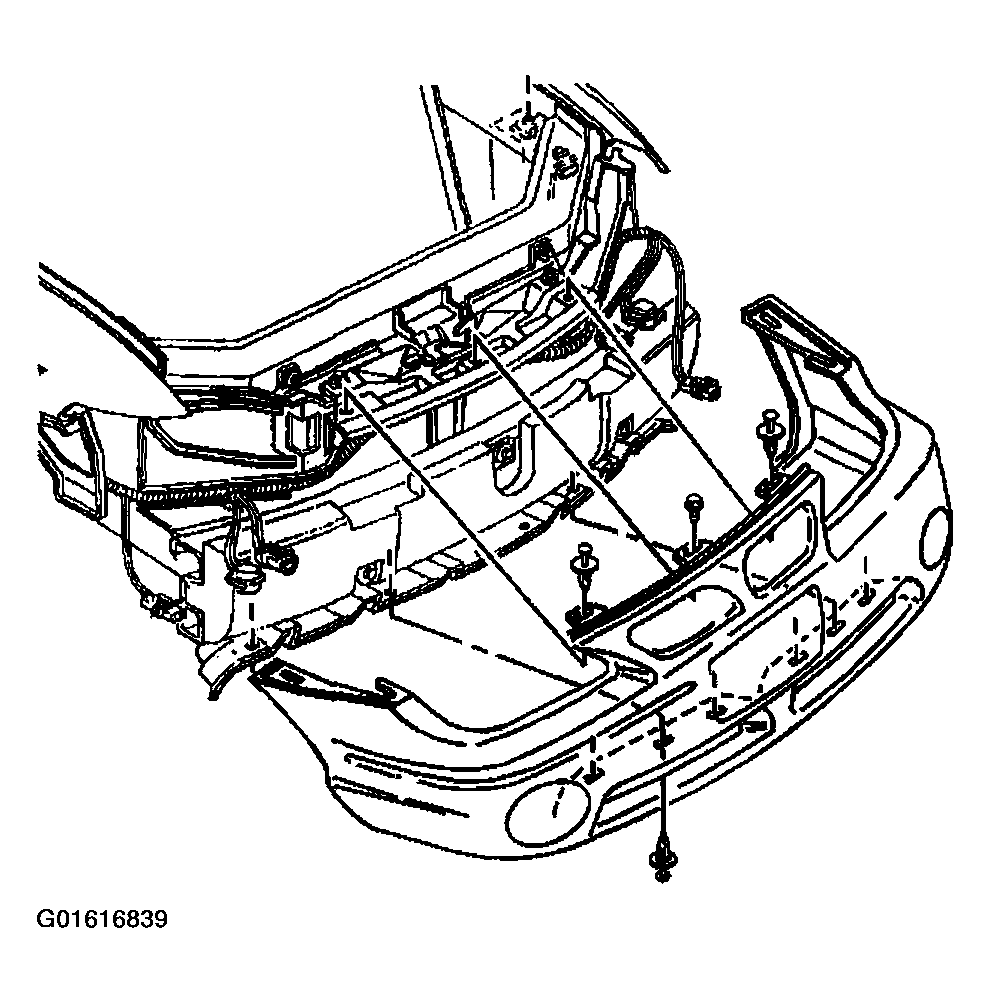

    Fig 1: Front Bumper Fascia
    G01616839Courtesy of GENERAL MOTORS CORP.
  6. Install the push-in retainers to the front bumper fascia radiator air baffle.
  7. Install the fog lamps. Refer to FOG LAMP REPLACEMENT -- FRONT .
  8. Install the headlight. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT .
  9. Lower the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  10. Remove the protective tape that may have been applied during the removal procedure.
