Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper fascia. Refer to Fascia Replacement - Rear Bumper .
  2. Remove the push-in retainers from the rear bumper energy absorber using J 38778.
  3. Remove the rear bumper energy absorber from the rear bumper impact bar.

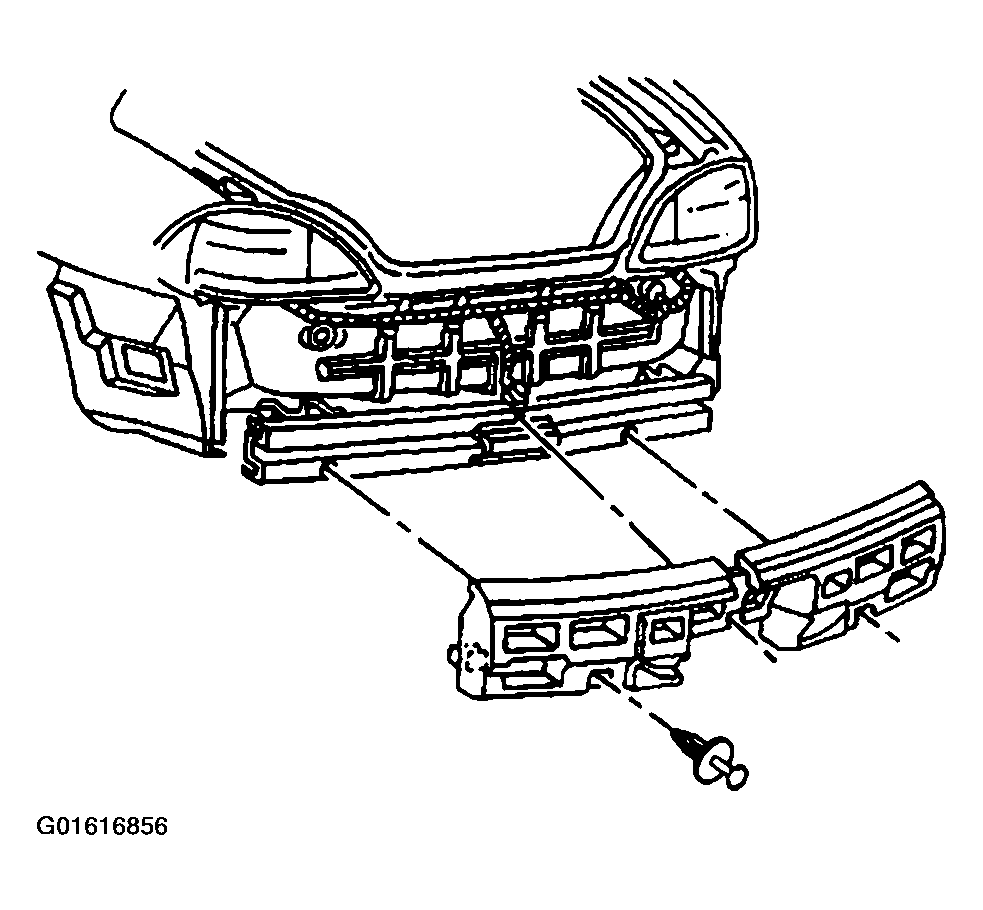

    Fig 1: Rear Bumper Energy Absorber
    G01616856Courtesy of GENERAL MOTORS CORP.
