Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia. Refer to Fascia Replacement - Front Bumper .
  2. Remove the push-in retainers from the front bumper energy absorber using J 38778.
  3. Remove the front bumper energy absorber from the front bumper impact bar.

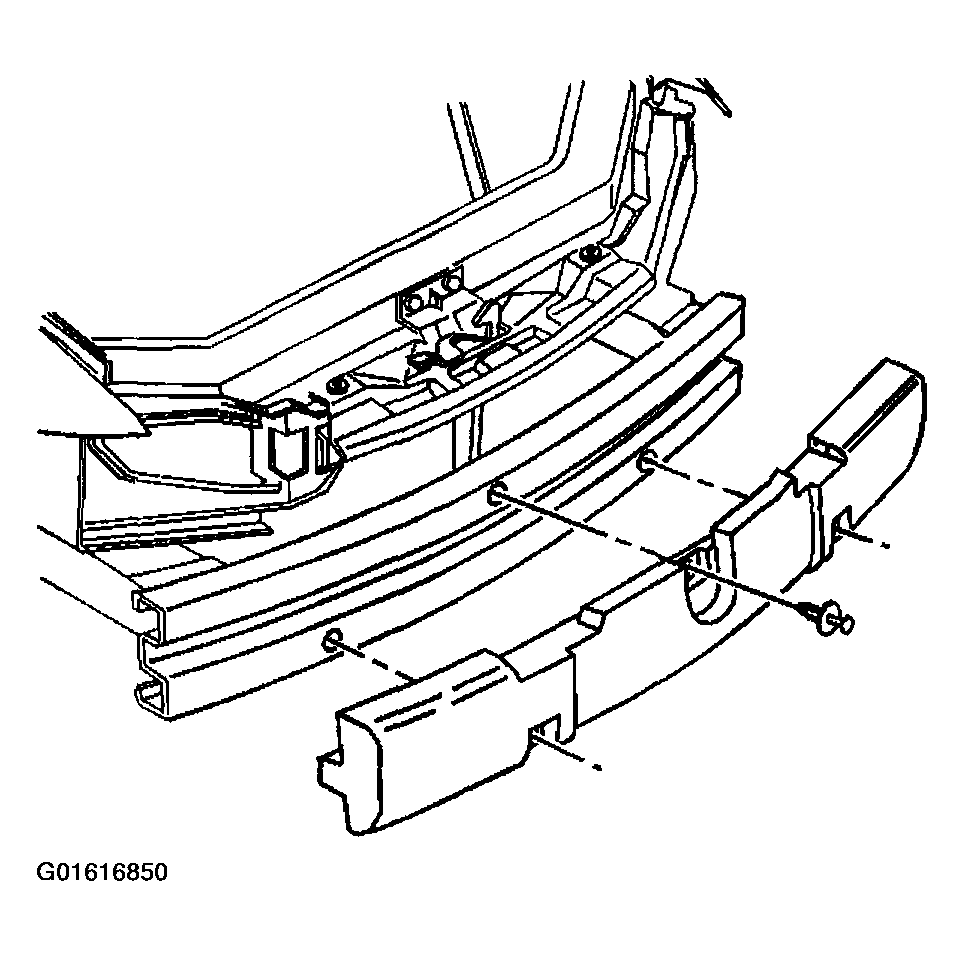

    Fig 1: Front Bumper Energy Absorber
    G01616850Courtesy of GENERAL MOTORS CORP.
