Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front bumper energy absorber to the front bumper impact bar.
  2. Install the push-in retainers to the front bumper energy absorber.
  3. Install the front bumper fascia. Refer to Fascia Replacement - Front Bumper .

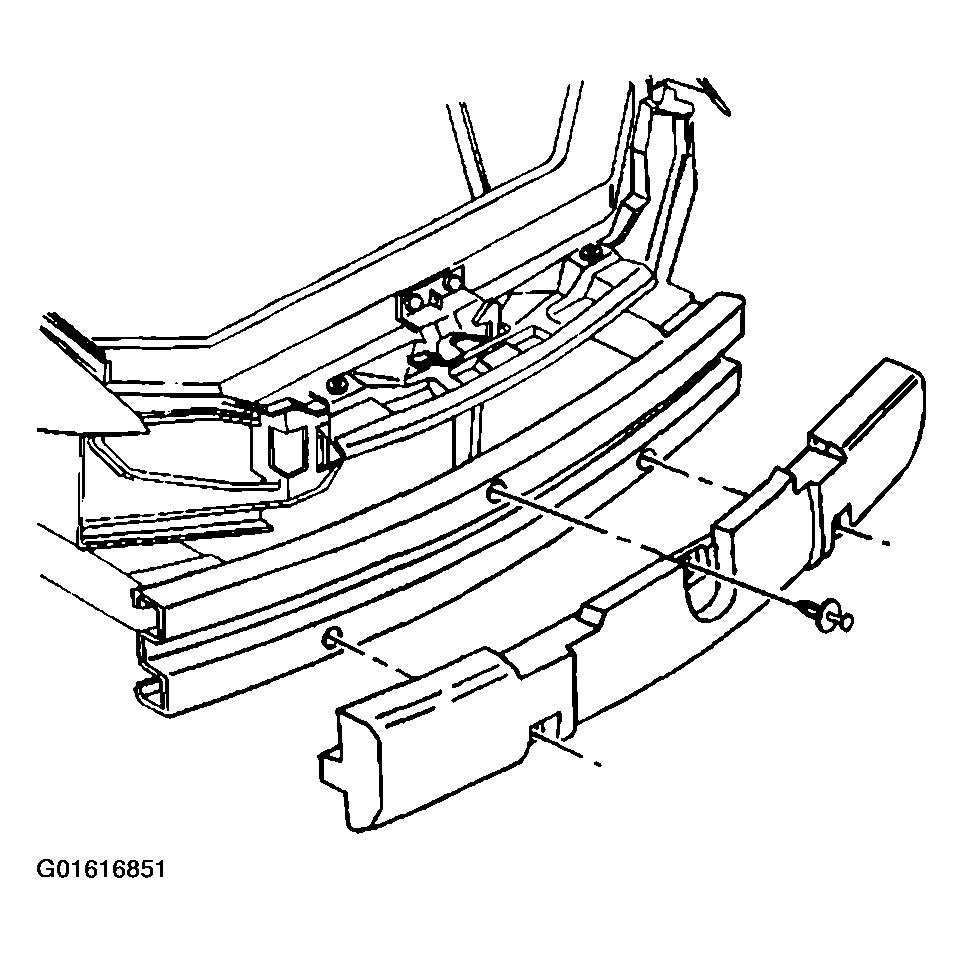

    Fig 1: Front Bumper Energy Absorber
    G01616851Courtesy of GENERAL MOTORS CORP.
