Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Disconnect all of the electrical connectors to the electrical components that are attached to the rear compartment lid.
  3. Remove the rear compartment wiring harness from the rear compartment lid.
  4. Disconnect the wiring harness retainers from the rear compartment lid and in the rear compartment.
  5. Disconnect the wiring harness in the rear compartment.
  6. Remove the wiring harness.

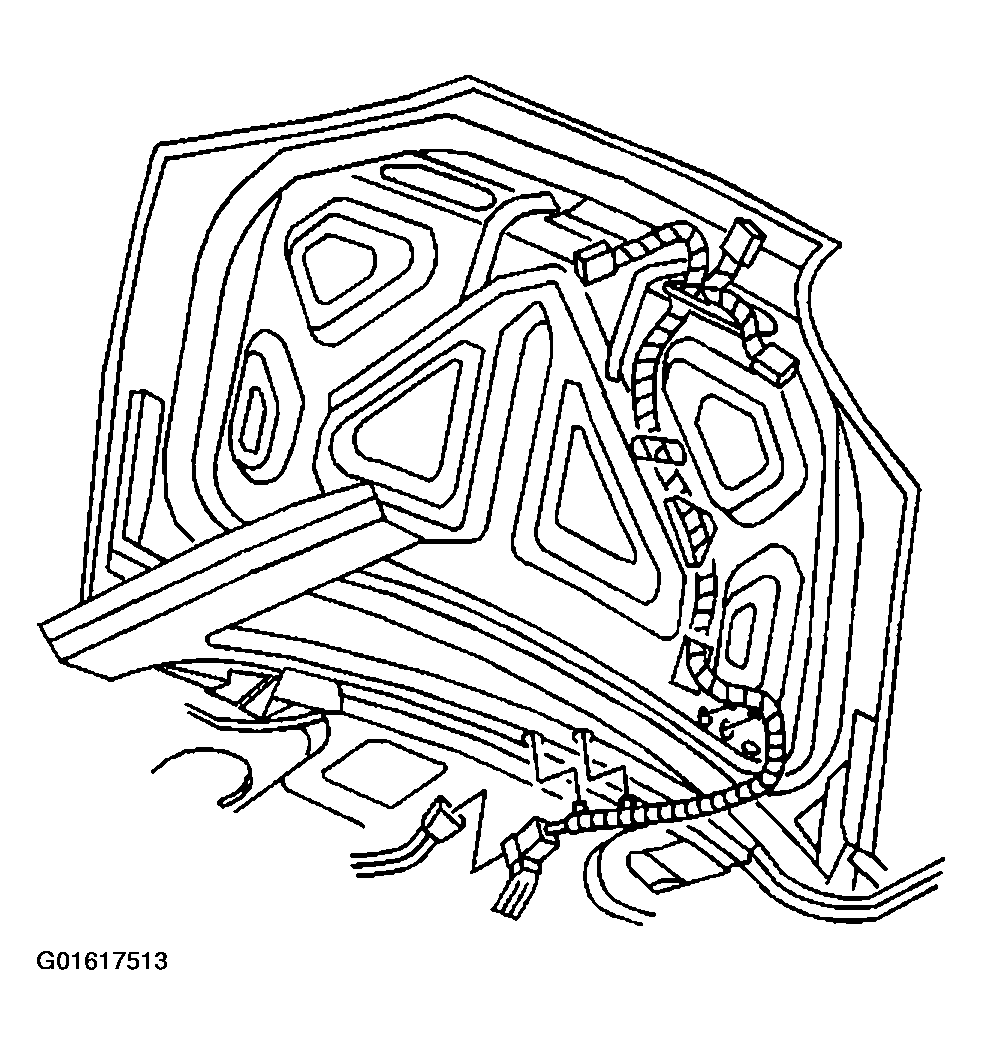

    Fig 1: Rear Compartment Lid Wiring Harness
    G01617513Courtesy of GENERAL MOTORS CORP.
