Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear compartment weatherstrip to the pinch-weld flange.
  2. Locate the color mark on the rear compartment weatherstrip to body centerline at the front of the rear compartment lid opening.
  3. Engage the rear compartment weatherstrip onto the pinch-weld flange. Start at the top center of the lid opening. Work toward the bottom center.

    Use a rubber mallet to ensure the full engagement of the rear compartment weatherstrip to the pinch-weld flange.

  4. Close the rear compartment.

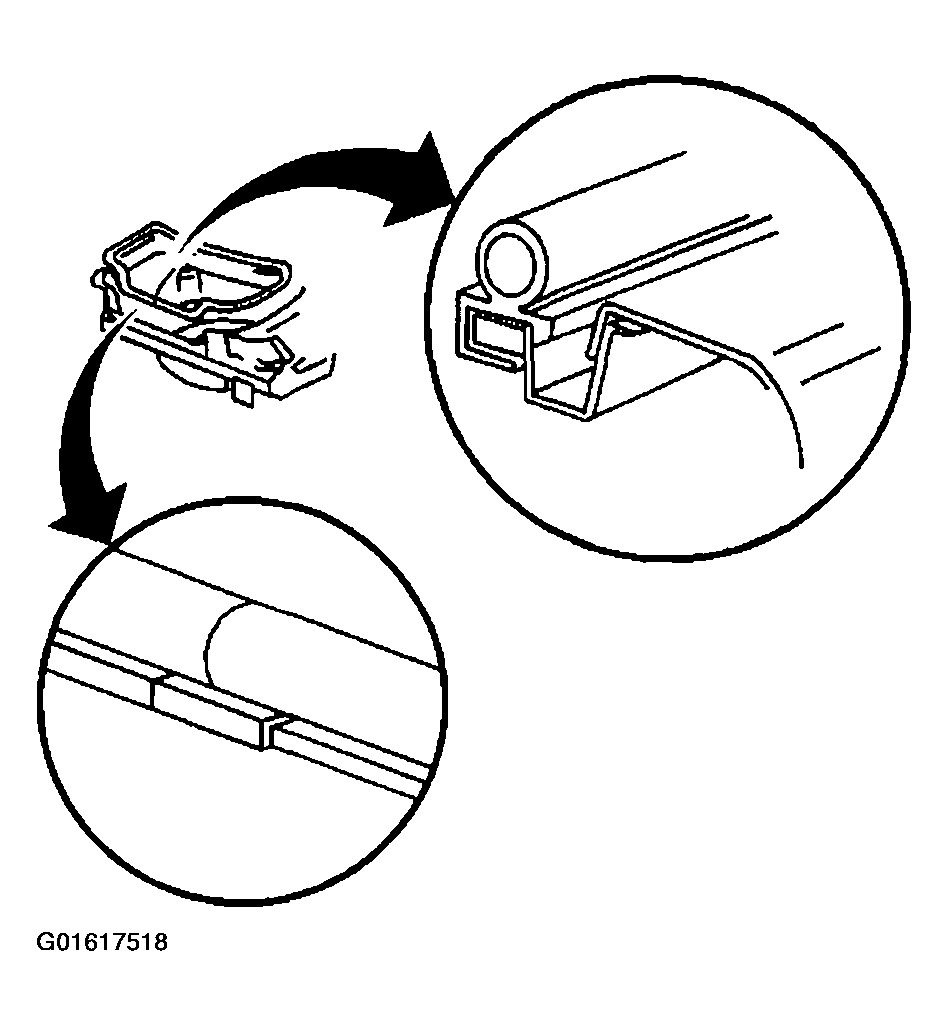

    Fig 1: Rear Compartment Weatherstrip
    G01617518Courtesy of GENERAL MOTORS CORP.
