Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the top and bottom of the rear compartment strut with the ball studs on the hinge.
  2. Install the rear compartment strut onto the upper ball stud, pressing into place until fully seated.
  3. Install the rear compartment strut onto the lower ball stud, pressing into place until fully seated.
  4. Remove the support and close the rear compartment.

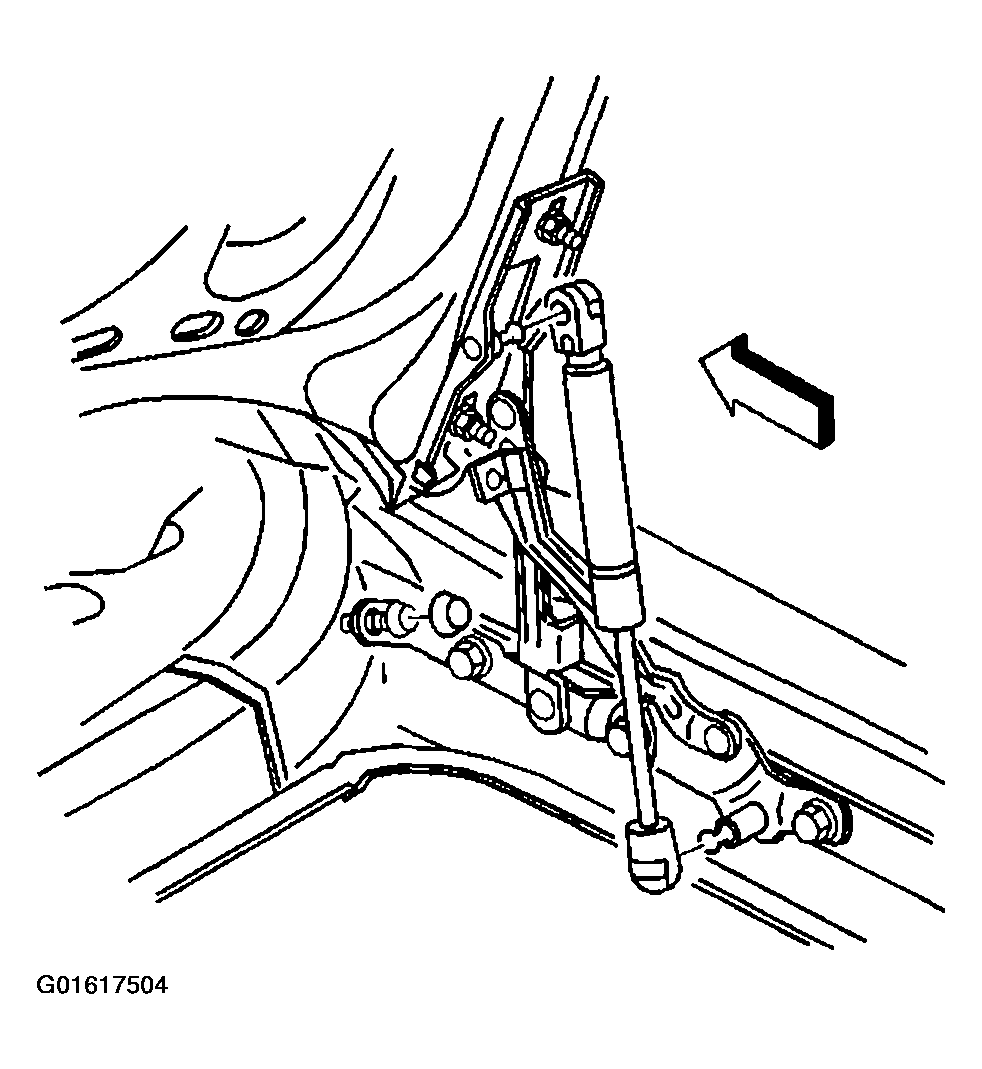

    Fig 1: Rear Compartment Strut
    G01617504Courtesy of GENERAL MOTORS CORP.
