Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear end spoiler to the rear compartment lid.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the nuts to the studs on the rear compartment lid spoiler.

    Tighten

    Tighten the rear compartment lid spoiler nuts to 6 N.m (53 lb in).

  3. Close the rear compartment.

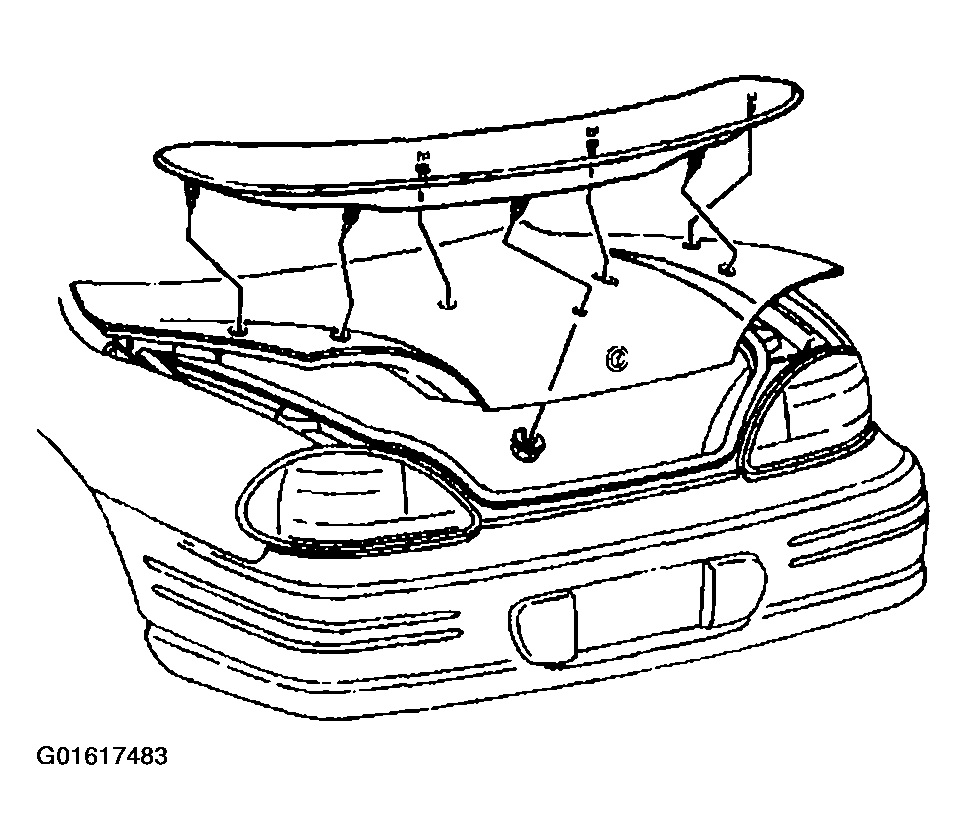

    Fig 1: Spoiler
    G01617483Courtesy of GENERAL MOTORS CORP.
