Release Actuator Replacement: Removal

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment lid.
  2. Disconnect the electrical connector from the lock actuator.
  3. Remove the lock actuator to the rear compartment lid latch bolts.
  4. Remove the lock actuator from the rear compartment lid latch.

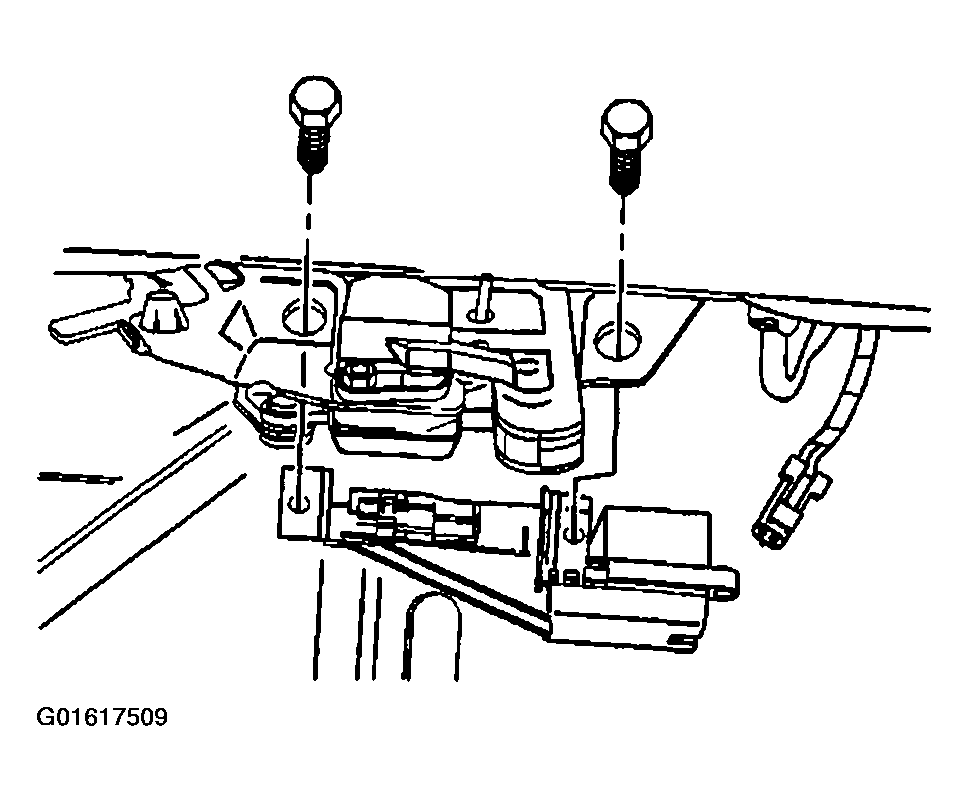

    Fig 1: Release Actuator
    G01617509Courtesy of GENERAL MOTORS CORP.
