Release Actuator Replacement: Installation

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the lock actuator to the rear compartment lid latch.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the lock actuator bolts.

    Tighten

    Tighten the lock actuator bolts to 3 N.m (26 lb in).

  3. Connect the electrical connector to the lock actuator.
  4. Close the rear compartment lid.

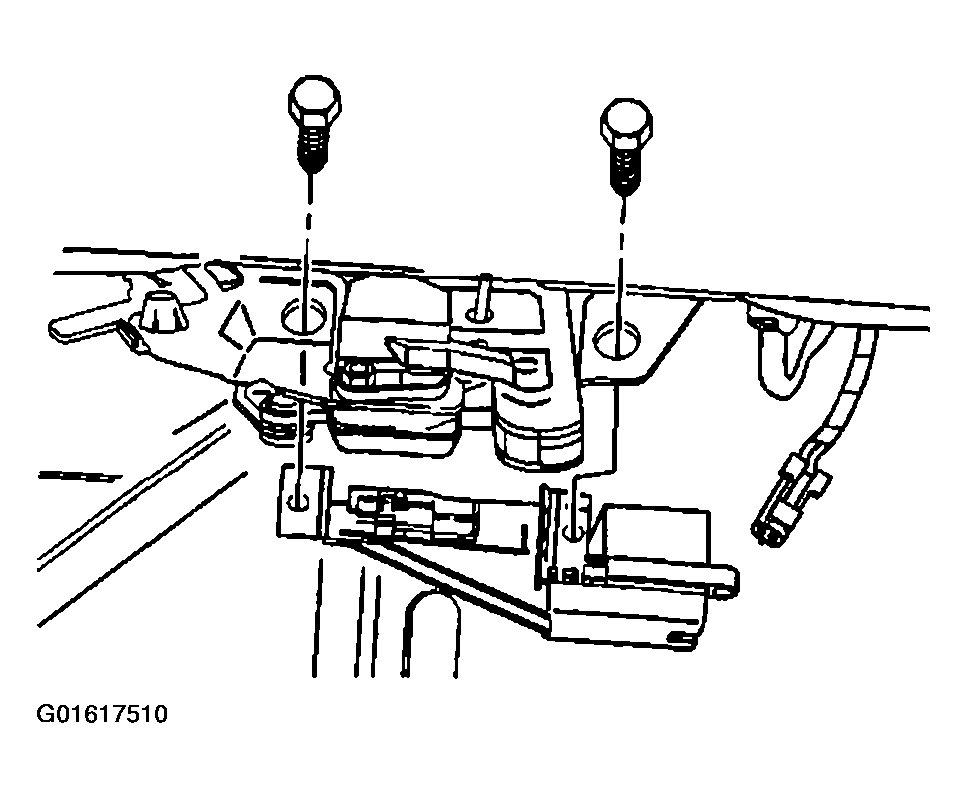

    Fig 1: Release Actuator
    G01617510Courtesy of GENERAL MOTORS CORP.
