Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP Storage compartment door. Refer to DOOR REPLACEMENT -- IP STORAGE COMPARTMENT DOOR .
  2. Remove the IP compartment. Refer to COMPARTMENT REPLACEMENT -- IP .
  3. Disconnect the electrical connector from the yellow rear compartment lid switch.
  4. Remove the rear compartment lid switch.

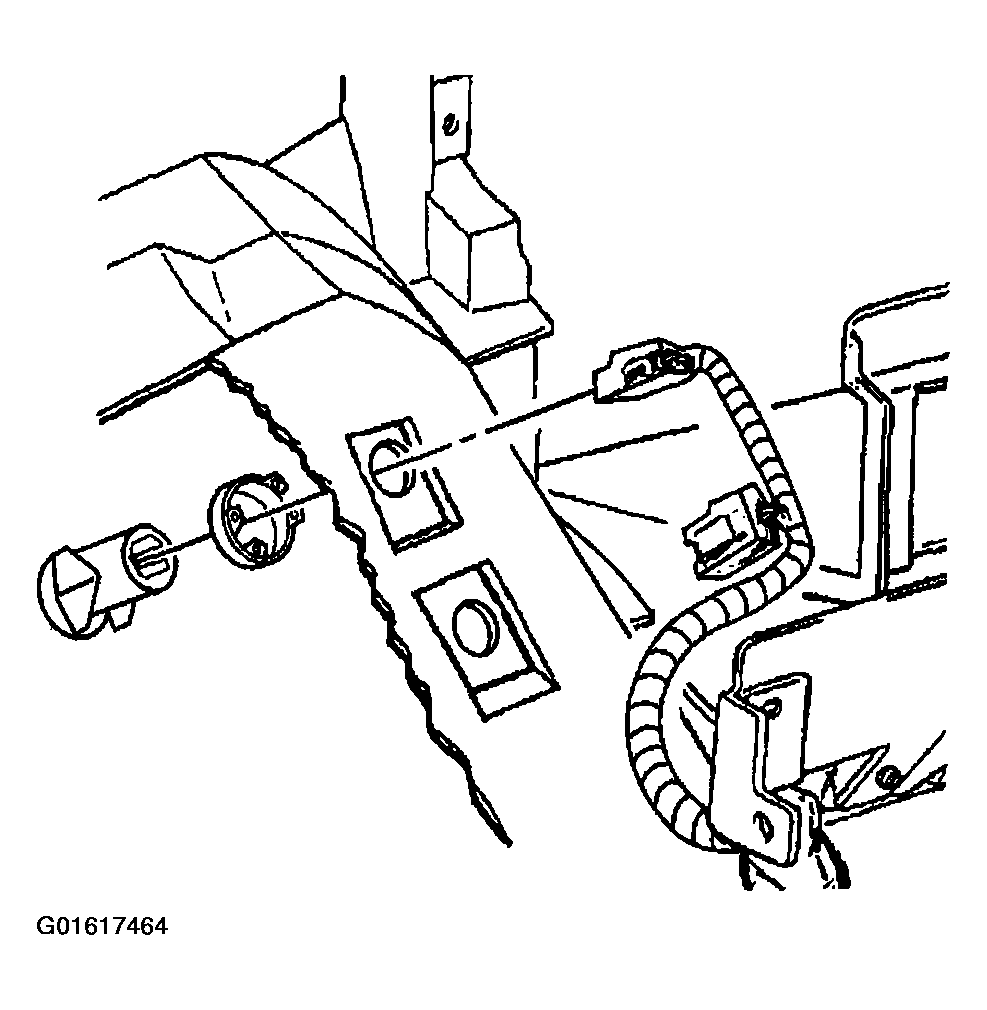

    Fig 1: Rear Compartment Lid Switch
    G01617464Courtesy of GENERAL MOTORS CORP.
