Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear compartment lid switch.
  2. Install switch electric connector.
  3. Install the IP compartment. Refer to COMPARTMENT REPLACEMENT -- IP .
  4. Install the IP Storage Compartment Door. Refer to DOOR REPLACEMENT -- IP STORAGE COMPARTMENT DOOR .

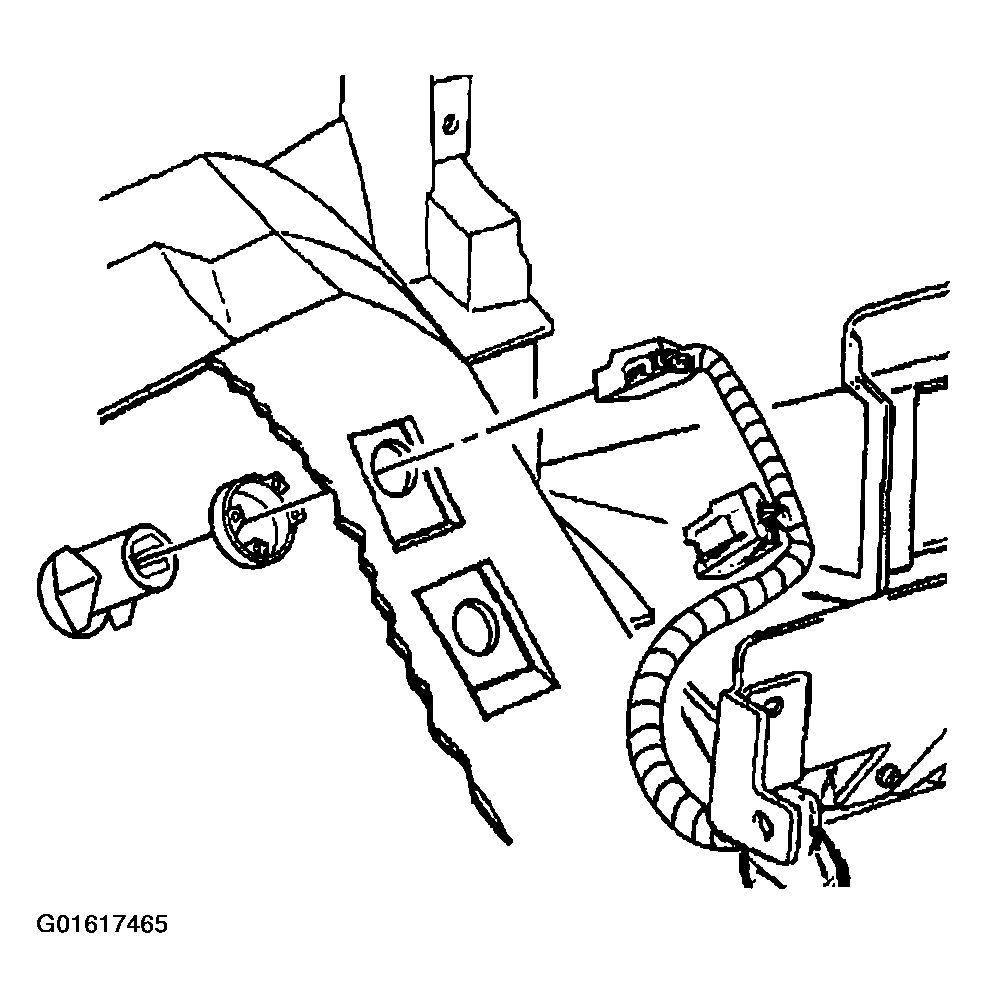

    Fig 1: Rear Compartment Lid Switch
    G01617465Courtesy of GENERAL MOTORS CORP.
