Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Remove the rear compartment lid latch. Refer to Latch Replacement - Rear Compartment Lid .
  3. Remove the screw (5) from the rear compartment lid ajar/lid lamp switch.
  4. Remove the electric connector.
  5. Remove the rear compartment lid ajar/lid lamp switch.

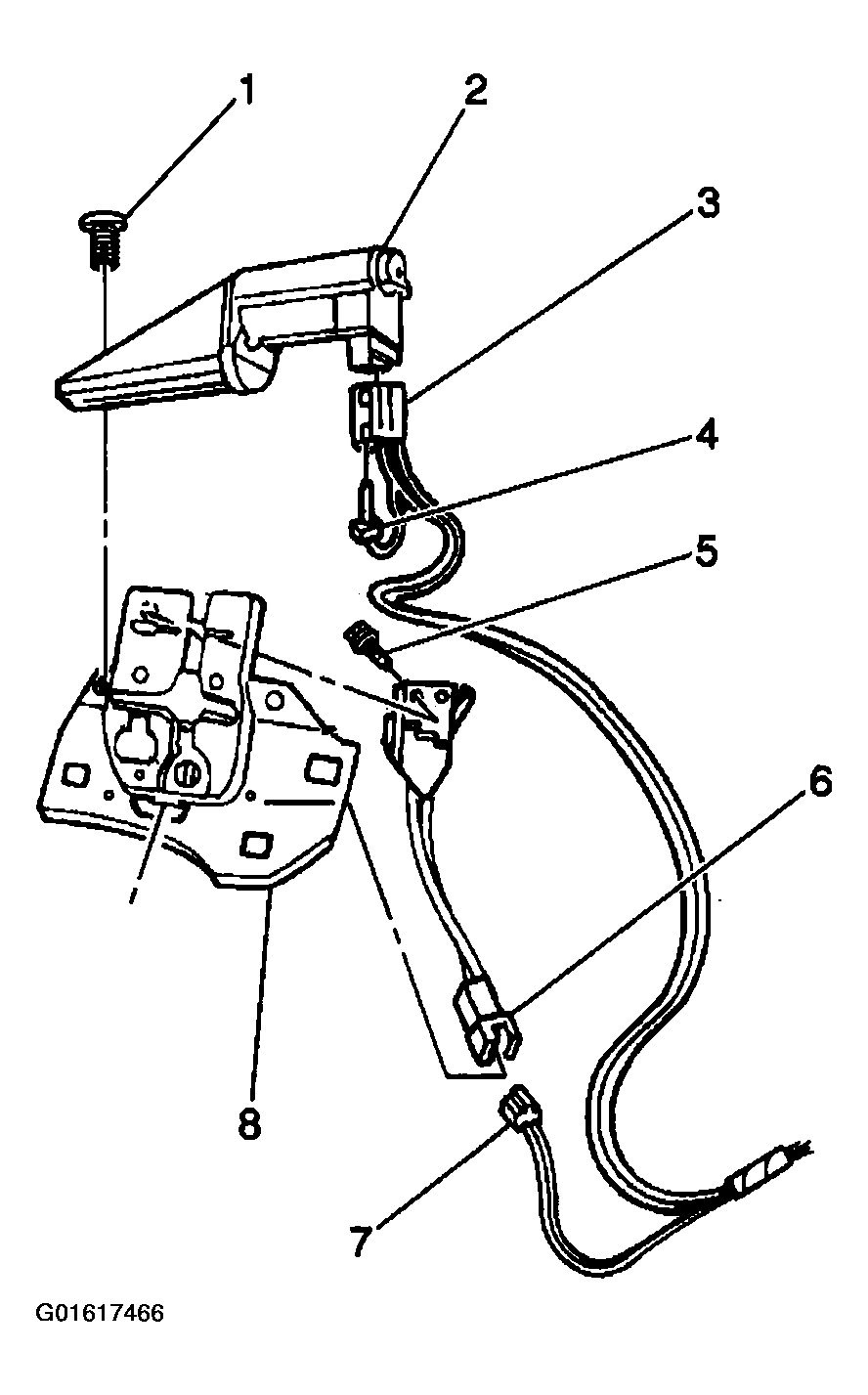

    Fig 1: Rear Compartment Lid Ajar Switch
    G01617466Courtesy of GENERAL MOTORS CORP.
