Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear compartment lid ajar switch to the rear compartment lid latch.
  2. Install the electric connector.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screw (5) to the rear compartment lid ajar/lid lamp switch.

    Tighten

    Tighten the rear compartment lid ajar switch screw to 5 N.m (44 lb in).

  4. Install the rear compartment lid latch. Refer to Latch Replacement - Rear Compartment Lid .
  5. Close the rear compartment.

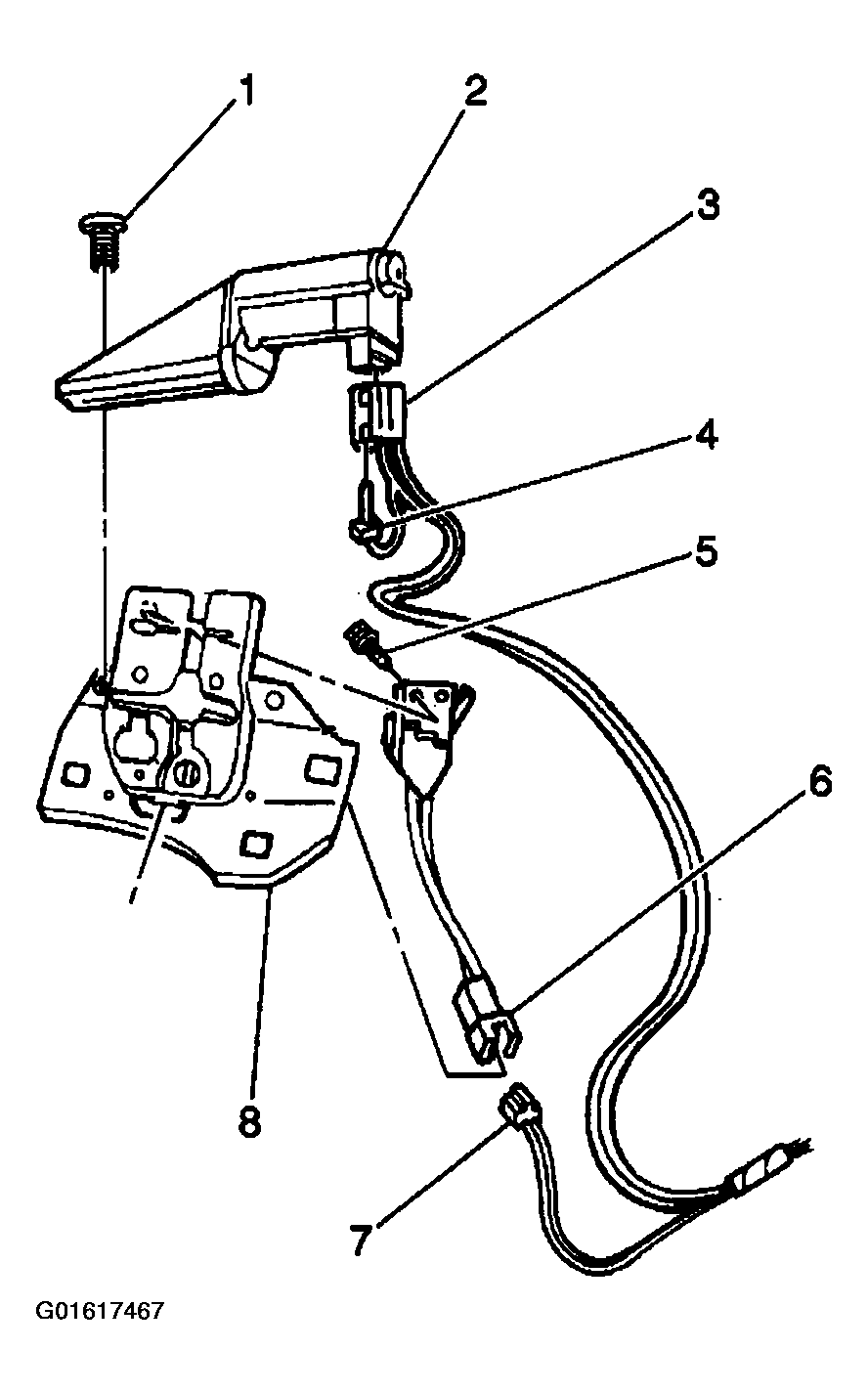

    Fig 1: Rear Compartment Lid Ajar Switch
    G01617467Courtesy of GENERAL MOTORS CORP.
