Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open rear compartment.
  2. Remove the rear bumper fascia. Refer to FASCIA REPLACEMENT -- REAR BUMPER .
  3. Pull back the rear compartment trim, right side as needed. Refer to Compartment Trim Panel Replacement - Rear .
  4. Use a small flat-bladed tool in order to release the snaps on the pressure relief valve at the two upper and two lower locations.
  5. Remove the pressure relief valve from the quarter panel.

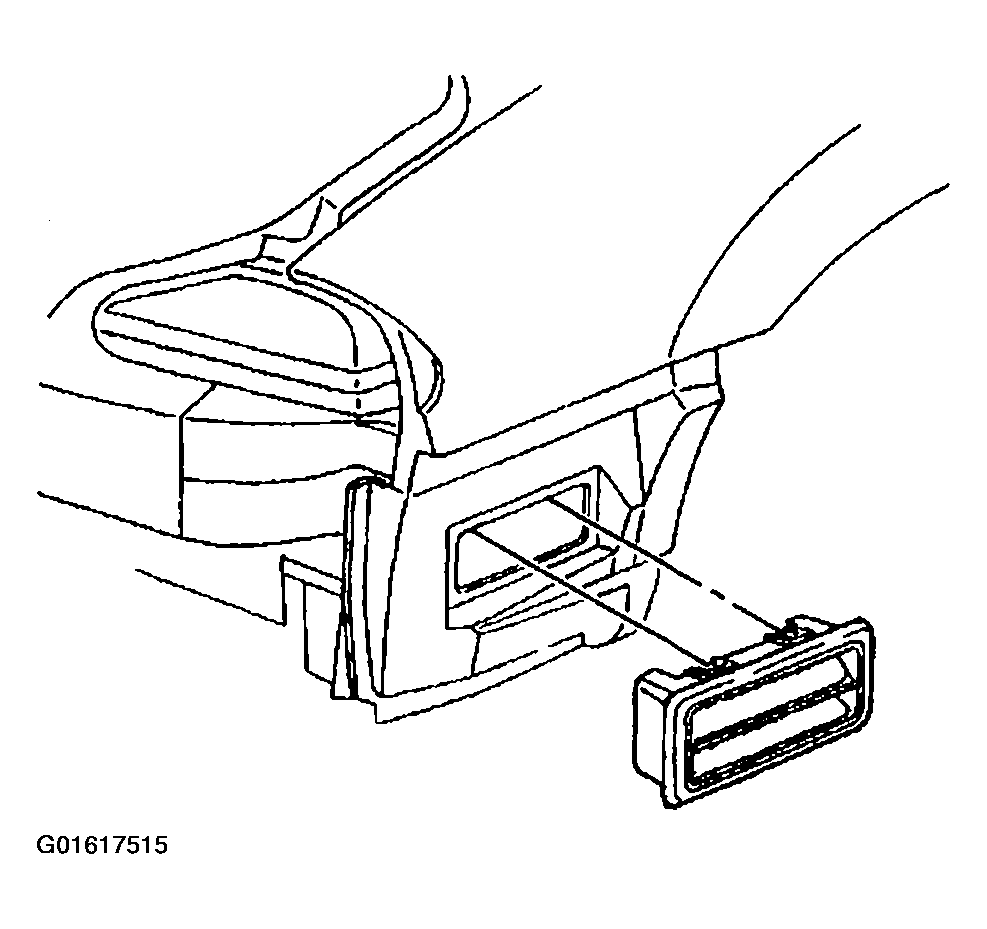

    Fig 1: Pressure Relief Valve
    G01617515Courtesy of GENERAL MOTORS CORP.
