Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear compartment lock cylinder and gasket to the rear compartment lid.
  2. Install the retainer to the rear compartment lock cylinder.
  3. Install a new rivet to the rear compartment lock cylinder retainer.
  4. Connect the rear compartment lock cylinder electrical connector.
  5. Close the rear compartment.

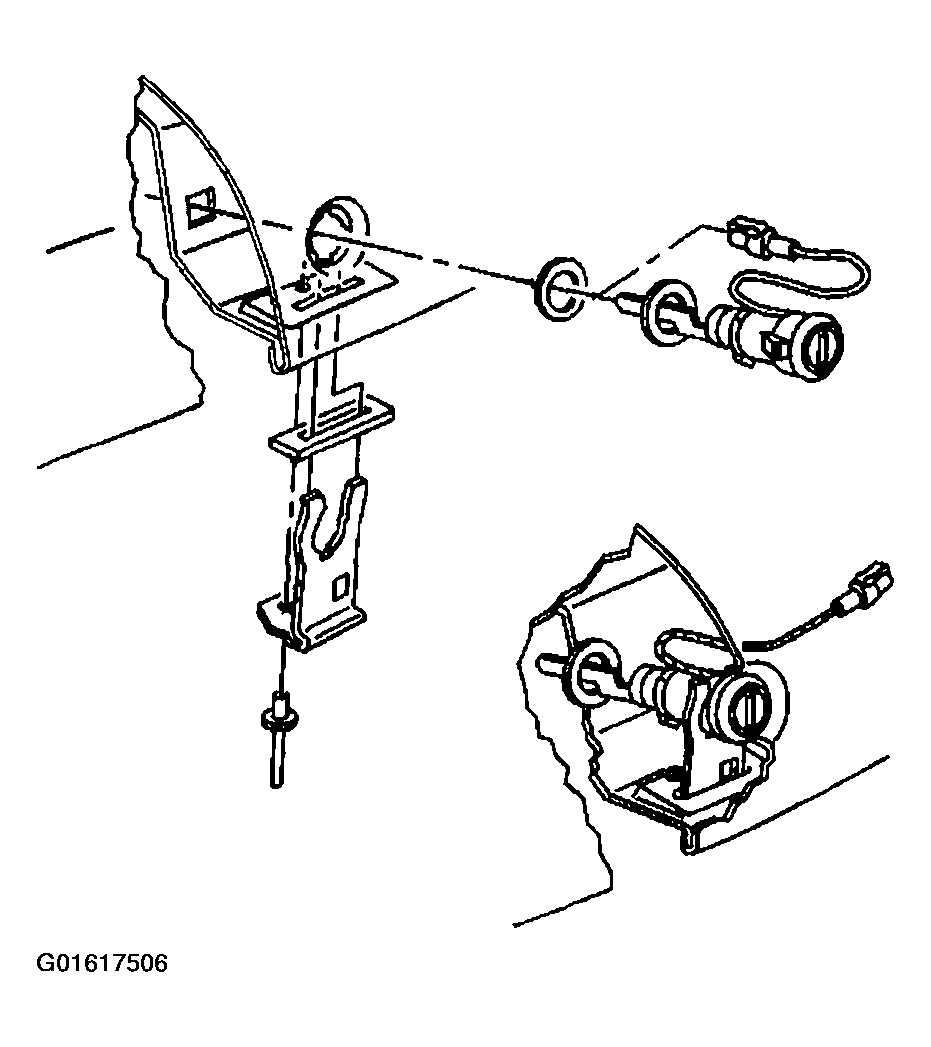

    Fig 1: Rear Compartment Lid Lock Cylinder
    G01617506Courtesy of GENERAL MOTORS CORP.
