Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the hinge to the alignment marks on the quarter panel.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the hinge to rear quarter bolts.

    Tighten

    Tighten the rear compartment hinge to rear quarter bolts to 25 N.m (18 lb ft).

  3. Install the rear compartment struts. Refer to Strut Replacement - Rear Compartment Lid .
  4. Install the rear compartment lid. Refer to Compartment Lid Replacement - Rear .

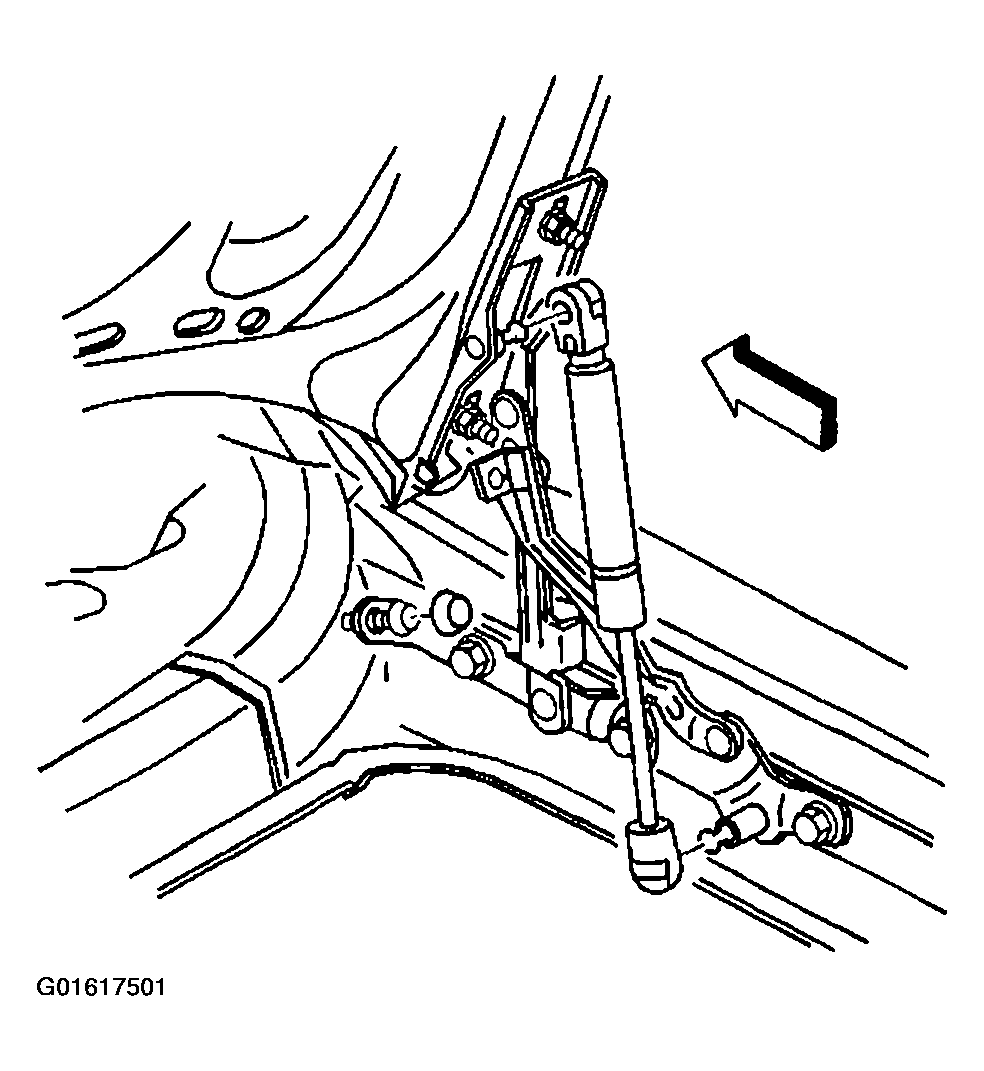

    Fig 1: Rear Compartment Lid Hinge
    G01617501Courtesy of GENERAL MOTORS CORP.
  5. Adjust the rear compartment lid height adjustment by using a wrench on the rear compartment hinge height adjustment bolt.
  6. Adjust the rear compartment lid height adjustment by turning the rear compartment lid bumper by hand.
  7. Close the rear compartment.
    Fig 2: Rear Compartment Lid Bumper
    G01617502Courtesy of GENERAL MOTORS CORP.
