Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fuel filler pocket to the quarter panel.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screws to the fuel filler pocket.

    Tighten

    Tighten the fuel filler pocket screws to 2 N.m (18 lb in).

  3. Install the bolts to the fuel filler pocket at the fuel filler neck.

    Tighten

    Tighten the fuel filler pocket to fuel filler neck bolts to 5 N.m (44 lb in).

  4. Install the rear bumper fascia splash shield. Refer to Rear Wheelhouse Liner Panel Replacement .
  5. Replace the fuel filler cap.
  6. Close the fuel filler door.

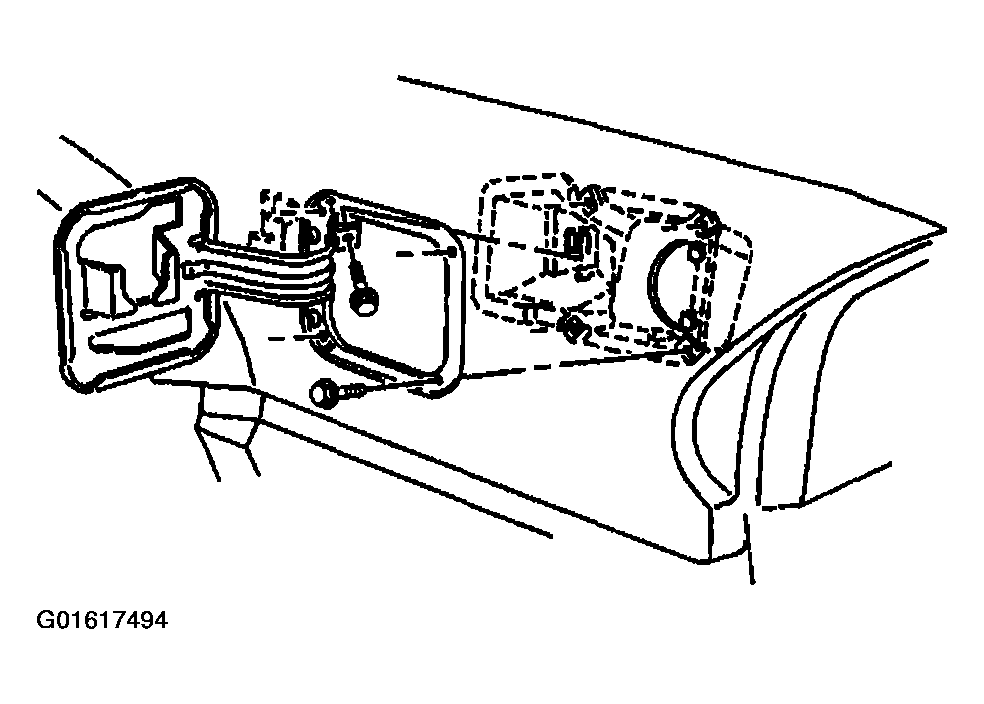

    Fig 1: Fuel Filler Pocket
    G01617494Courtesy of GENERAL MOTORS CORP.
